Product Details:
Payment & Shipping Terms:
|
| Tipper Material: | Q345B, T700, HARDOX | Axle: | FUWA, BPW, L1, Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Tipper Box: | 24m3, 30M3, 32M3, 35M3 |
| Loading Capacity: | 40tons, 45tons, 50tons 40MT, 45MT, 50MT | Front Axle: | 13 Tons, Or 16 Tons, Or Liftable |
| Suspension: | Front: Air Bag, Rear: Mechenical Suspension. | Tipper Body: | U-shape, Or Square Shape |
| Hydraulic System: | HYVA Brand | ||
| High Light: | 3 Axle Tipper Semi Trailer,45 Ton Tipper Semi Trailer,3 Axle Dumper Semi Trailer |
||

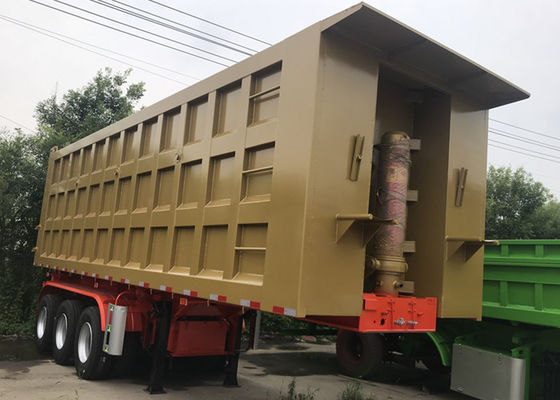

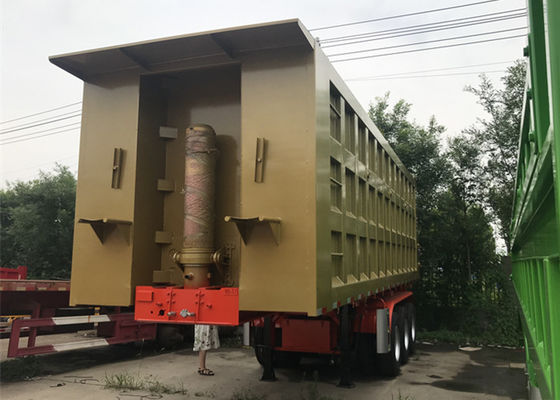

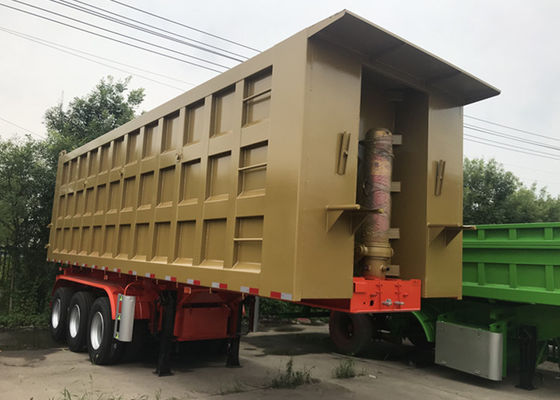

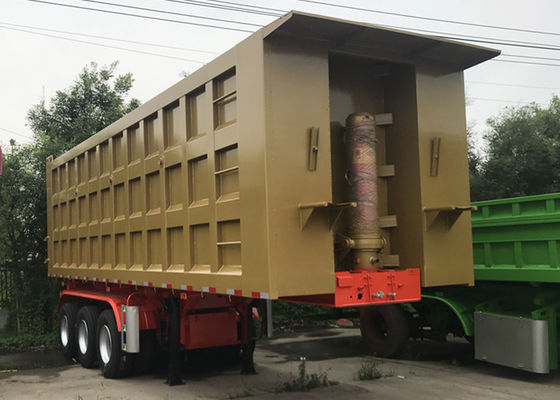

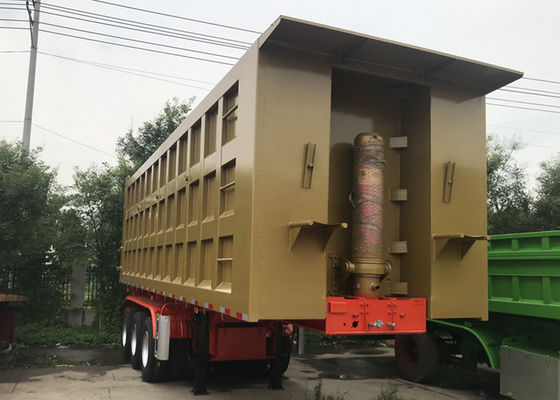

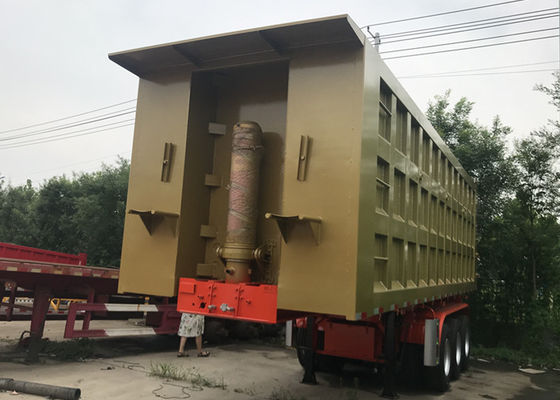

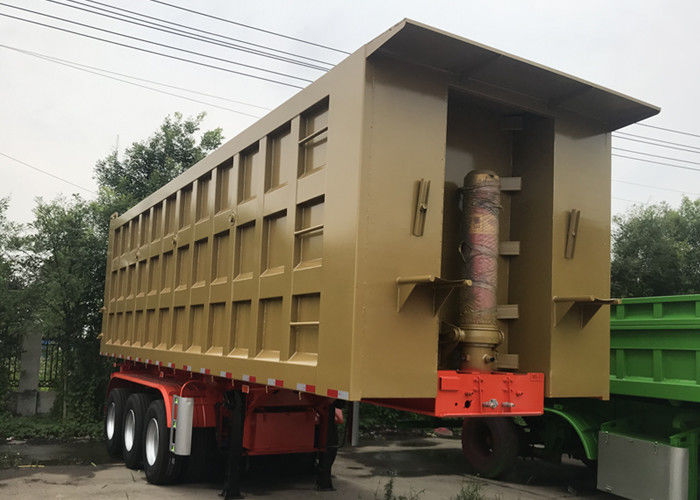

3 Axle 40 tons 45 tons 50 tons Dumper Dump Tipper Semi Trailer Semitrailer
Product Description
1. Purpose: It used for transporting stone, soil, sand, steel material and different kinds of cargo.
2. Main parts: Suspension, Tire and axles.
3. Axle: Most of our customer all choose BPW or FUWA brand axle.
4. Tire: Double tire or Single tire for optional.
5. Landing leg: JOST or FUWA brand.
6. Customized service: All products can be produced as per customer's request if there any specifized requirements.
product Specification
| Rear Dump Semi Trailer | |
| Overall dimensions | 11000*2500*3700mm |
| Tare weight | 14300kg |
| Payload | 60000kg |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 16mm,width140mm;Middle Flange 12mm;bottom flange18mm,width hight 500mm |
| Floor | 6mm |
| Side wall | 4mm height 2000mm |
| Cylinder | HYVA brand |
| Axle | 3 axle FUWA brand 16T |
| Suspension | Mechanical suspension |
| Leaf spring | 10pcs 16mm*90mm |
| Tire | 12R22.5 triangle brand 13pcs |
| Wheel rim | 9.0-22.5 13pcs |
| Kingpin | 2" or 3.5" bolt-in king pin |
| Landing gear | two-speed, manual operating ,heavy duty landing gear 28T |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | 4S/2M |
| Drawing | with |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | 2 spare tire carrier, one rocker handle,one shaft wrench |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
