Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Axle: | FUWA, BPW, L1, Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Oil Tanker: | 50M3, 50 Cubic Meters, 50000 LITERS |
| Compartment: | 2 3 4 5 6 Compartments | Front Axle: | 13 Tons, Or 16 Tons, Front Axle Liftable |
| Suspension: | Front: Air Bag, Rear: Mechenical Suspension. | Transport: | Fuel, Oil, Diesel, Gasoline, Petrol |
| Equipment: | 4 Axle, Front Suspension With Air Bag | Tank Capacity: | 40M3 45M3 46M3 48M3 50M3 55M3 60M3 |
| High Light: | 50000L Fuel Tanker Semi Trailer,4 Axle Fuel Tanker Semi Trailer,50000L Fuel Tank Semi Trailer |
||

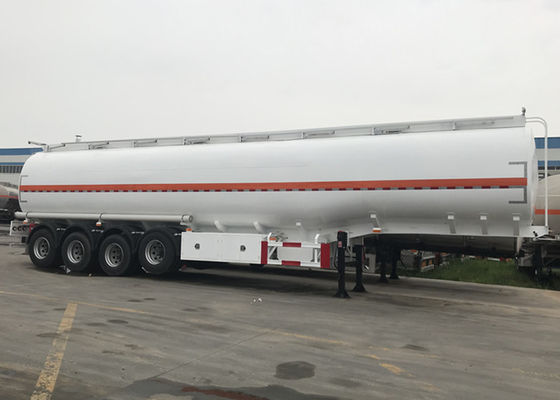

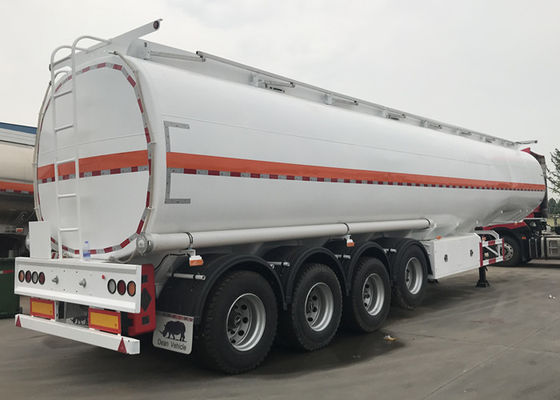

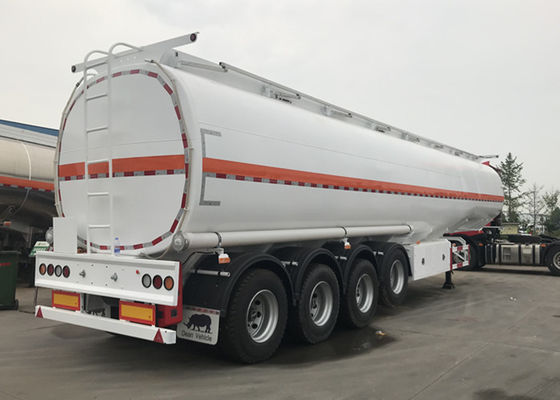

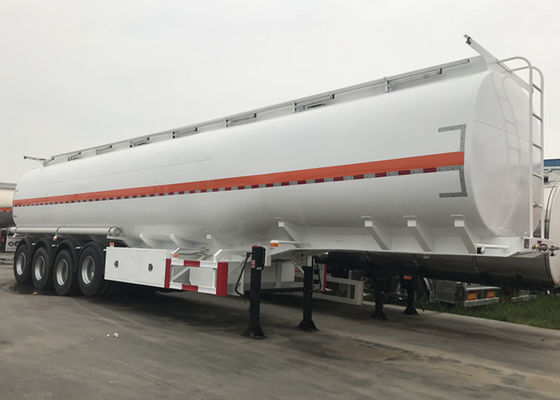

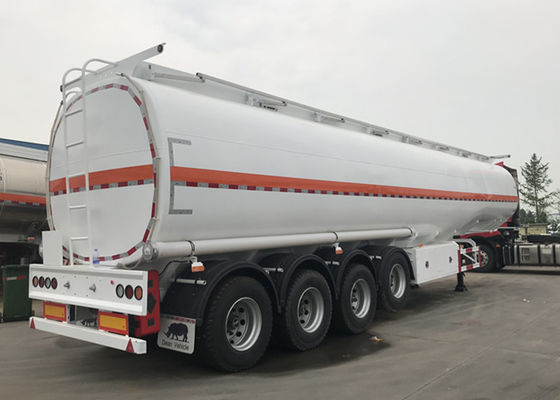

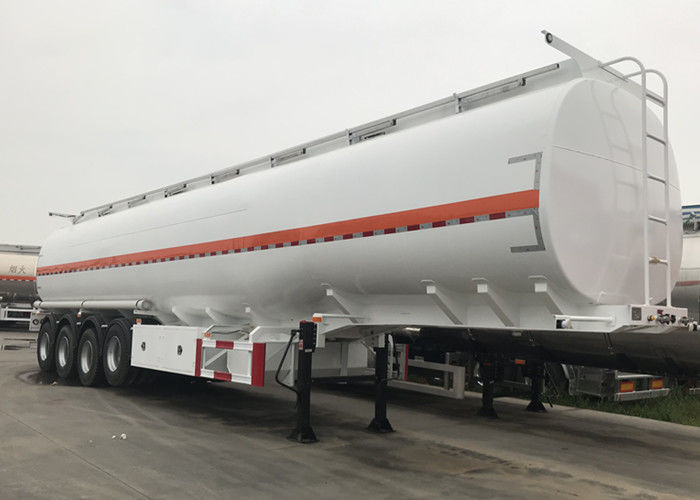

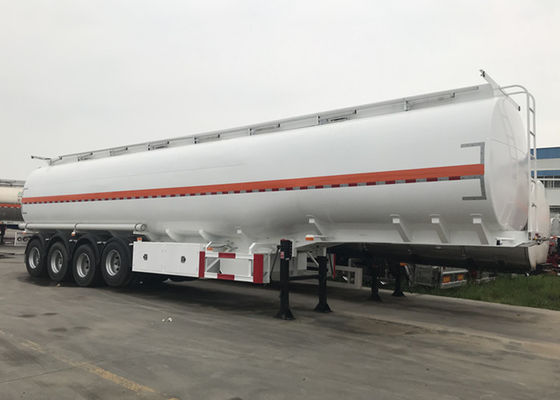

4 axle Front Axle Liftable 50CBM 50000L Fuel Oil Tank Tanker Semi Trailer Semitrailer
Description:
** Tank material could be carbon steel, stainless steel, alluminum...
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** Bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve...
** Tube or tubeless tyres, off-road single tyre for bad roads.
1. Purpose: It used for transporting all kinds of chemical liquid such as diesel and gasoline etc.
2. Main parts: Axle, Bottom valve, pipeline and liquid line.
3. Tank material for optional: Carbon steel, Stainless steel 304, Stainless steel 316, Stainless steel 316L and Aluminium alloyetc.
4. Available tank volume: 38CBM - 60CBM/2 Axles/3 Axles/4 Axles
5. Axle brand: China famous brand FUWA/China brand L1/Germany brand BPW.
product Specification
| Main Dimensions | ||
| Overall Length | 11240mm | |
| Overall Height | 2800mm | |
| Tare Weight | 11500KGS | |
| Loading Capacity | 42m3 | |
| Photo only for reference, final product can be made according to exact requirements | ||
| Tank Body | ||
| Shape | Mono block Cylinder | |
| Total Volume(m3) | 42CBM | |
| Tanker Body Material | 6mm steel / Q235 high tensile strength steel | |
| End plate | 6mm steel sheet/Q235 high tensile strength steel | |
| Manhole cover | Aluminum alloy API manhole cover, ∮500mm ,2 sets with 2 breather valve | |
| Bottom Valve | 1-2 sets of Aluminum API Pneumatic Bottom Valve | |
| Discharging valve | 2-4 set ∮100mm discharging valves | |
| Discharging Pipe | 4”rubber hose, 2 pcs, 6m long | |
| Chassis | ||
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | |
| Axle | 4 axles, Front Axle liftable | |
| BPW or FUWA 13 Ton | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| King Pin | JOST brand 2” bolt-in king pin | |
| Suspension | German design heavy duty mechanical suspension, Front with air bag | |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |
| Wheel rim | 8.25R22.5 wheel rim, 13 pieces | |
| Tire | 11R22.5 tubeless tire with one spare tire, 13 pieces | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
