Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Stainless Steel, Aluminum Alloy | Axle: | FUWA, BPW, L1, Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Tanker: | 40M3, 40 Cubic Meters, 40000 LITERS |
| Compartment: | 2 3 4 5 6 Compartments | Front Axle: | 13 Tons, Or 16 Tons, Front Axle Liftable |
| Suspension: | Front: Air Bag, Rear: Mechenical Suspension. | Transport: | Lubricating Oil ， Asphalt，Bitumen |
| Equipment: | Insulated Heated Layer | Tank Capacity: | 40M3 45M3 46M3 48M3 50M3 55M3 60M3 |
| High Light: | 40m3 Oil Tank Semi Trailer,25m3 Oil Tank Semi Trailer,25m3 Tri Axle Tanker Trailer |
||

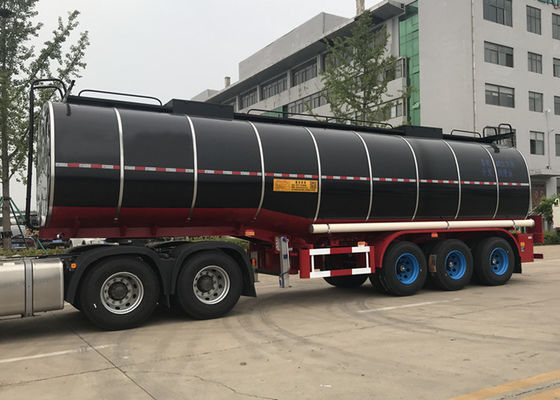

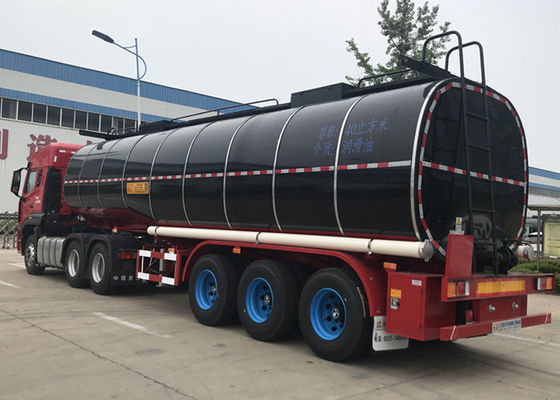

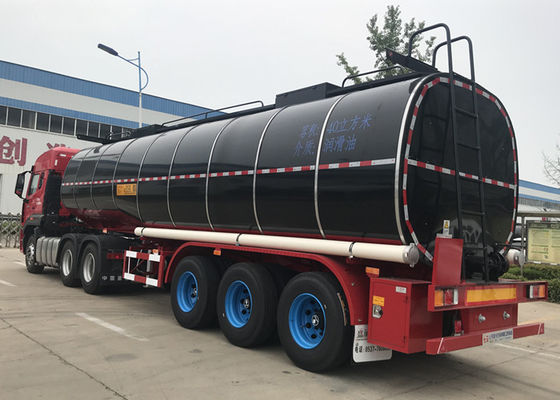

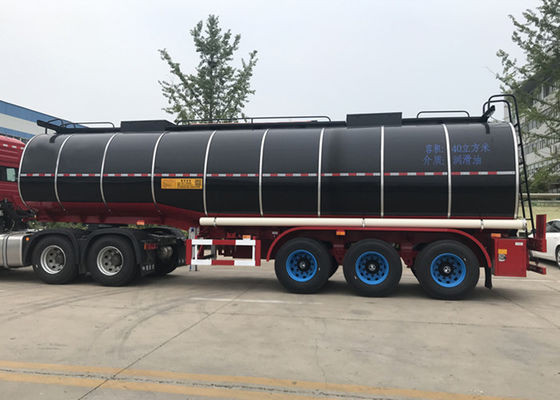

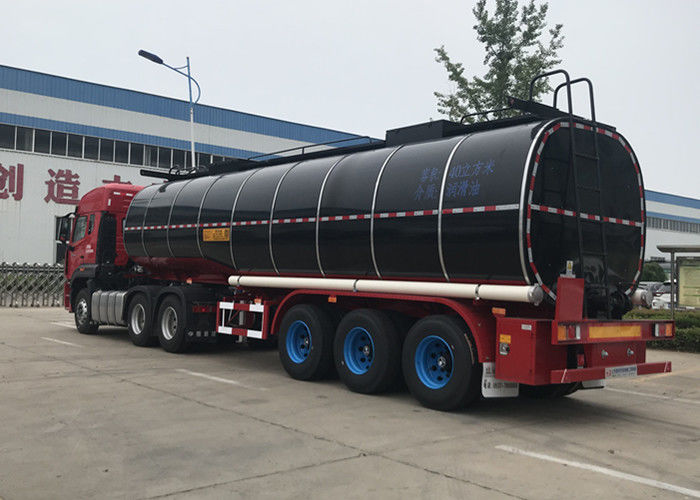

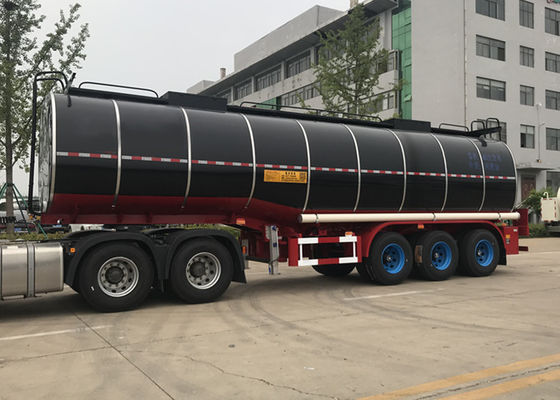

3 Axles 25m3 40m3 Insulated Heated Asphalt Lubricating oil Tank Semi Trailer
Description:
1. The tank body is made of 4mm or 6mm high-quality carbon steel according to national standards. The shape of the tank body is divided into oval or square round tanks, which can contain 1-4 kinds of oil products. Can also produce heating and heat preservation series tanks.
2, alcohol, chemical tanker made of high quality stainless steel at home and abroad, the thickness of 4 mm to 5 mm ..
3, all kinds of hydrochloric acid, sulfuric acid, lye tanker made of plastic, thickness of 12 mm to 22 mm ..
4. A plurality of anti-wave baffles are arranged in the tank body. High pressure gas leak test is adopted to ensure that the tank body has high strength, stable center of gravity and safe and stable vehicle transportation.
product Specification
| 3 Axles Insulated Heated Asphalt Bitumen Transportation Tank Semi Trailer | |
| Tank Body | |
| Shape | Optional(Round or Square) |
| Dimension | 12000mm×2490mm×3990mm(adjustable as your requirements) |
| Tare weight | About 8-12.8T |
| Total Volume | 25m³-60m³ |
| Tanker Body Material | 5mm or 6mm Q235 carbon steel |
| End Plate | 5mm or 6mm Q235 carbon steel |
| Manhole Cover | Cabon steel or Aluminum alloy API manhole cover. Diameter: 500mm |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inches |
| Compartments | 1-7 Optional |
| Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
| Cat Walk | With(Common model or special design) |
| Chassis | |
| Main Beam |
Welding design or Special design, connected by bolts and nuts. Material: Q345 carbon steel |
| Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
| Landing Gear | JOST(D200T)or China brand 28T(two speed) |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension(Germany or America type) or Air suspension |
| Leaf Spring | 90(W)mm×13(Thickness)mm×10(Layer) or 100mm×12mm×12 |
| Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber(TKL brand); 2 pieces of 45L air tanks |
| Rim | 9.00-22.5/8.00-20/8.5-20 |
| Tire | 12R22.5, 315/80R22.5, 11.00R20, 12.00R20 |
| ABS | Optional |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
