Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Product Name: | Fuel Oil Disel Gasoline Tank Tanker Truck Trailer |
|---|---|---|---|
| Drive Type: | 8X4 12 WHEELS 12 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 20tons, 30tons, 20T, 25T, 30TONS | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac |
| Tuck Type: | Oil Delivery Transport Truck, Oil Refueling Bowser | Other Equipment: | Charging/discharging Valves. API Manhole |
| Equipment: | With Oil & Gas Recycling System | ||
| High Light: | 3000L Fuel Tanker Truck,8x4 Fuel Tanker Truck,FAW Oil Tank Truck |
||

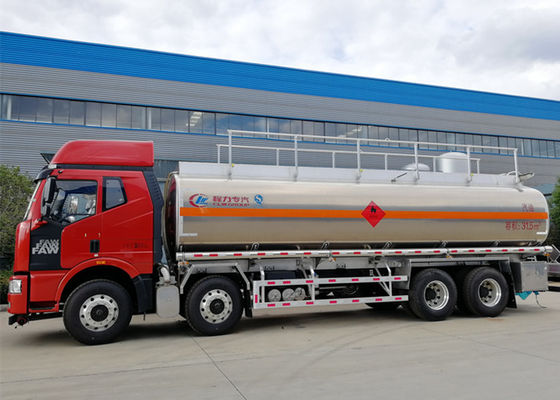

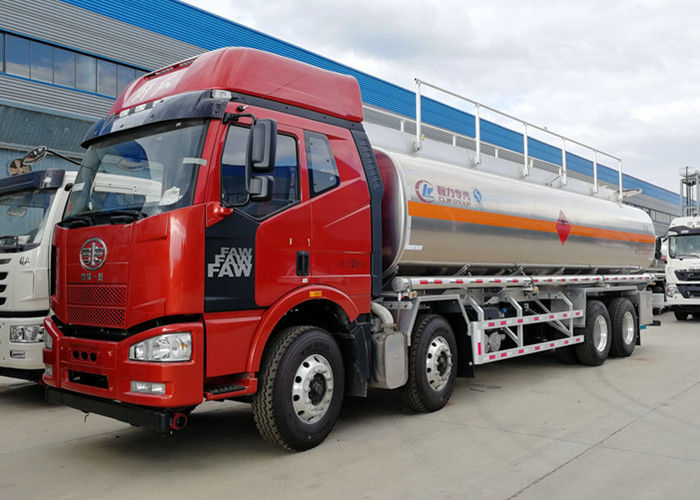

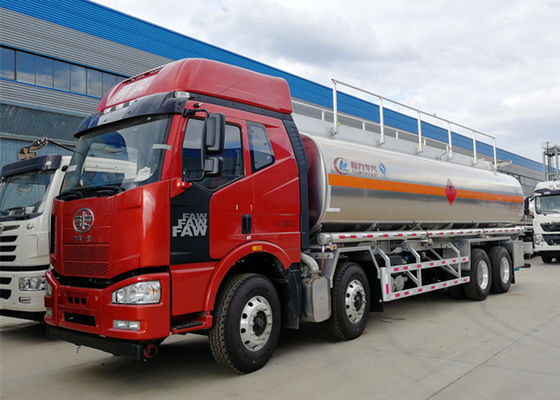

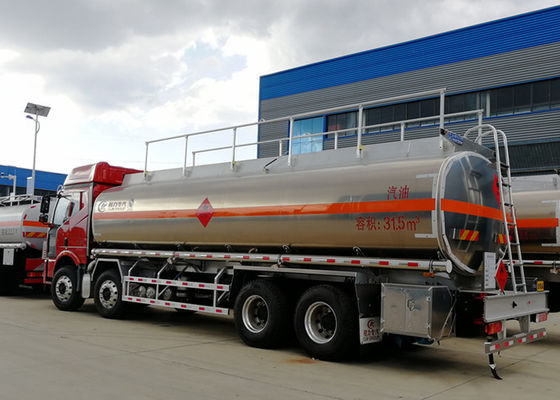

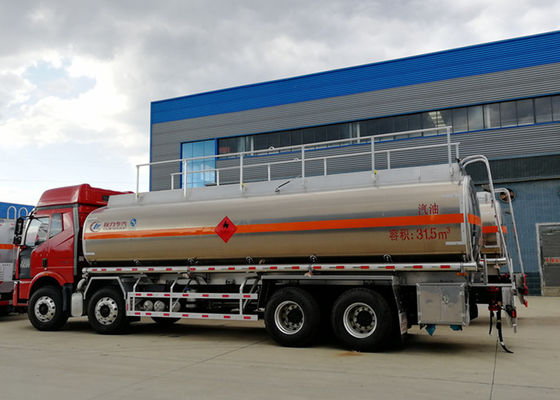

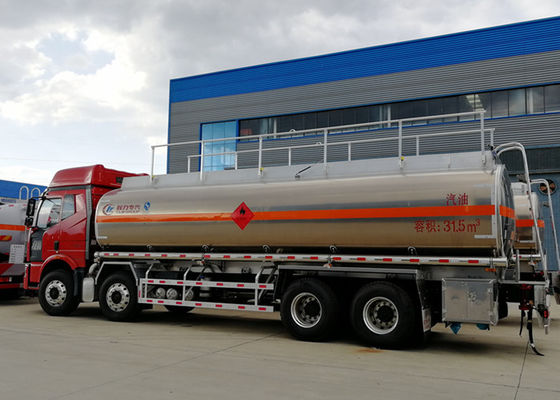

FAW 8x4 30000L 30CBM 30m3 Aluminum Alloy Fuel Tanker Oil Tank Truck with Fuel Bowser
Product Description
Description:
Oil tank truck: also known as mobile fuel truck, computer tax control fuel truck, oil tank truck, oil truck, oil transport truck, mainly used for oil Transportation and storage of derivatives (gasoline, diesel, crude oil, lubricating oil and coal tar). According to different purposes and use environment, there are a variety of fueling or oil transportation functions, with oil absorption, pump oil, a variety of oil dispensing, distribution and other functions. The special part of the oil truck is composed of a tank body, a power take-off, a drive shaft, a gear oil pump, a pipe network system and the like. The pipe network system consists of an oil pump, a three-way four-position ball valve, a two-way ball valve, a strainer, and a pipe.
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
| General Technical Parameters | ||||
| Overall Dimension | 11760x2500x3500(mm) | Gross Vehicle Weight | 32000(kg) | |
| Curb Weight | 10805(kg) | Loading Weight | 21000(kg) | |
| Chassis Specification | ||||
| Chassis Parameters | Chassis Brand | FAW | ||
| Cabin | Row and half, Left Hand Driving | |||
| Engine | Power | 280HP | ||
| Emission standard | EURO III | |||
| Displacement | 7.79L | |||
| Fuel type | Diesel | |||
| Gearbox | 9 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 7T/18T | |||
| Wheel Base | 1950+4559+1350(mm) | |||
| Brake System | Pneumatic | |||
| Steering Gear | Power Assistant | |||
| Tire | 11.00R20, 12 Pieces | |||
| Maximum speed | 80(km/h) | |||
| Tank Body | ||||
| Shape | Monoblock Cylinder | |||
| Total Volume(m3) | 32m3 | |||
| Tanker Body Material | 5mm carbon steel | |||
| Manhole Cover | ∮500mm ,1 set with 1 breather valve | |||
| Bottom Valve | 1 set | |||
| Discharging Valve | 1 set ∮80mm discharging valve | |||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |||
| Accessories | One standard tool box | |||
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
