Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel | Product Name: | Fuel Oil Disel Gasoline Transport Tank Tanker Truck Trailer |
|---|---|---|---|
| Drive Type: | 8X4 12 WHEELS 12 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 20tons, 30tons, 20T, 25T, 30TONS | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac |
| Tuck Type: | Oil Delivery Transport Truck, Oil Refueling Bowser | Other Equipment: | Charging/discharging Valves. API Manhole |
| Equipment: | With Oil & Gas Recycling System | Compartment: | 2 3 4 5 Compartments As Request |
| High Light: | 25m3 Oil Transport Truck,8x4 Oil Transport Truck,FAW Oil Tanker Truck |
||

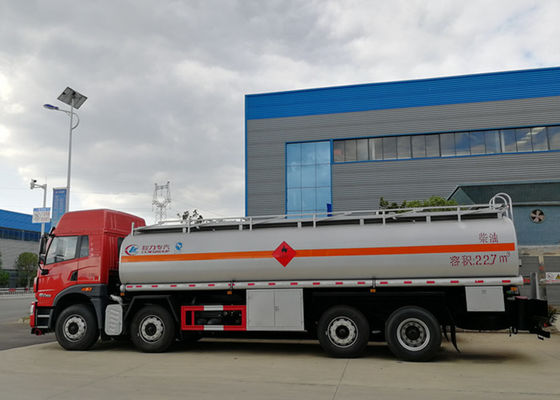

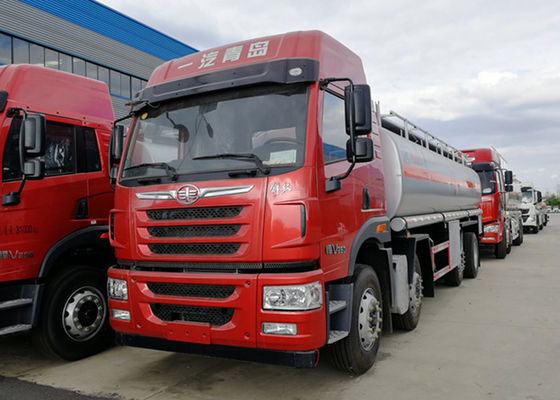

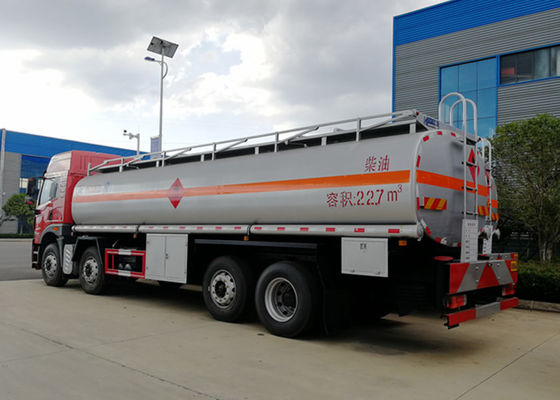

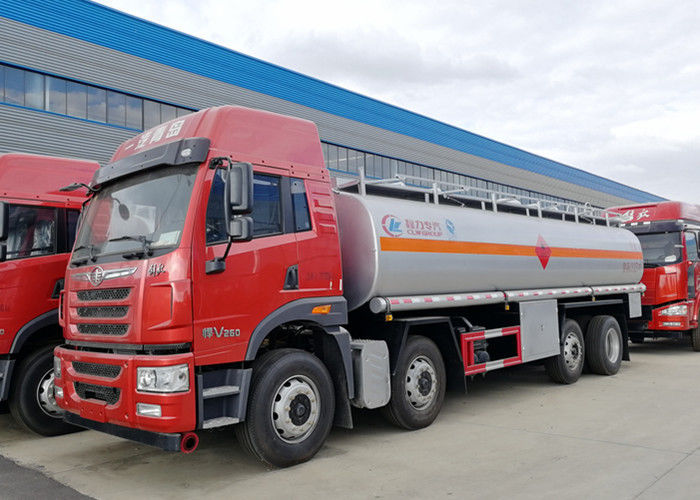

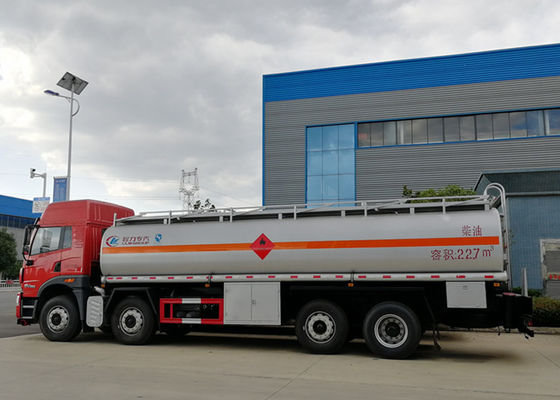

FAW 8x4 25000L 25m3 Carbon Steel Fuel Delivery Tanker Oil Transport Tank Truck
Description:
I. Product Description:
The oil delivery truck is also called Mobile Fuel Truck, oil loading truck, oil refulling truck, etc. It is mainly used for storage and transport of oil.
The oil delivery truck can equipped with computer fuel dispenser. It could be used as the mobile filling station.
According to different needs, oil delivery truck is used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places which is without filling station.Actually it can be called as the mobile filling station.
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
| Item | Unit | Description | ||||||||
| Dimension | mm | 11995*2500*3600 | ||||||||
| Sample Tank Dimension | mm | 9200*2450*1780 | ||||||||
| capacity | 31600 L | |||||||||
| material | Carbon Steel, 6 mm thick | |||||||||
| Option~ Stainless steel, Aluminum steel | ||||||||||
| Curb Weight | kg | 12605 | ||||||||
| G.V.W | kg | 32000 | ||||||||
| Wheel Base | mm | 1950+4550+1350 | ||||||||
| F/R track base | mm | 1950 / 1950 / 1847 | ||||||||
| F/R Axle-Load | Kg | 6500 / 6500 / 13000 /13000 | ||||||||
| Type | Steel Spring Type | |||||||||
| Approach/Departure angle | . | 18 / 21 | ||||||||
| Traction system | Type | 8*4 | ||||||||
| Max speed | Km/h | 90 | ||||||||
| Tire Specification/Number | Model | 12.00-20 / 12 Units+1 Spare | ||||||||
| Engine | Model | BF6M1013-28 | ||||||||
| Emission/Kw | 7146 cc, 195 Kw / 2300 r | |||||||||
| Horse Power | 280 Hp | |||||||||
| Power | 1050 N.m - 14000 r/min | |||||||||
| Type | Diesel, 6 cylinder, turbocharge, water cooling | |||||||||
| Brand | FAW brand Engine | |||||||||
| Gear box | model | 9 F&1R, Manual | ||||||||
| Electronic | V | 24 | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Reversable, Manual | |||||||||
| Steering | Type | Powering | ||||||||
| Installing | LHD or RHD | |||||||||
| Air Condition | Yes | Radio, CD. | ||||||||
| Equipment | Installed | Top Installing human foldable ladder, Rear climbing ladder, Top Aluminum type Human port diameter 450mm. Bottom Output and input port with ball valve,Bottom urgent cut off valve, Tool box. China manufacturer standard |
||||||||
| Option | Refueling device, fuel dispenser | |||||||||
| Option | API Standard | |||||||||
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
