Product Details:
Payment & Shipping Terms:
|
| Capacity: | 8t,8ton,8tons10t,10ton,10tons,12t,12ton,12tons | Tank Material: | Stainless Steel Q304-2B |
|---|---|---|---|
| Insulation Layer: | Three Layers | Spraying Width: | 4600+1350mm |
| Asphalt Spraying Volume: | 0.25~3.5L/m2 | Working Speed: | 1.5~7km/h |
| No. Of Spraying Nozzles: | 38 | Tank Volume: | 12cbm,12000liters |
| High Light: | Q304-2B Stainless Steel Asphalt Paving Truck,HOWO Asphalt Paving Truck,6x4 Asphalt Distributor Truck |
||
HOWO 6X4 Stainless Steel Q304-2B Asphalt Paving Truck
Description
1. It can spread a variety of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt, etc.
2. The width of the sprinkler is freely adjustable and each nozzle can be individually controlled.
3. Excellent insulation performance, average temperature drop ≤20°C/8h.
4. Intelligent control system for precise control of the amount of spreading. Manual and automatic two sets of operating systems, complete the sprinkling in the cab, the construction can be completed by one person only.
Specifications
| Item | Specification | Remark |
| Dimension(mm) | 10530*2500*3400 | L*W*H |
| Maximum Capacity (m3) | 12 | |
| Curb Weight (kg) | 7990 | |
| Payload (kg) | 15000 | |
| Gross Mass(kg) | 23000 | |
| Wheel base(mm) | 4600+1350 | |
| Working Temperature (°C) | 230 | |
| Working Pressure (Mpa) | 0.09 | |
| Temperature Lapse Rate (°C/h) | 2 | Feeding Temperature≥160°C |
| Asphalt Pump Displacement (L/min) | 500 | |
| Application Width (mm) | 0~6000 | 38 pcs Jet Nozzle |
| Ground Clearance of Distributing Bar (mm) | 200~450 | |
| Application Ration(L/ m2) | 0.3 ~3 | |
| Burner | 40G20 | |
| Hydraulic Pump | CBN-F450-ALPL | |
| Radial Plunger Motor | 1NM05-60 | |
| Model of the Chassis | ZZ1167G4 | HOWO |
| Model of the Engine | YC4E160-33 | |
| Maximum Power of the Engine (Kw) | 247 | |
| Passengers Capacity (person) | 3 | |
| Approach Angle (º) | 22 | |
| Departure Angle(º) | 13 | |
| Maximum Running Speed (Km/h) | 95 |

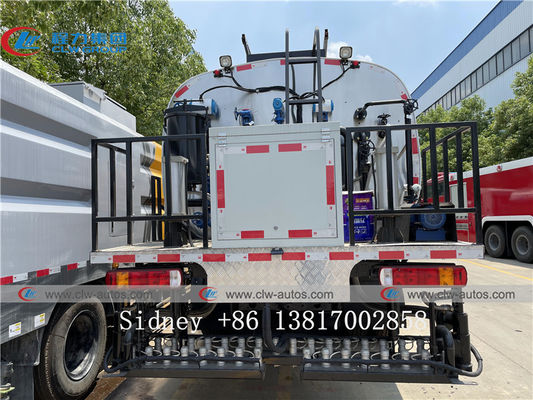

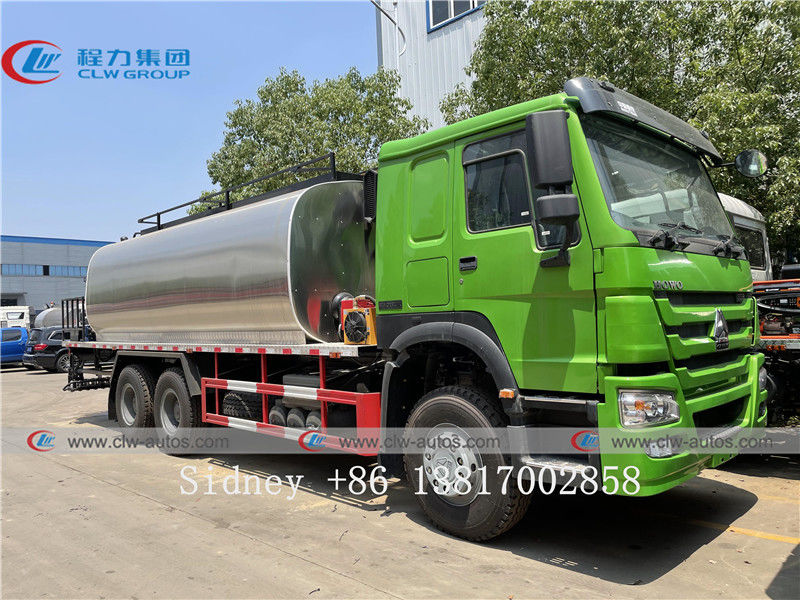

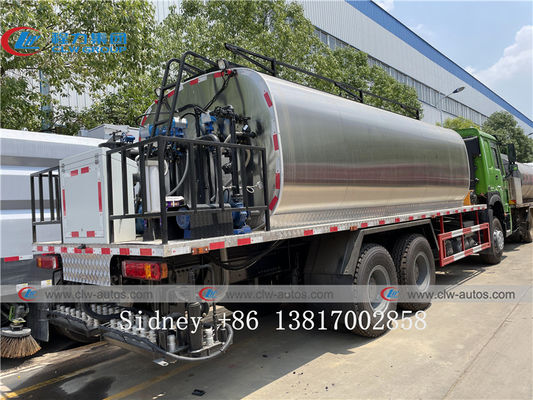

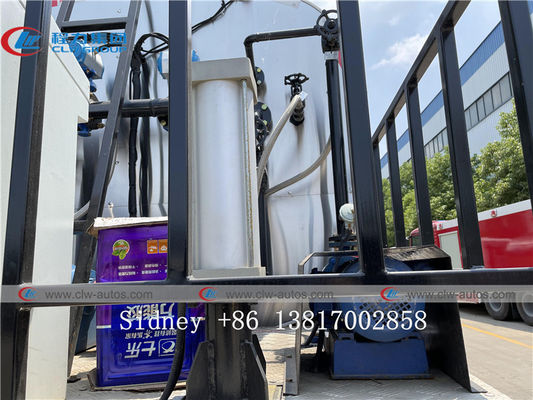

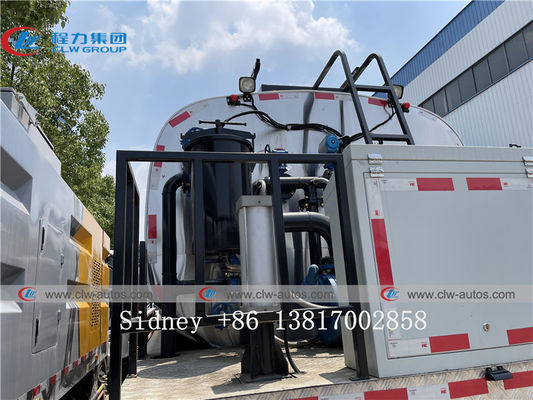

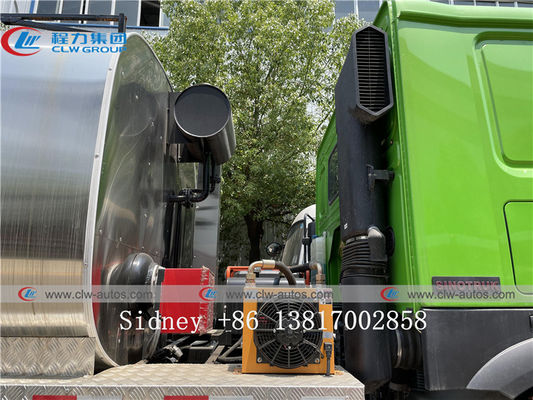

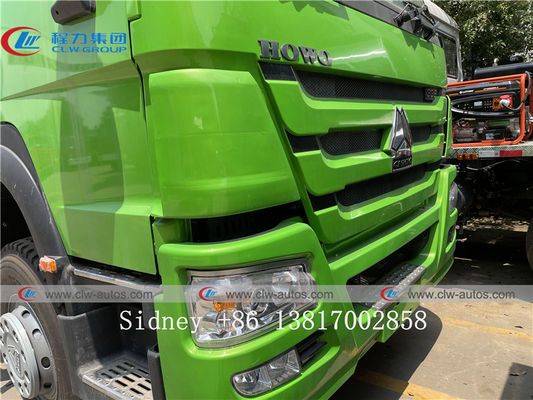

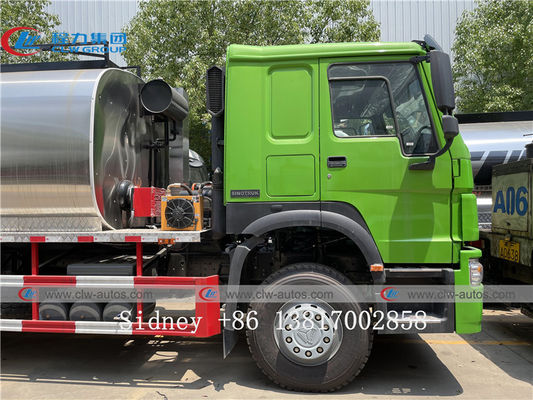

Reference Pictures
Main Structure Diagram
Working Scene
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
