| Dimension: | 22000*3000*1550mm | Axle: | FUWA, BPW, L1, Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Nos. Of Alxe: | 3 Axle, 4 Axle, 5 Axle |
| Suspension: | Front: Air Bag, Rear: Mechenical Suspension. | Length: | 16 Meters |
| Landing Gear: | JOST Brand | Loading Capacity: | 60tons, 50tons, 60 Tons, 50 Tons. |
| Function: | Extendable | Deck Thickness: | 3mm, 5mm. |
| High Light: | 60T Flatbed Semi Trailer,100T Flatbed Semi Trailer,100T Semi Truck Flatbed Trailer |
||

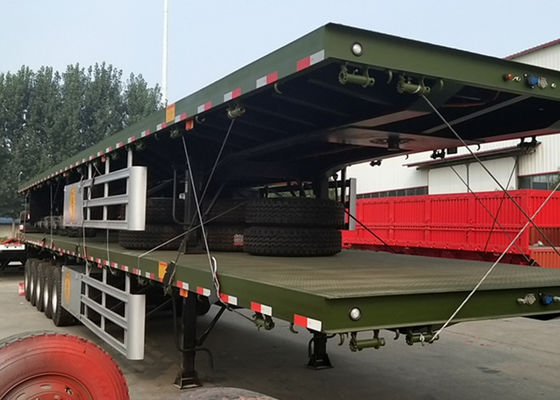

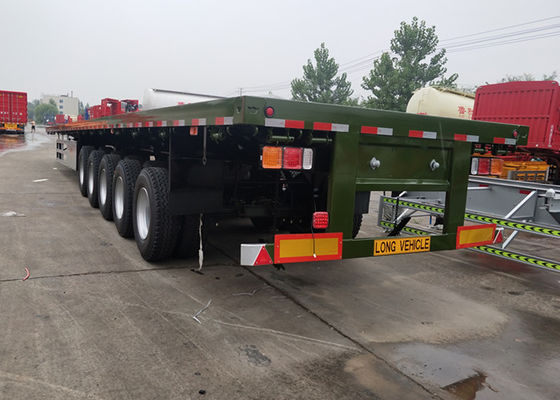

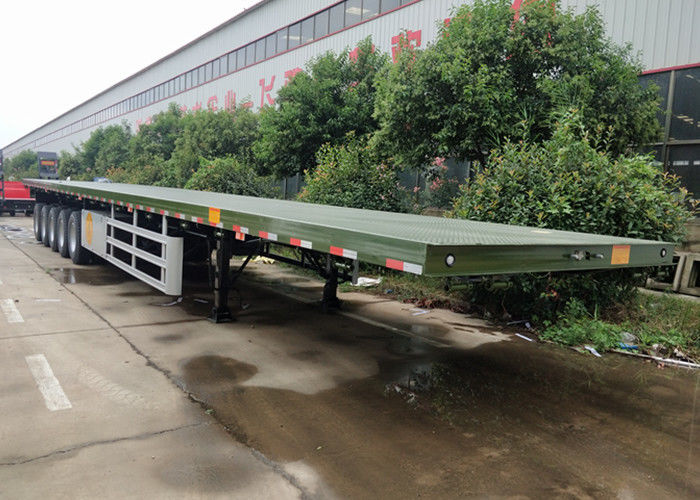

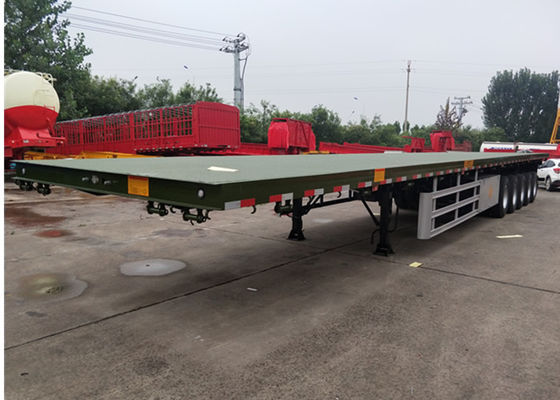

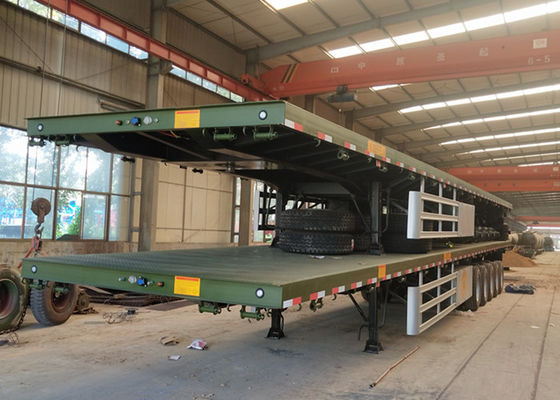

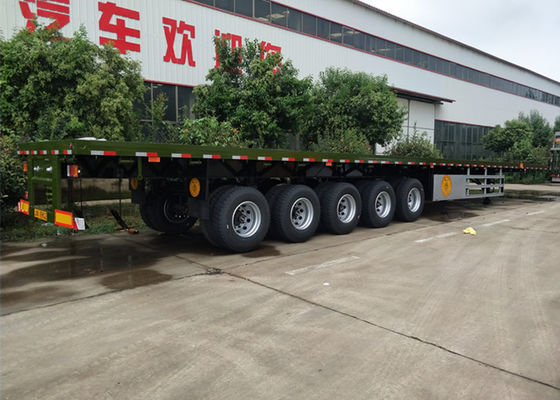

5 Axle 60T 100T Container Loading Plat Boy Platform Flatbed Semi Trailer
Description:
Container Flatbed Semi Trailer, 40ft is the most popular model. It is designed for carrying 40ft container, 20ft container and other dry bulk cargo. In general, the flatbed trailer suit for carrying loads 40 ton~60 tons weight .
According to the length, we can also offer the 45ft 48ft 52ft, 2 axles/3 axles/4 axles/5 axle, the color can also be customized.
| 3 axle flatbed semi trailer | ||||
| Tare Weight | 7700kg | |||
| Overall Length | 12400mm | |||
| Overall Width | 2480mm | |||
| Payload | 45000kg | |||
| Photo for reference. Final products can be made according to exact requirements | ||||
| SPECIFICATIONS | ||||
| I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | |||
| Axle | 3 axles | |||
| BPW brand 13 ton | ||||
| Suspension | Heavy duty mechanical suspension | |||
| Floor | 3mm checker plate | |||
| Leaf Spring | L1 brand air suspension, Air bag. | |||
| King Pin | JOST brand 2” Bolt-in King Pin | |||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||
| Wheel Rim | 11.75-22.5 steel wheel rim, 7 pieces including one spare | |||
| Tire | 385/65R22.5 tubeless tire, 7 pieces including one spare tire. | |||
| Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | |||
| Spare Tire | One set of spare tire including a carrier | |||
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |||
| Accessories | One standard tool box | |||
Heavy Duty landing gears:
As per the capacity, there are 5ton 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.
As per the gearbox, there are both Gearbox inside and Gearbox outside type.
As per the operation, there are both Single-Side Operation and Double-Side Operation type.
As per the Sand Shoe, there are T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.
90# 3.5'' trailer welding king pin
We can provide several model with different specifications.
certification:ISO9001-2000
90# 3.5'' trailer bolt connecting king pin
1. specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. high quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. high performance premiun non-asbestos brake linings, extend service life
4. easy for ABS installation
5. camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. new tight fit hub cap have O rings, high property for sealing
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs. Computer-operated vents on the air springs, suspension sensors, and an on board air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
