Product Details:
Payment & Shipping Terms:
|
| Dimension: | 40ft, Or 45ft | Axle: | FUWA, BPW, L1, HJ Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Nos. Of Alxe: | 3 Axle, 4 Axle, 5 Axle |
| Suspension: | Mechanical Suspension Or Air Suspension | Length: | 13 Meters |
| Landing Gear: | JOST Brand | Loading Capacity: | 60tons, 50tons, 60 Tons, 50 Tons. 60MT, 50MT |
| Deck Thickness: | 3mm, 5mm. | ||
| High Light: | 45FT Drop Side Trailer,60000kg Payload Drop Side Trailer,45FT Drop Side Truck |
||

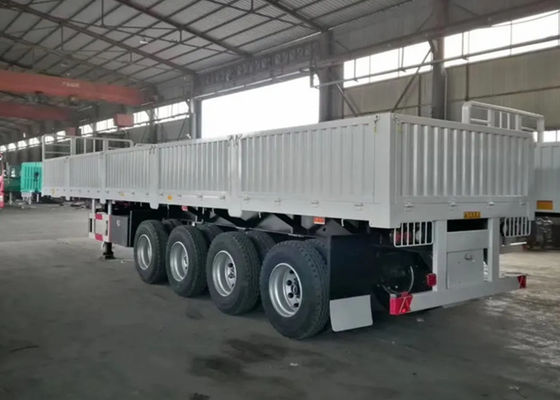

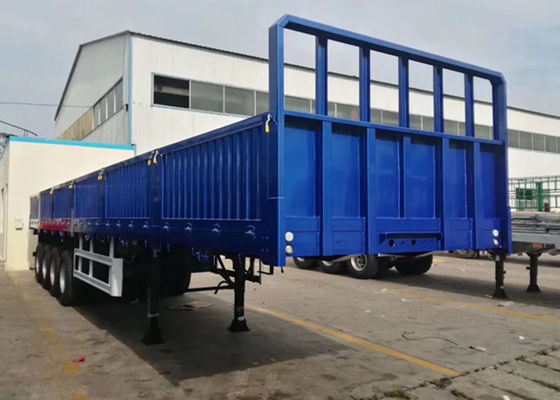

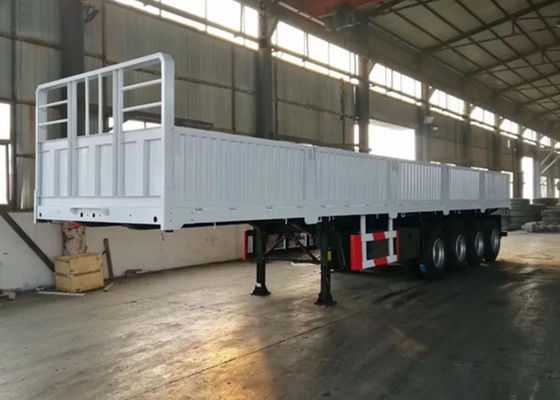

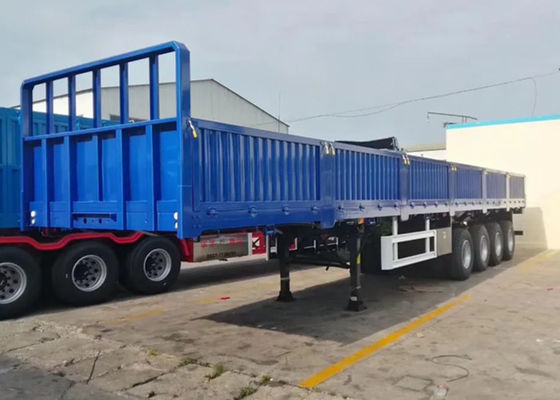

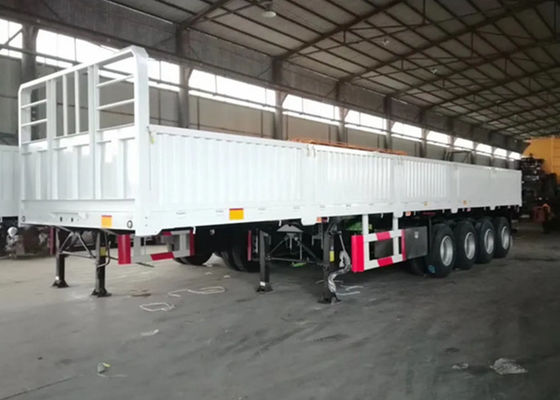

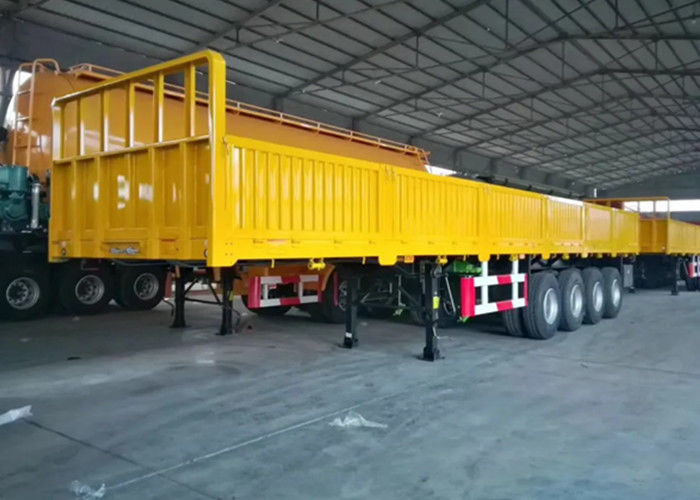

45FT 4 Axle Side Wall/Fence/Sidewall/dropside Drop Side Trailer
Description:
Side wall cargo semi trailer, solution for container hauling and bulk cargo transporting.
Characteristics :
> Variety of Sizes - 20ft, 40ft, 45ft, 48ft, 53ft, etc, side wall height optional.
> Light Weight - Light tare weight with strong loading capacity.
> Perfect Welding - Automatic welding of main beam guarantee stability and durability.
> Modern Transportation Accessories - spare tire carriers, water tank, fuel tank, etc.
| DIMENSIONS | |
| Tare Weight | 7500kg |
| Payload | 60000kg |
| Total Weight | 67500kg |
| Overall Length | 12500mm |
| Overall Width | 2490mm |
| Overall Height | 1470mm |
| Wheel Track | 1840mm |
| Wheelbase | 8500mm+1310mm+1310mm |
| STANDARD SPECIFICATION | |
| Main Frame | Heavy duty and extra durability designed; high tensile steel Q345B,welded by automatic Submerged-Arc processes 500mm Height I beam, Top Flange 14mm,width 140mm; Middle Flange 6/8/10mm ; Bottom Flange 16mm,width 140mm,Side Channel 14#/16#/ 18#20# height. |
| Floor | Checkered plate 3/5mm thickness |
| Axle | Four Units of factory brand/FUWA/BPW brand 13/16Ton Axle |
| Suspension | One couple of Tri-axle Mechanical/airbag Suspension |
| Leaf Spring | Eight sets of 10-pieces 13X90mm Leaf Spring |
| King Pin | One unit of 2'/3.5' SAE standard welded/bolted in Kingpin |
| Landing Gear | Two-speed , manual operating, 28 ton heavy duty Landing Gear |
| Wheel Rim | 16+1 units of 9.0-22.5 Wheel Rim(with one spare rim) |
| Tyre | 16+1 units of 12R22.5 factory brand/ Triangle brand Radial tubeless Tyre (with one spare tyre) |
| Side board/dropside height | Total side board/dropside height 0.6/0.8/1.0/1.2/1.5 meter |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
| Pneumatic Braking System | A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; Two units of RE 6 relay valve; Six units of T30/30 spring brake chamber; two units of 45L air tanks; two units of standard copper air-connector. |
| Electrical System | One unit of 24V 7-pin ISO 1185 standard socket; Tail lamp with turn signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable. |
| Painting | Sand blasting processing on rust - proof protection. One coat of anti-corrosive primer Two coats of finish urethane paint Color as customer choice |
| Accessory | One standard tool box and standard trailer tools |
Heavy Duty landing gears:
As per the capacity, there are 5ton 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.
As per the gearbox, there are both Gearbox inside and Gearbox outside type.
As per the operation, there are both Single-Side Operation and Double-Side Operation type.
As per the Sand Shoe, there are T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.
90# 3.5'' trailer welding king pin
We can provide several model with different specifications.
certification:ISO9001-2000
90# 3.5'' trailer bolt connecting king pin
1. specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. high quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. high performance premiun non-asbestos brake linings, extend service life
4. easy for ABS installation
5. camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. new tight fit hub cap have O rings, high property for sealing
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs. Computer-operated vents on the air springs, suspension sensors, and an on board air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
