Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | FAW, Dongfeng, Foton HOWO, Isuzu, Etc | Drive Type: | 6X2, 10 Wheels |
|---|---|---|---|
| Steering: | LHD,RHD | Engine: | Diesel,195hp |
| Tank Volume: | 15000liters,15cbm,15cbm,15000liters | Capacity: | 6ton 6t 8ton 8t |
| Tank Material: | Stainless Steel Q304-2B | Insulation Layer: | 80mm PU Foaming |
| Out Tank Material: | 2mm 201 | Internal Tank Material: | 4mm 304-2B |
| Medium Temperature Change: | Less Than Or Equal To 1degree Whtin 24hours | Manhole: | DN500mm With Food Grade Rubber |
| Logo: | Company Logo Or Any Advertisement | ||
| High Light: | 15000 Liters Milk Transport Truck,195hp Milk Transport Truck,FAW 6x2 Milk Tanker Truck |
||
FAW 6X2 15000Liters Fresh Milk Transport Truck Milk Tanker Truck fresh milk tank transport truck
Description
Milk tank truck is made by chassis and food grade SS plate , normally it has 3department , each department has one inlet nozzle , installed by PIC , self cleaning system. Temperature keep function: by 70-80mm insulation layer, temperature increased 1 degree within 24hours.
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.
Specification
| Item | unit | parameter | ||||||
| Vehicle Brand | CLW | |||||||
| Chassis model | FAW CA1310 | |||||||
| Overall dimensions | mm | 8950*2500*3250 | ||||||
| Tank volume | Liters | 15000 | ||||||
| Curb weight | kg | 13805 | ||||||
| Wheel base | mm | 1900+4250 | ||||||
| F/R track base | mm | 1880/1800 | ||||||
| Approach/departure angle | ° | 16/7 | ||||||
| Engine |
Model | Xichai CA6DF3-18E3 | ||||||
| Displacement/power | 6618ml/143kw | |||||||
| Tire specification | 10.00-20 | Transmission | 7 front, 1 reverse | |||||
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |||||
| Tanker body | Capacity | 15000L milk | ||||||
| Structure | Inner liner | 4mm,Q304/2B Stainless steel | ||||||
| Outter Insulation Board | 2mm,Q304 Stainless steel | |||||||
| Thermal insulation | Polyurethane ,thickness is 70-80mm,temperature up and down 1 degree within 1 hour | |||||||

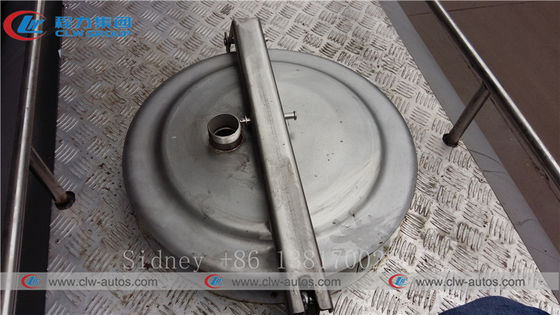

| manhole | Polyurethane ,thickness is 60mm | |||||||
| PIC | cleaning ball,cleaning pipe(Φ38mm) | |||||||

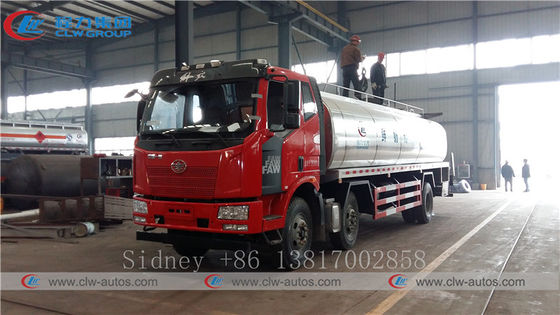

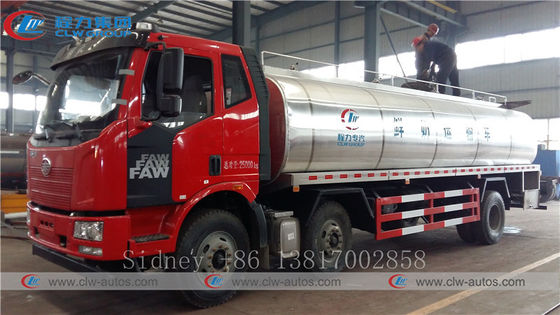

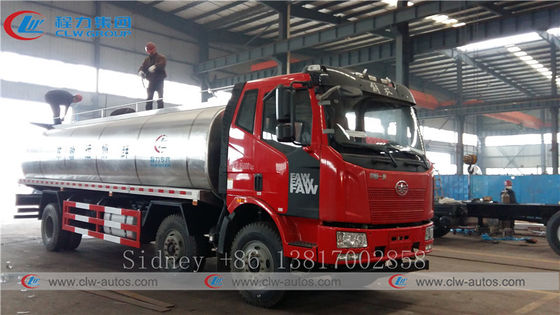

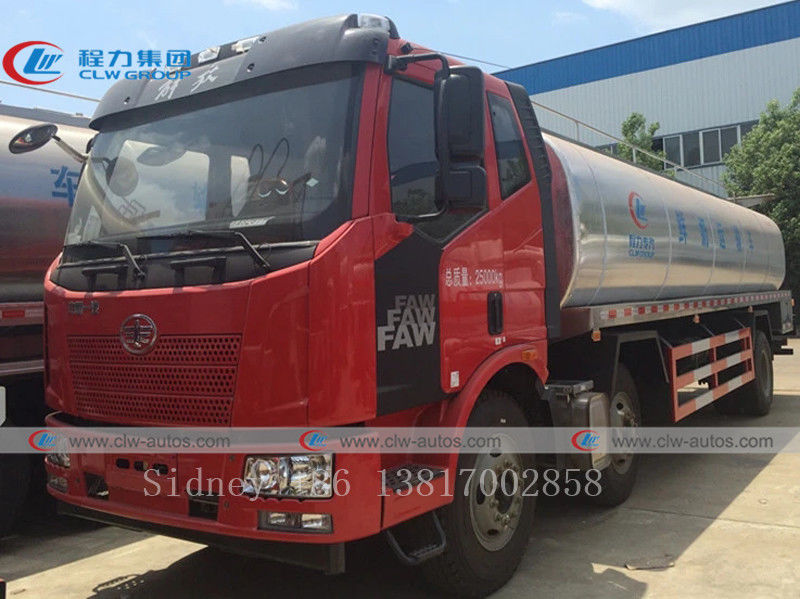

Reference Pictures of milk delivery truck

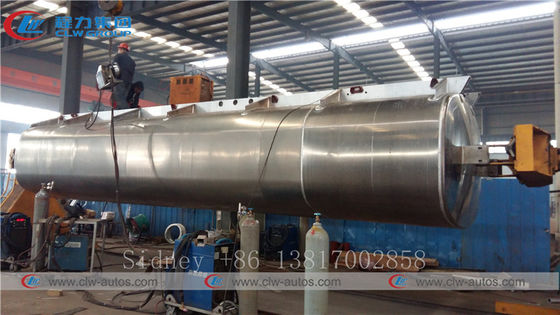

Tank workshop
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of milk delivery truck I can order from your company?
A: We can supply various sizes of milk trucks such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of milk delivery truck? Whether your milk delivery truck or trailers export to USA, Canada and Europen countries?
A: Our milk delivery truck is produced as per China GB local standard; We can export super structure to those market, we ever exported milk delivery truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
