SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck

SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck
SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck

Large Image :  SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck

Product Details:

Place of Origin: SUIZHOU, CHINA
Brand Name: CLW
Certification: BV, SGS, CCC
Model Number: CLW5847

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: USD31500 - 42530
Packaging Details: naked, waxed, bulk ship, ro-ro
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Brand: Chinese Famous Brands, Such As Sinotruk Howo, CAMC, Shacman, Foton, North-benz, JAC, ISUZU, Etc. Loading Capacity: 20tons, 25tons, 30tons
Lifting Type: Front Tipping, Middle Tipping Oil Cylinder Brand: International Brand HYVA Or Chinese Brand
Dumper Material: High Quality Q345B Thickness Of Dumper: Bottom 8mm, Side 6mm, Or As Customer Request
Color: White, Red, Yellow, Green, Or As Customer Request Warranty: 1 Year
High Light:

SINOTRUK HOWO Heavy Duty Dump Truck

,

25T Heavy Duty Dump Truck

,

20T Heavy Duty Tipper Truck

SINOTRUK HOWO 6x4 290hp 20-25Ton Heavy Duty Mining Stone Sand Dump Tipper Truck DumpTruck for Construction Mining Transportation

Product Description
1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm,6mm,8mm, 10mm or as per client's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, and etc.


Product Specification

Vehicle Main Dimensions Overall dimensions (L x W x H)(mm) 7934×2496×3370
Wheel base (mm) 3225+1350
Wheel track (front/rear) (mm) 2020/1800
Approach/Departure angle(°) 19/24
Weight in KGS Tare Weight 12460
payload 28000
Front axles loading capacity 1x9000
Rear axles loading capacity 2x16000
Max. driving speed(km/h) 85
Engine Brand Sinotruk
Model WD615.87
Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 290 @2200 rpm
Emission standard Euro II
Gearbox HW15710, 10 Forwards gear & 1 reverse gear
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L) 400
Tire 12R22.5 tubeless tyre, Triangle Brand, 10+1 pcs
Brakes Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Tipper body size 5400*2300*1500 mm, side is 6 mm, front and bottom 8 mm
Hydraulic system Middle positioned

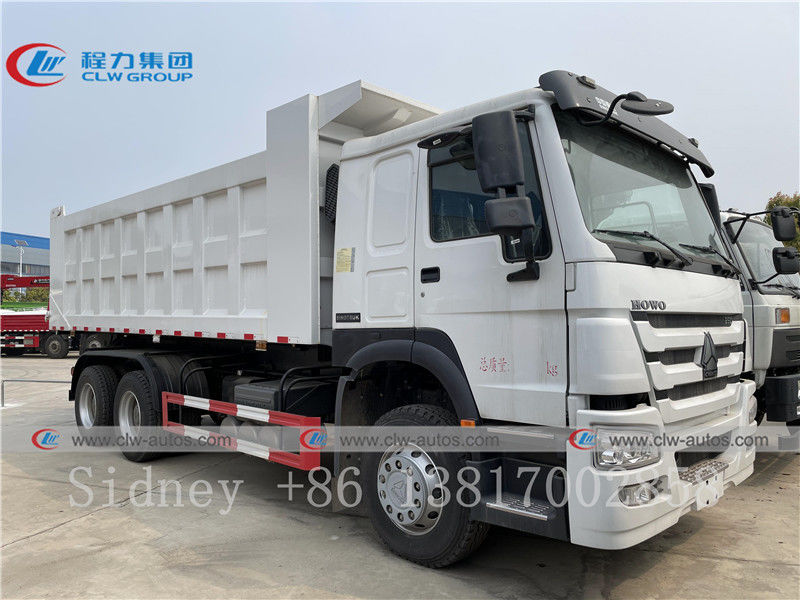

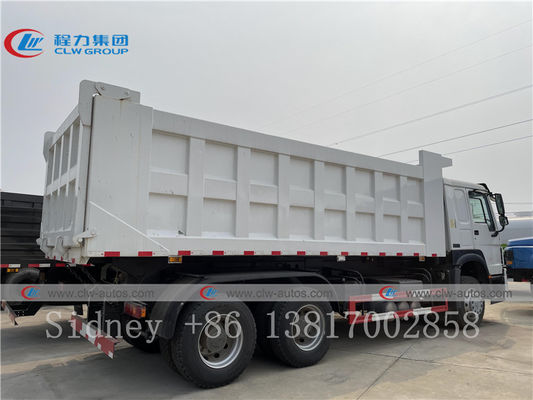

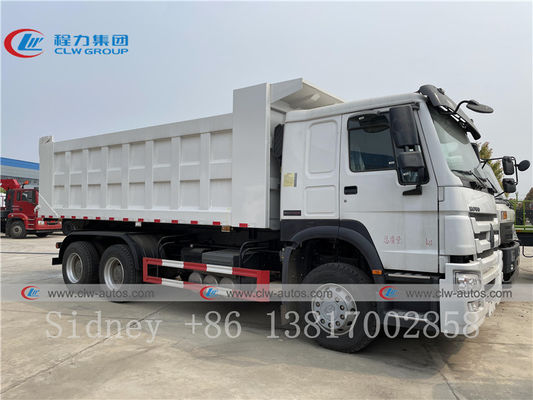

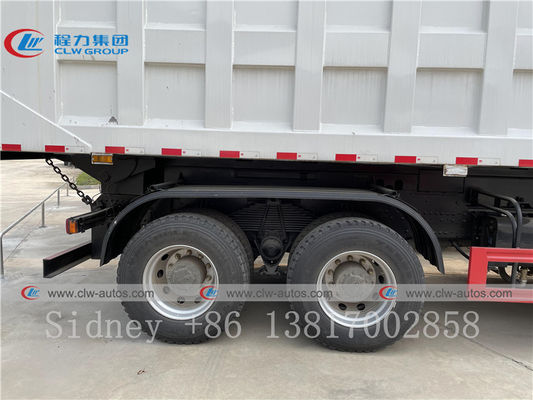

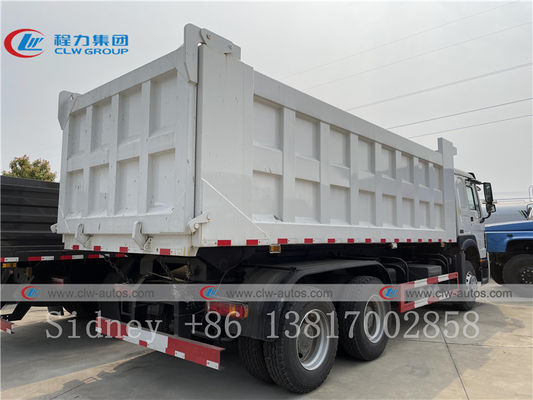

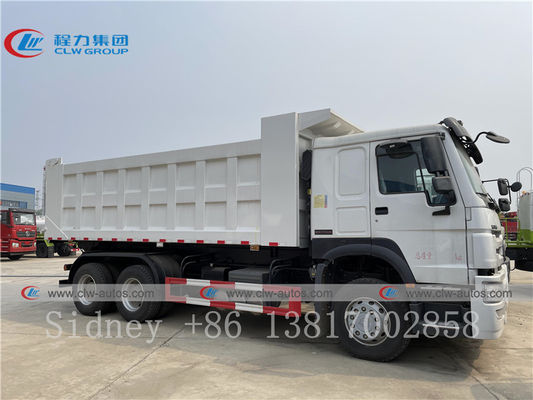

Product Show

SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck 0

SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck 1

SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck 2SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck 3


Related products
SINOTRUK HOWO 6x4 290hp 20T 25T Heavy Duty Dump Truck 4



Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.


FAQ
Q1: What kinds of dump trucks I can order from your company?


A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
