FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck

FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck
FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck

Large Image :  FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC,BV,SGS
Model Number: CLW5857

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiable
Packaging Details: With foam cover on LED screen
Delivery Time: 35 days after received advance payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Pixel Pitch(mm): 4mm, 5mm, 6mm; P4 P5 P6 Screen Size: 4㎡,5㎡,6㎡,7㎡,8㎡,9㎡,10㎡,12㎡ As Per Chassis Size
Control Mode: VGA Synchronous Type: One Side Screen, Two Sides Screen, Three Sides Screen
Picture Tube Chip Color: Full Color And Monochrome Drive Model: 4x2/6 Wheels/4*2
Wheelbase(mm): 2300mm 2800mm 3300mm 3360mm 3400mm 3800mm 4500mm 4700mm 5600mm Color: White; Blue; Green; Yellow; Customized
High Light:

FOTON AUMARK Digital Mobile Billboard Truck

,

4x2 Digital Mobile Billboard Truck

,

P6 LED Digital Billboard Truck

FOTON AUMARK 4x2 Mobile Digital Advertising Truck P4/P5/P6 LED Screen Full Color Display truck





Description



LED Advertising Truck is also called mobile advertising truck, mobile LED screen truck, truck mobile advertising led display, LED truck,etc.The mobile LED truck consists of chassis, LED screen, light box, generator, PC controller, loudspeaker, etc. It is mainly used to display the advertising across the city for supermarket, government, large company, etc.

As a professional and leading led truck manufacturer in China, our mobile led trucks have more advantages than others:



1. P4, P5 and P6 full color led screen for optional, meet all customer's requirements.

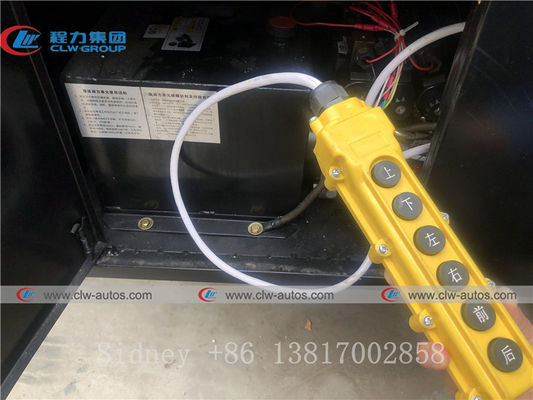

2. Side screen can be lifted 1.5m for stage performance,good visual effect



3. Double color scrolling marquee on the rear door.



4. Equipped with high quality play devices. perfect listening effect.



5. Super-silent generator, save electricity, environmental protection



6. Luxury wood floor with plastic flooring



Specification

Chassis
Overall size(mm) 5995*2040*2990
Cab Single row cab
Color Optional
Allowable person in cab 2/3
Wheel base (mm) 3300, 3360
Number of axles 2
Front axle(kg) 2000
Rear axle(kg) 3000
Driving type 4×2, Left hand
Tire specification 7.00R16
Tire quantity 6+1
Engine Description
Engine Type Diesel
Engine Brand YUCHAI
Emission standard Euro 3
Exhaust/output(ml) 2650
Horse power 115hp
Upper structure
Van box 5mm Composite Steel Frame Structure
Interior Glass Fiber Reinforced Plastics
Floor Aluminum Checkered Plate

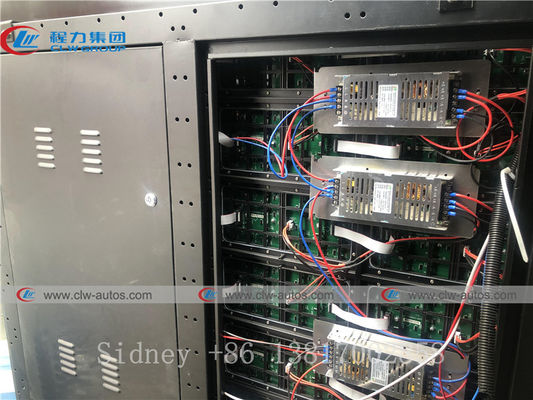

LED screen type P4, P5, P6

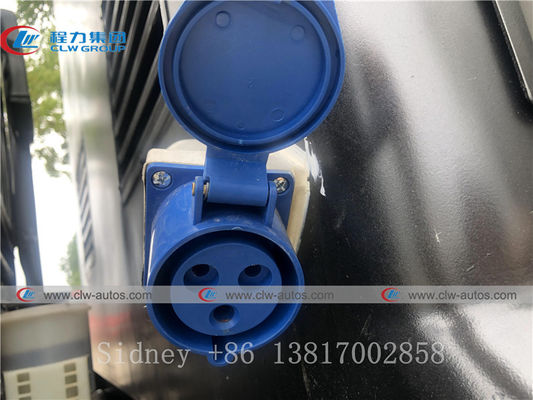

Electrical system Wire, lighting, main switch, external power receptacle
Recirculating system Ventilation fan, sunroof
Standard accessories
  1. Box material:5cm composite steel frame
  2. Floor and lighting system
  3. Source distribution box
  4. Ventilation cooling system
  5. Computer:1 SET
  6. Speakers:4 PCS
  7. Amplifier: 1 SET
  8. Silent generator: 1 SET
  9. Media control system

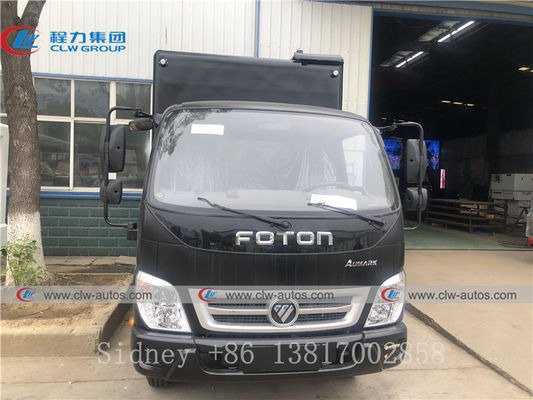

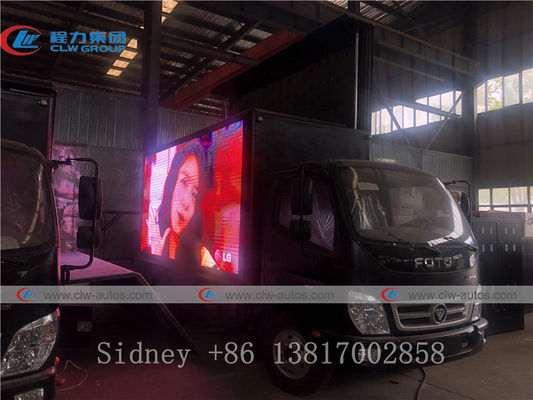

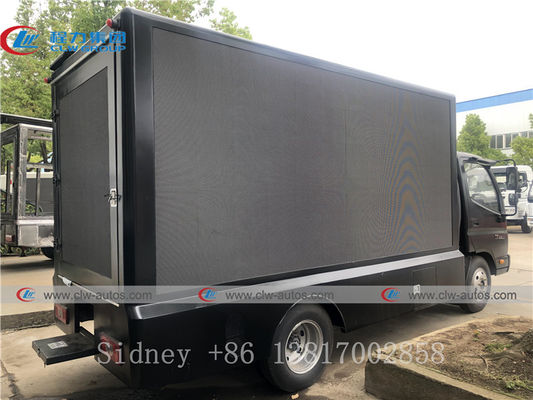

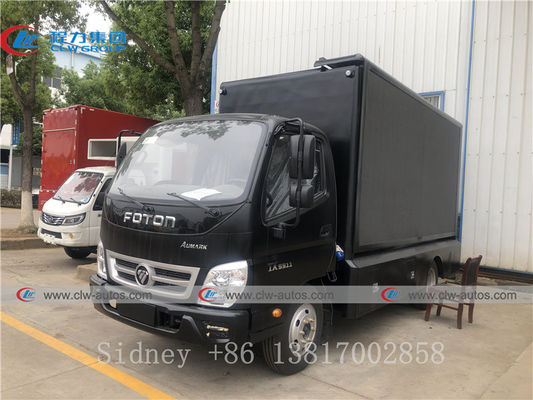

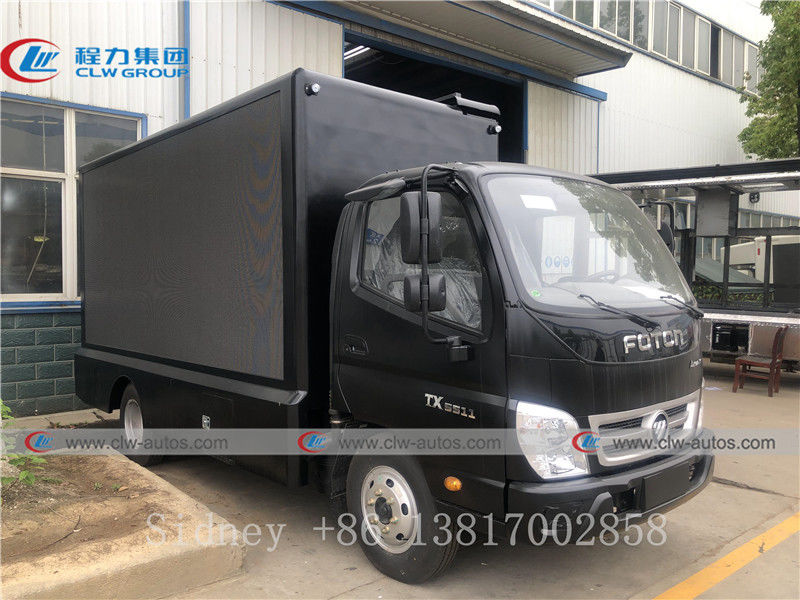

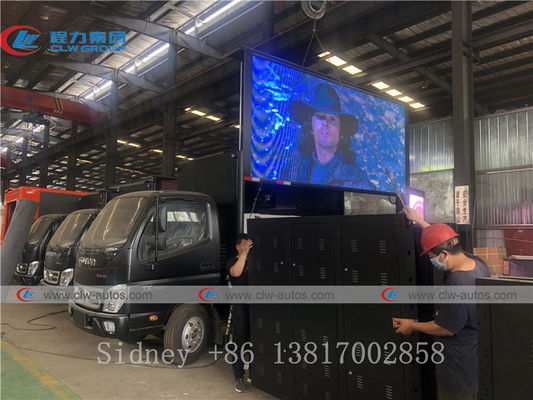

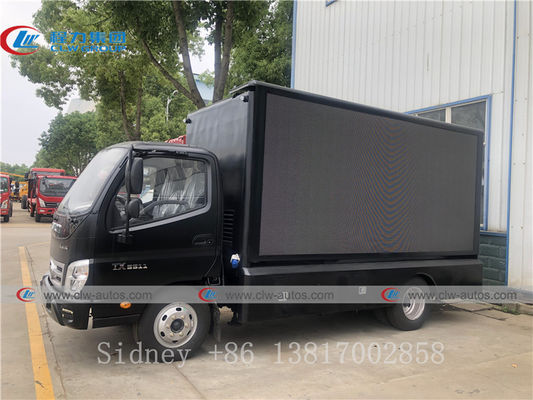

Reference photos

FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck 0FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck 1

FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck 2FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck 3

Product diagram

FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck 4

Factory overview

FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck 5

FOTON AUMARK 4x2 P4 P5 P6 LED Digital Mobile Billboard Truck 6

The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )



Our Services

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment

FAQ



Q1: What kinds of Mobile Billboard LED Advertising Truck products I can order from your company?

A: We can supply all kinds of Mobile Billboard LED Advertising Truck, Mobile stage truck, Mobile stage truck with LED screen, LED advertising trailer, Mobile stage trailer, Mobile stage trailer with LED screen and LED bus etc.



Q2: What is your production standard of Mobile Billboard LED Advertising Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

A: Our CBU LED screen billboard truck is produced as per China GB local standard, but the LED screen and other mian products have CE certificate; We can't export CBU Mobile Advertisement Truck to those countries, but we can export super structure to those market, we exported 30 units LED truck super structure to USA market at the beginning of 2018.



Q3: Have you supplied to Mobile Billboard LED Advertising Truck any renowned companies?

A: Our group company is a regular strategic partner of some big advertising company and mobile cellphone company. We have supplied many different type Mobile Advertisement Truck for them with different chassis brand. Eg: China biggest cellphone company VIVO and OPPO group is our customer and they already purchased more 300 units LED truck from us in the past 3 years.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



Spare Parts



1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
