Product Details:
Payment & Shipping Terms:
|
| Design Code: | Total Standard | Type Of Discharge Valve: | API Or French Style |
|---|---|---|---|
| No. Of Compartment: | 2 Or 3 Or 4 Or 5 Or 6 Or 7 Or 8 | Size Of Discharge Valve: | 3inch Or 4 Inch |
| No. Of Axle: | 2 Or 3 Or 4 | Axle Brand: | BPW Or Fuwa Or Hj |
| Tyre Brand: | Triangle Or Double Coin | Size Of Tire: | 12r22.5 Or 315/80r22.5 Or 385/60r22.5 |
| Air Operated Shut-off Valves: | Yes | Rear Ladder: | Yes |
| Top Safety Rail: | Yes | Level Gauge: | Optional |
| Anti-Theft Lock: | Optional | Additional Fuel Tanker: | 500liter Or 1000liter Are Optional |
| Spare Tire Rack: | Yes | ||
| High Light: | 42CBM Diesel Transport Truck,3 Axle CS Diesel Transport Truck,42CBM Diesel Tanker Truck |
||
3 Axle 42CBM Aluminum alloy carbon steel stainless steel Fuel Tanker/Oil Diesel Transport Truck Semi Tank Trailer
Product Description
1) The tank body through the warehouse, using 5182 aluminum magnesium alloy material, cylinder head thickness of 6mm, 6mm thick partition.
2) European standard tank mouth, submarine valve.
3) Full set of European standard oil loading system.
4) Accessories: aluminum alloy accessories (movable lifting guardrail, toolbox, exit box, side protection, rear protection, anti-skid net, climbing ladder) and stainless steel barrel.
5) Carbon steel gear oil pump (semi trailer without pump).
6) 2 fire extinguishers, safety signs.
The tank surface color surface polishing waxing, paste 3M reflective tape reflective strip, paste < flammable liquid > logo.
Optional configuration: A tanker and reel; B. C Stainless steel or aluminum alloy pump; D points storehouse; E increase the flow port; F Tank surface paint, etc.
Standard configuration of walking mechanism
1) Carbon steel high strength steel frame;
2) 12 tons of Fuwa disc brake axle with EBS;
3) Fuwa air suspension;
4) 12 sets of 12R22.5 vacuum tire iron ring;
5) 28 tons of single action leg, 50# traction pin.
The walking mechanism is equipped with A aluminum alloy secondary girder; B. BPW axle and air suspension, and air suspension with front axle lift; C Tires of other brands and aluminum alloy rims.
First, aluminum alloy semi-hanging tank truck is safer:
1. Aluminum alloy semi-trailer tanker has excellent safety record in highway accidents;
2. Aluminum alloy semi-hanging tank car has a low center of gravity, so it is easy to brake and safer;
3. Non-combustible material, no spark, lower static electricity accumulation;
4. Less damage to road surface: The government always hopes to reduce road maintenance costs;
5. Can absorb energy generated by collision through deformation, and will not suddenly tear;
Aluminum alloy semi truck lighter deadweight, higher payload (quick return on investment).
By reducing the body weight of the vehicle, the payload is increased, and the same amount of cargo can be transported in fewer shifts.
Aluminum alloy semi truck better fuel efficiency, reduce carbon dioxide emissions, more environmental protection.
Four. Longer service life of aluminum alloy semi-hanging tank truck:
Strong corrosion resistance, 15-20 years is the typical service life of aluminum alloy semi-hanging tank truck.
Five. Aluminum alloy semi-hanging tank car is more beautiful
Aluminum alloy semi - hanging tank car corrosion resistance
Low maintenance costs, no paint, durable appearance, easy to clean.
Seven. Aluminum alloy semi-hanging tank car recycling value is high
Aluminum still has a high recycling value after scrap.
1)European standard tank mouth: set oil and gas recovery, leakage prevention rod, self-lock, self-breathing functions in one, and leave a reserved mouth.
2) Manhole blind cover: reserve tank opening position for other purposes.
3) Tank top water tank: 1000 liters super large water tank, aluminum alloy material.
4) Aluminum alloy anti-skid net: the top of the whole top of the hanging body adopts aluminum alloy material anti-skid wire net, in order to avoid the operation personnel in the tank top operation accidentally slip and fall, greatly improving the safety of the tank top operation.
5) High strength aluminum alloy wheels wear resistance, good heat dissipation, can prolong the service life of tires.
6) Aluminum alloy toolbox: one of the vehicle lightweight design, reduce body weight, good appearance, easy to clean.
7) Aluminum alloy loading and unloading box: one of the vehicle lightweight design, fully enclosed aluminum alloy loading and unloading protection box, can be divided into multiple compartments.
8) welding seam: uniform aluminum alloy welding seam, automatic welding machine forming, welding seam uniform, making the welding force more uniform. Excellent welding technology makes the tank more reliable.
Product Specification
| 30,000L-50,000L 3-axle Aluminum Alloy Oil Tanker Semi-Trailer | ||
| Feature: | Diesel, Gasoline, Chemical Liquid | |
| Dimension(L*W*H): | 11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) 12000mm *2500mm*3800mm (42,000L) 13,000mm*2,500mm*3,750mm(47,000L) |
|
| Material: | Aluminum Alloy | |
| Compartment: | 3-8 | |
| Capacity(kgs): | 30,000L-50,000L | |
| Tare weight(kgs): | 6,000-7,800kgs | |
| Kingpin | JOST brand bolt-in/welded type 3.5"/2" | |
| Landing gear | JOST brand two-speed manual operation | |
| Tire size | 11R22.5,12R22.5,315/80R22.5, | |
| Rim size | 8.25*22.5, 9.00*22.5, | |
| Axle | Original BPW-12T/ FUWA-13T | |
| Leaf spring | leaf spring / Airbag suspension | |
| Brake system | One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector. | |
| Manhole: | Aluminum alloy ø500mm(20") manhole with aluminum alloy cover; with breather valve; | |
| Discharge Valve | Aluminum alloy discharge valve with cover | |
| Bottom Valve | Pneumatic control DN80 aluminum alloy bottom valves | |
| Pneumatic Control system | 1set Pneumatic Control combined switch 1unit emergency switch |
|
| Discharge Hose | 2 units 3" X6M factory PVC hose with quick coupling on both ends | |
| Vapor Recovery & Overfill system | Optional | |
| Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside | |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable | |

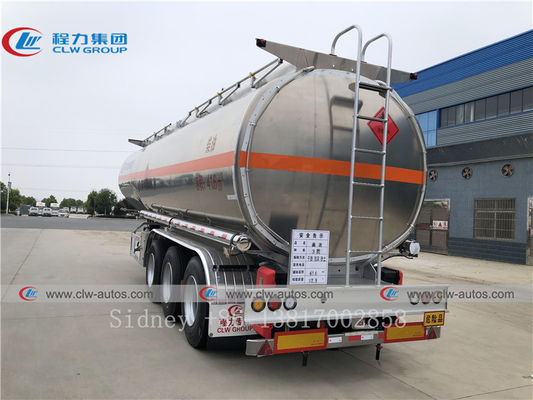

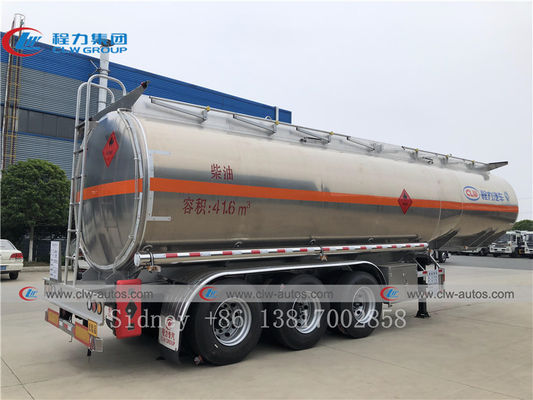

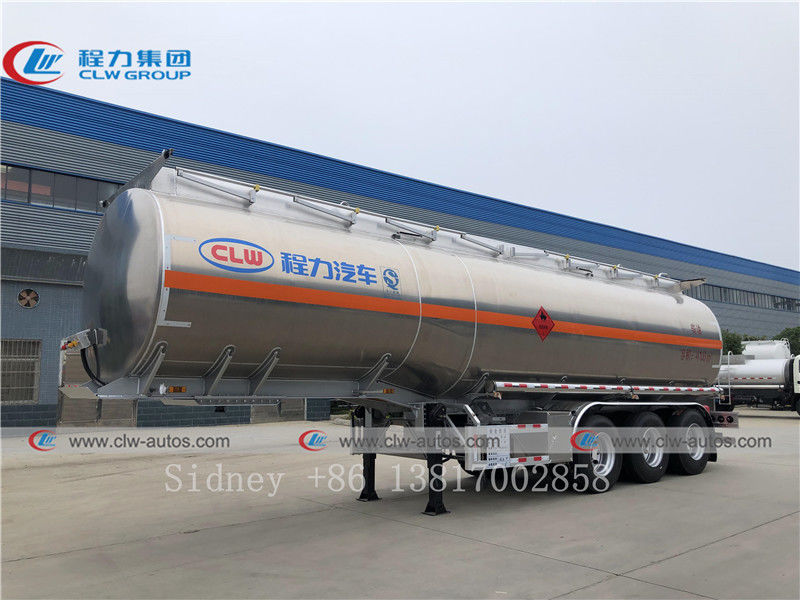

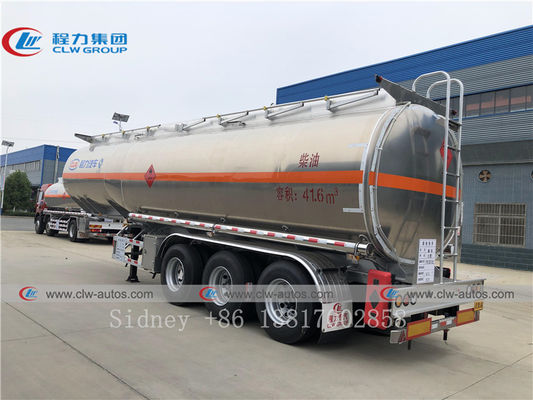

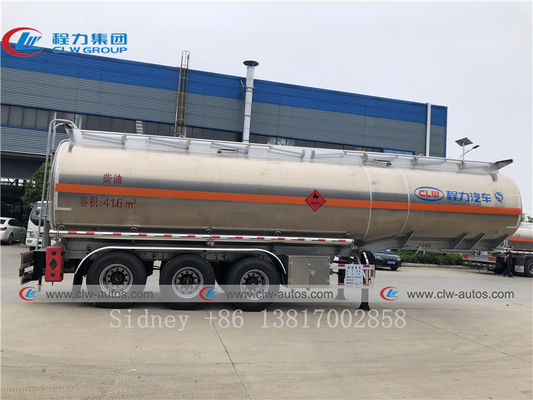

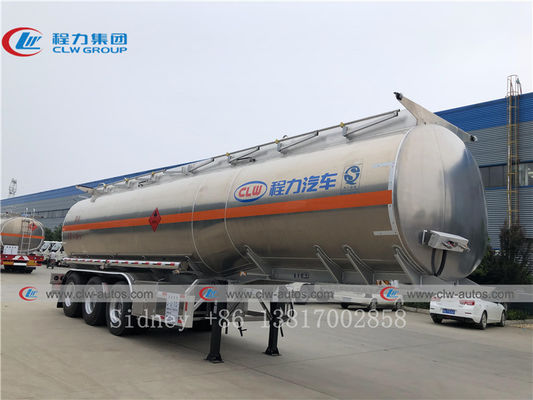

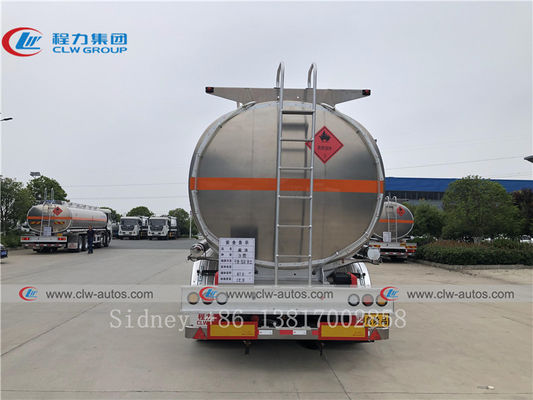

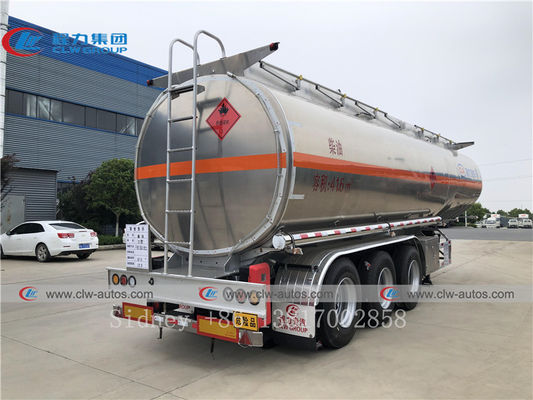

Reference Photos
Main Structure Diagram
Factory overview
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of fuel tank trailer I can order from your company?
A: We can supply various sizes of fuel tank trailer from30-50tons,etc.
Q2: What's the material of your fuel tanker?
A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.
Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
