Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Foton, JMC, Howo, Dongfeng, Isuzu, JAC, Etc. | Gearbox: | 6 Forward & 1 Reverse Gear |
|---|---|---|---|
| Tank Material: | Carbon Steel, Stainless Steel Or Aluminum Alloy | Tank Volume: | 5M3, 10M3, 15M3, 20M3, 25M3 |
| Tank Shape: | Square Round, Round | Transport Oil Type: | Diesel, Petrol, Gasoline, Oil, Etc. |
| Oil Pump: | Chinese Famous Brand | Oil Dispenser: | Chinese Famous Brand |
| Hose Reel With Filling Gun: | 15 Meter (Length Can Be Longer As Per Request) | Oil Vapor Recovery System: | Optional |
| Delivery Time: | 35 Days | Color: | Customized |
| Warranty: | 1 Year | ||
| High Light: | 5000L Small Fuel Tank Truck,4x2 Small Fuel Tank Truck,Foton Oil Tanker Truck |
||
1. Purpose: It is used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2. Refueling System: Oil pump, Oil dispenser machine and Hose reel with filling gun, etc.
3. Advantage: High quality with competitive price.
4. We can supply fuel truck, refueling truck from 4000L to 40000L.
5. According to your requirements, it has functions of oil-absorbing, oil-pumping, separation variety of oil, separation packing of oil.
6. The tank material can choose carbon steel or 304 stainless steel or aluminum alloy.
7. Optional Chassis Brand: Dongfeng, Fonton,JMC, Sinotruk Howo, Shacman, FAW and etc.
8. Factory direct sale, high quality and good price.
Specification
| Vehicle name | FOTON Aumark fuel tanker truck | |
| Overall dimensions | mm | 6800*2200*2900 |
| Garbage tank volume | L | 5000 |
| GVW | kg | 11000 |
| Curb weight | 6000 | |
| Loading weight | 5100 | |
| Wheel base | mm | 3800 |
| Front/Rear overhang | 1740/1640 | |
| Approach/departure angle | ° | 20/17 |
| Max speed | km/h | 90 |
| Standard configuration |
1) Carbon steel fuel tank, thickness 4mm. 2) 5m3 fuel tanker. 3) With refuel device 1 set. 4) With gear pump. 5) 15m fuel pipe. |
|
| Chassis Parameter | ||
| Cabin | Single row cabin, with air conditioner, 2 passengers. | |
| Drive type | 4×2, 2 axles | |
| Engine |
Brand : CHINA XICHAI Power: 95hp Fuel type : diesel Displacement : 3540ml Emission standard : Euro 3/4/5 optional |
|
| Gearbox | 6-speed, manual | |
| Tire model | 8.25-16 | |
| No.of tire | 6+1 | |

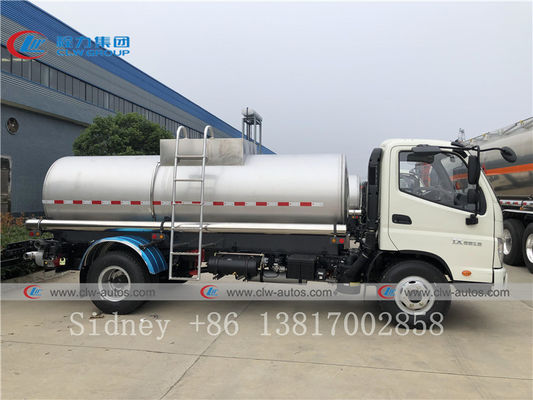

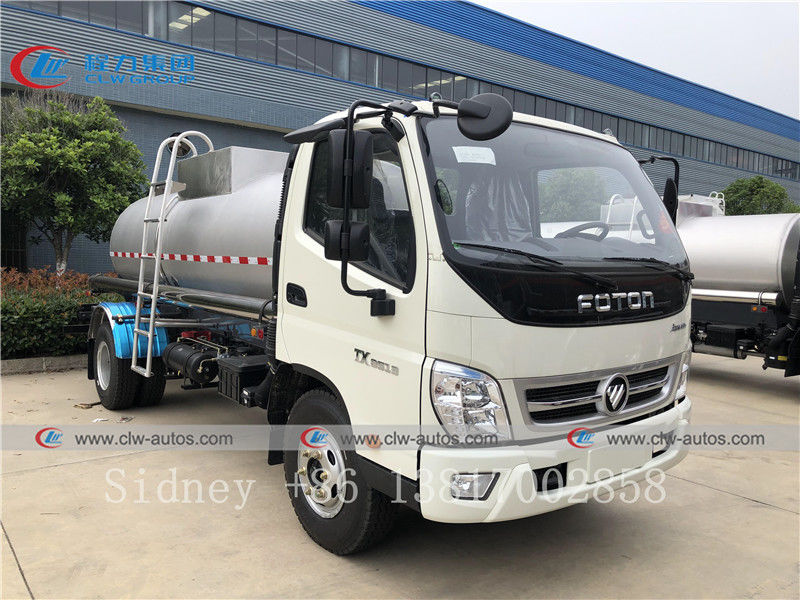

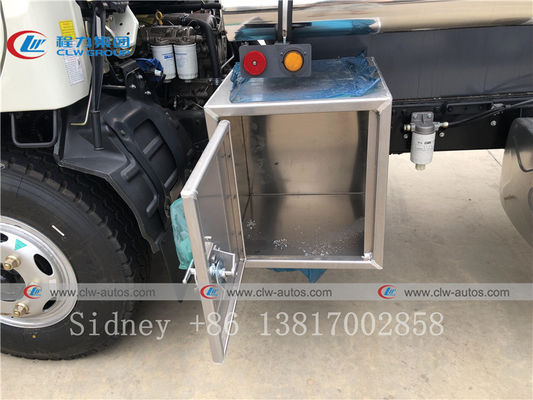

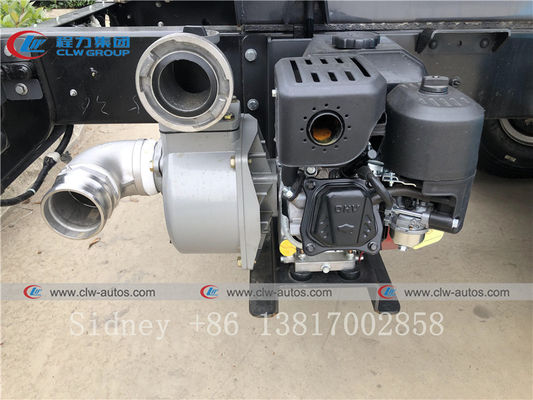

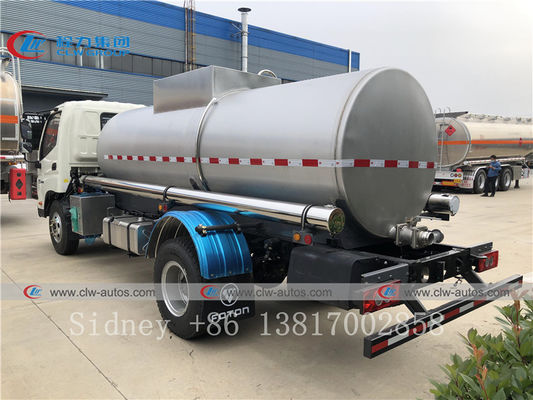

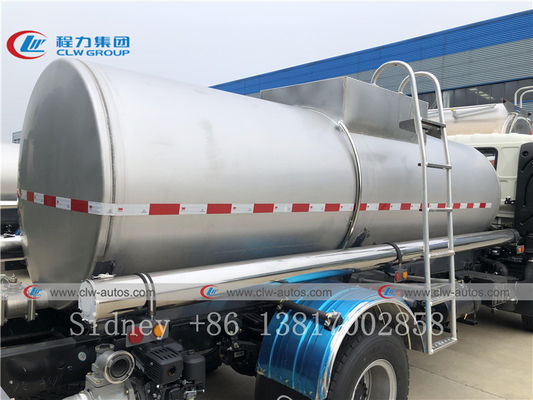

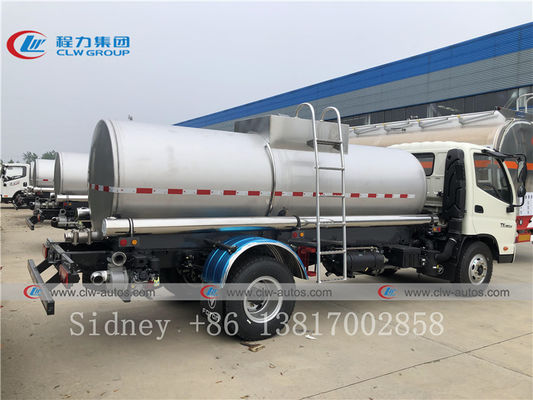

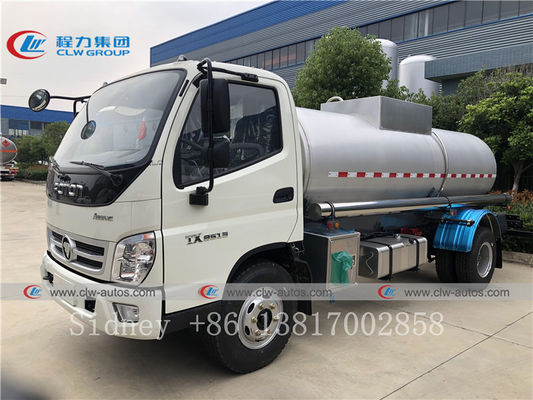

Reference Photos
Other Kinds of Fuel tank trucks
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Fuel Dispenser Tanker Truck I can order from your company?
A: We can supply different size Fuel Dispenser Tanker Truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Fuel Dispenser Tanker Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for Fuel Dispenser Tanker Truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
