Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Axle: | FUWA, BPW, L1, Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Oil Tanker: | 40M3, 40 Cubic Meters, 40000 LITERS |
| Compartment: | 2 3 4 5 6 Compartments | Front Axle: | 13 Tons, Or 16 Tons, Front Axle Liftable |
| Suspension: | Front: Air Bag, Rear: Mechenical Suspension. | Transport: | Fuel, Oil, Diesel, Gasoline, Petrol, Palm, Crude Oil |
| Equipment: | Pump, Motor. | Tank Capacity: | 40M3 45M3 46M3 48M3 50M3 55M3 60M3 |
| High Light: | 40CBM Tank Semi Trailer,ISO9001 Tank Semi Trailer,40CBM Oil Tanker Trailer |
||
Description:
** Tank material could be carbon steel, stainless steel, alluminum...
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.

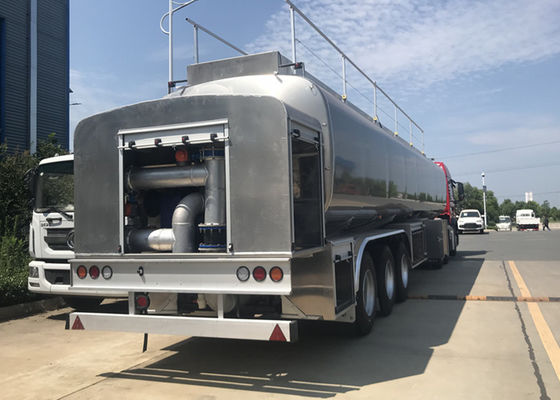

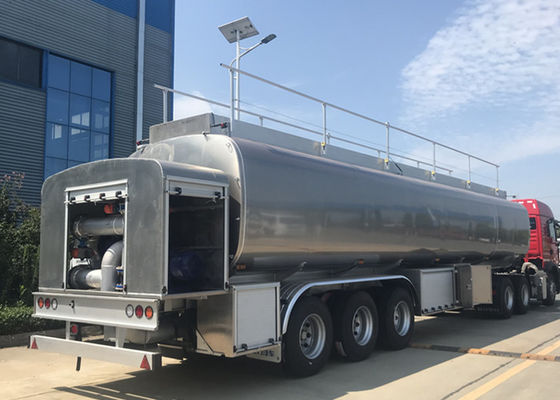

** Bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve...
** Tube or tubeless tyres, off-road single tyre for bad roads.
1. Purpose: It used for transporting all kinds of chemical liquid such as diesel and gasoline etc.
2. Main parts: Axle, Bottom valve, pipeline and liquid line.
3. Tank material for optional: Carbon steel, Stainless steel 304, Stainless steel 316, Stainless steel 316L and Aluminium alloyetc.
4. Available tank volume: 38CBM - 60CBM/2 Axles/3 Axles/4 Axles
5. Axle brand: China famous brand FUWA/China brand L1/Germany brand BPW.
product Specification
| Liquid Fuel / Water Tank Truck Semi Trailer | |||||
| Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size | |
| 10000-30000liters/10-30cbm | 2 | 40000 | 8 | 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) | |
| 30000-60000liters/30-60cbm | 3 | 60000 | 12 | ||
| Above 60000liters/60cbm | 4 | 75000 | 16 | ||
| Manufacture | Qingdao Eleph Industry & Trade Co., Ltd | ||||
| Wheel Base (mm) | 1310 | ||||
| leaf-spring Pcs | 10 | ||||
| Axle | 13/16/18 T | ||||
| Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | ||||
| Main Beam Material | Q345B manganese plates, automatic submerged arc welded | ||||
| Brake System | Dual line braking system with automatic braking system/chambers | ||||
| Brake Air Chamber | Double Model | ||||
| Kingpin | 2' or 3.5' Interchangeable | ||||
| Landing gear | 28T loading capacity with 80T static lifting capacity. | ||||
| Tanker body | 5mm , sealing end: 6mm | ||||
| Brake System | Dual Lines Braking System With Automatic Air Chambers | ||||
| Brake Air Chamber | Four double and two single chamber | ||||
| Electrical System | 24V, 7core socket, lights according to European standards. | ||||
|
Mainbeam Size |
Upper plate | 14mm | |||
| Lower plate | 16mm | ||||
| Mid Web | 8 mm | ||||
| Height | 500-520mm | ||||
| Tool Box | 1 box of standard tools | ||||
| Spare tire carrier | 2 sets | ||||
| Color and Logo | Depends on the buyer’s requirement. | ||||
| Pin Height | According to the height of the tractor saddle. | ||||
| Painting | Three coats painting; Any color will be available | ||||
| Manhole | 2pcs | ||||
| Body Material | Carbon Steel/ Stainless Steel/Aluminium | ||||
| Ladders | Steel with anti slipper walking way | ||||
| Fire extinguisher | 2x 4kgs | ||||
| handrail | Steel, manual | ||||
| Application | For liquid transportation | ||||
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
