Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Product Name: | Chemical Sulfuric Acid Transport Tank Tanker Truck |
|---|---|---|---|
| Drive Type: | 6X2 8 WHEELS 8 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 8000Liters, 10000Liters, 12000Liters, 8CBM, 10CBM, 12CBM | Truck Brand: | Sinotruk/Sinotruck HOWO, Isuzu, FAW, FOTON, Jac |
| Tuck Type: | Sulfuric Acid Delivery Transport Truck, Liquid Chemical Tank Truck | Other Equipment: | Charging/discharging Valves. API Manhole |
| Equipment: | Plastic Lined Inside Of Tanker, And Valves | Loading: | Liquid Chemical, Concentrated Or Dilute Sulfuric Acid |
| High Light: | FAW 6x2 Chemical Transport Truck,10000L Chemical Transport Truck,RHD Chemical Delivery Truck |
||

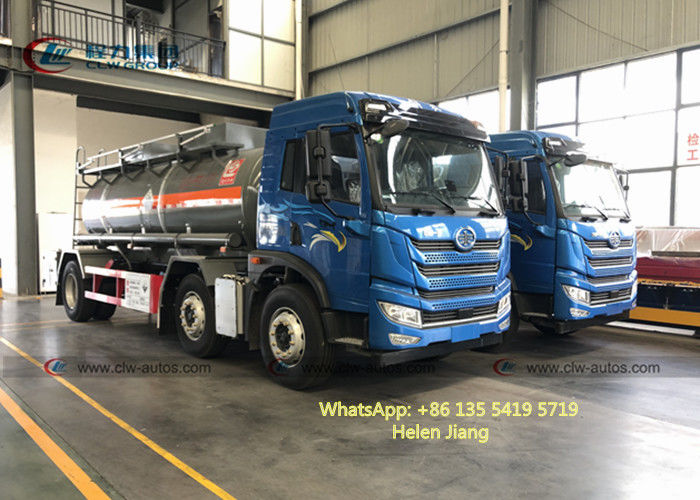

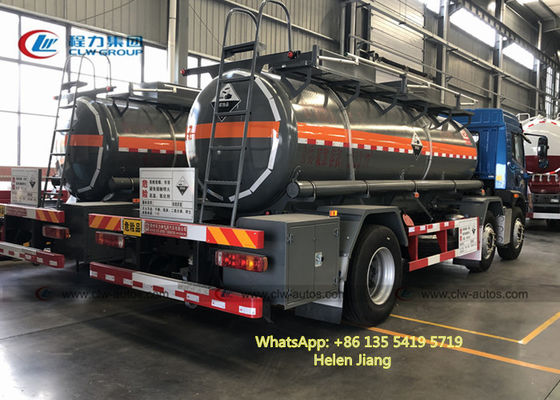

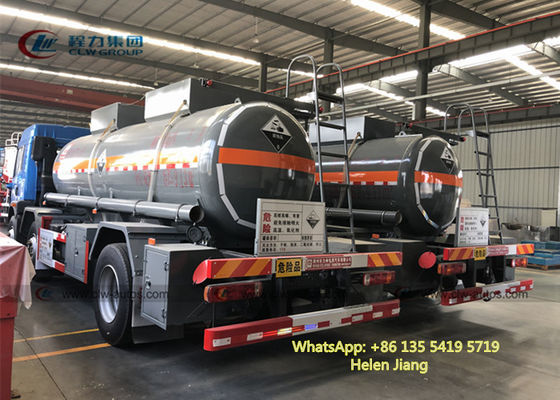

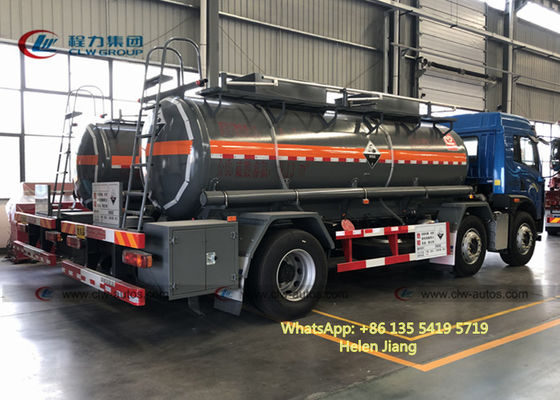

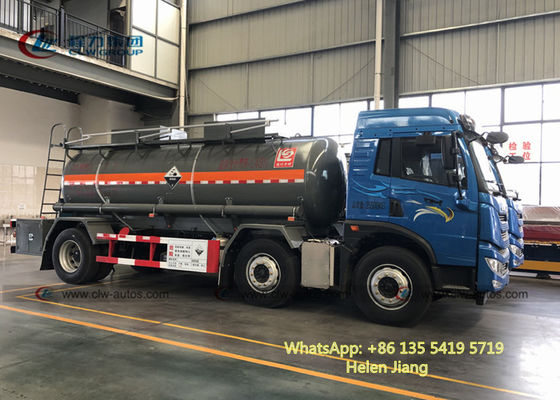

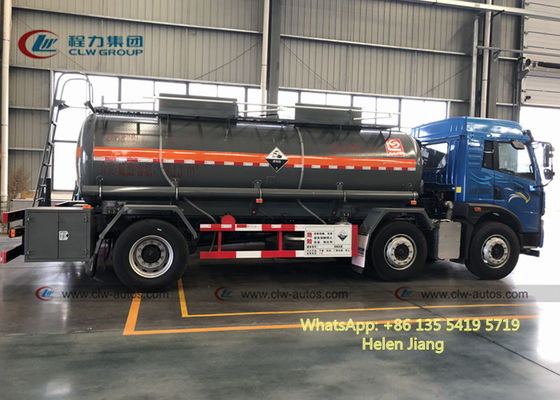

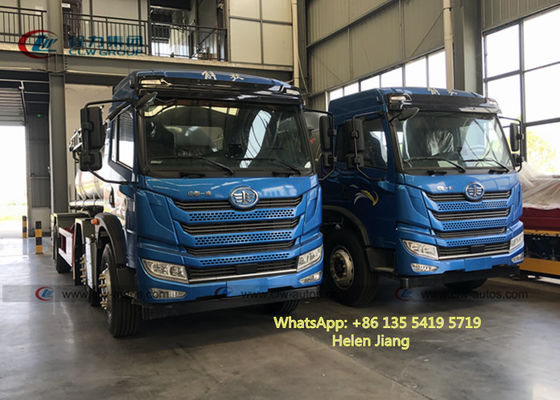

FAW 6*2 10000L RHD Liquid Chemical Tanker Sulfuric Acid Transport Tank Truck
Product Description
1. Purpose: It used for transporting all kinds of acid solution and alkaline solution such as 98% sulfuric acid, dilute sulphuric acid and sodium chloride solution
2. Main parts: Bottom valve, pipeline and liquid line.
3. Truck Brand: FAW, optional for SINOTRUK HOWO, Dongfeng, ISUZU, SHACMAN, North Benz and other brands
4. Available tank capacity: 15m³ , 16m³ ,18m³ ,20m³ , 22m³
| Description | 6x2 Chemical transport truck sulfuric acid transport truck | ||
| Condition | New condition/LHD&RHD | ||
| Chassis | Curb weight(kg) | 9890 | |
| G.V.W.(kg) | 25000 | ||
| Wheelbase(mm) | 1860+4140 | ||
| Dimensions(mm) | 9650×2490×3100 | ||
| Overhang (front/rear) (mm) | 1272/2378 | ||
| Wheel track (front/rear) (mm) | 1930/1930/1860 | ||
| Approach/Departure angle(°) | 22/20 | ||
| Axle Load(kg) | 6780/6850/11370 | ||
| Max. driving speed(km/h) | 80 | ||
| Brand | FAW | ||
| Model | CA5250 | ||
| Tire | Number | 8pcs with one spare tire | |
| Specifications | 10.00-20 10.00R20 | ||
| Clutch | Reinforced diaphragm clutch | ||
| Cab | 3 | ||
| Gear box | 7 Forwards & 1 Reverse | ||
| Engine | Model | CA6DF3-22E3F | |
| Displacement(ml) | 7120 | ||
| Power(kw/hp) | 165/224 | ||
| Emission standard | Euro 3 | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tank | Capacity(m³) | 10-15 | |
| Tank material | Q235 carbon steel | ||
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
