Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Product Name: | Chemical Sulfuric Acid Transport Tank Tanker Truck |
|---|---|---|---|
| Drive Type: | 6X2 8 WHEELS 8 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 18000Liters, 20000Liters, 25000Liters, 18CBM, 20CBM, 25CBM | Truck Brand: | Sinotruk/Sinotruck HOWO, Isuzu, FAW, FOTON, Jac |
| Tuck Type: | Sulfuric Acid Delivery Transport Truck, Liquid Chemical Tank Truck | Other Equipment: | Charging/discharging Valves. API Manhole |
| Equipment: | Plastic Lined Inside Of Tanker, And Valves | Loading: | Liquid Chemical, Concentrated Or Dilute Sulfuric Acid |
| High Light: | RHD Chemical Transport Truck,20CBM Chemical Transport Truck,FAW 8x4 Chemical Delivery Truck |
||

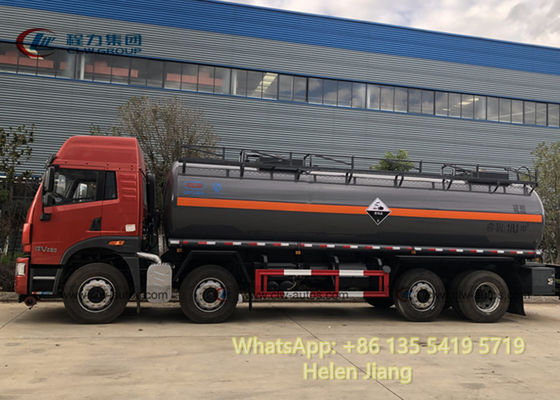

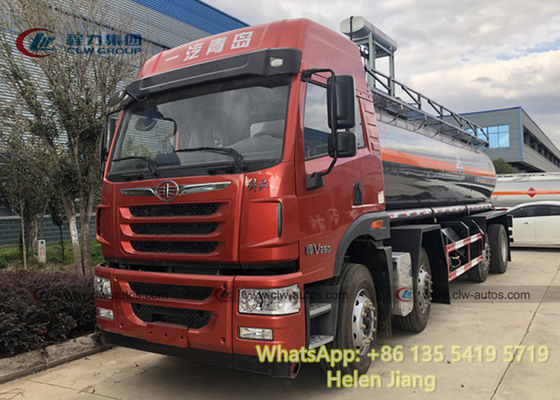

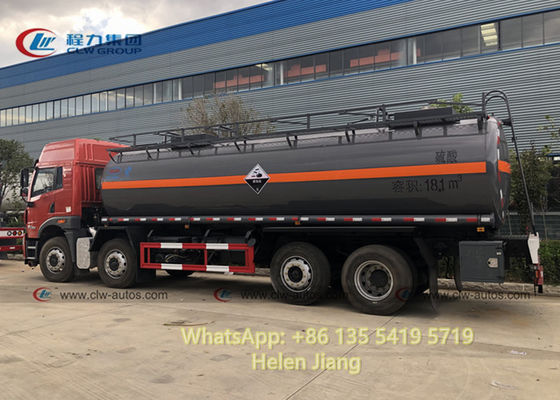

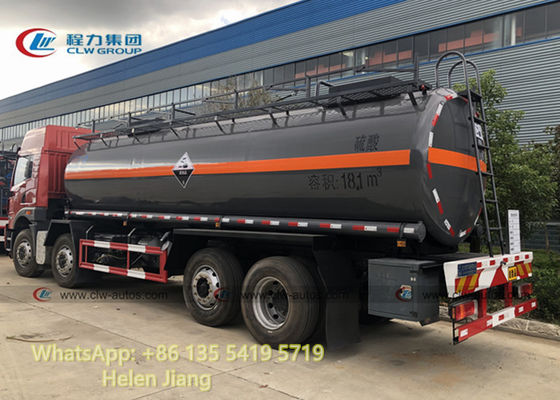

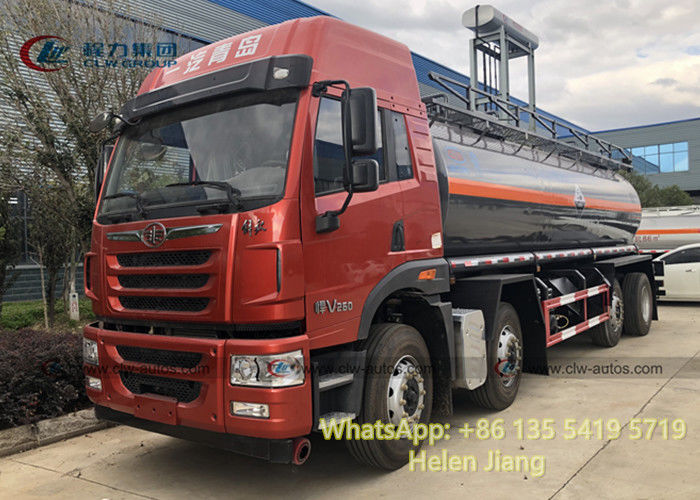

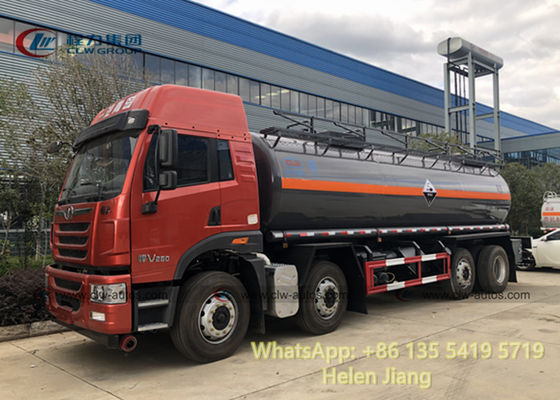

FAW 8*4 20000L 20CBM RHD Liquid Chemical Transport Tanker Dilute Sulfuric Acid Tank Truck
Product Description
1. Purpose: It used for transporting all kinds of acid solution and alkaline solution such as 98% sulfuric acid, dilute sulphuric acid and sodium chloride solution
2. Main parts: Bottom valve, pipeline and liquid line.
3. Truck Brand: FAW, optional for SINOTRUK HOWO, Dongfeng, ISUZU, SHACMAN, North Benz and other brands
4. Available tank capacity: 15m³ , 16m³ ,18m³ ,20m³ , 22m³
Acid Tank Trailer 30T -60T Solusion Hydrogen Chlorate, Sodium Hydroxide,Acrylic ,Acetic Acid,Glacial Acetic Acid, Hydrogen Peroxide ,Propionic acid,
Steel Lined LDPE aslo for HCL(max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)
| Technical Parameter | |
| Product Name | Chemical liquid tank truck |
| Overall Dimension(L*W*H) (mm) | 9600×2500×3350 |
| Tank size(mm) | 6800×2400×1700 |
| GVW(kg) | 24700 |
| Curb weight(kg) | 11505 |
| Rated loading capacity(kg) | 13000 |
| Approaching/Departure Angle(°) | 27/13 |
| Front/Rear suspension(mm) | 1245/2705 |
| Front/Rear tread(mm) | 1940/1860 |
| Fuel type | Diesel |
| Chassis Technical Parameter | |
| Chassis brand name | FAW |
| Control System | Electrically hydraulic system |
| Electric System | 24v |
| Traction system | 6×4 |
| Transmission | 6 forward gear, 1 backward gear |
| Tyre specifications | 10.00-20 |
| Tire number | 10 (1 spare tire) |
| Wheelbase(mm) | 4350+1300 |
| Axle number | 3 |
| Axle loading(kg) | 6800/17900 |
| Passengers in cab | 3 |
| Maximum speed(km/h) | 85 |
| Engine Parameter | |
| Engine manufacturer | WEICHAI |
| Engine model | 380HP |
| Displacement (ml) | 5900 |
| Power (kw/hp) | 155/210 |
| Number of cylinders | 6 |
| Cylinder spread pattern | In-line |
| Intake type | Supercharged and mid-cooling |
| Cylinder bore× route(mm) | 102×120 |
| Maximum torque speed(rpm) | 1500 |
| Emission standard | Euro 3 |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
