Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Foton, HOWO, FAW, Isuzu, Etc | Drive Type: | 4x2 6 Wheels, 6 Wheeler |
|---|---|---|---|
| Drive Model: | Left Hand Drive, Or Right Hand Drive | Engine: | YUNNEI Engine |
| Gear Box: | 6 Forwards And 1 Reverse | Tanker Material: | Stainless Steel, Aluminum Alloy |
| Inner Layer: | 304 2b Stainless Steel | Inner Layer Thickness: | 4mm |
| Middle Layer: | Polyurethane Foam | Middle Layer Thickness: | 80mm |
| Outer Layer Thickness: | 1mm | Medium Temperature Change: | Less Than Or Equal To 1degree Whtin 24hours |
| Automatic Cleaning System: | In The Tank, 360 Degree Rotation | Valve And Pipeline: | Stainless Steel |
| Manhole: | DN500mm With Food Grade Rubber | Logo And Painting: | According To Customer's Requirements |
| Delivery Time: | 30-35 Working Days | ||
| High Light: | 10cbm Water Transport Truck,SS 304 2B Water Transport Truck,Sinotruk Howo Water Delivery Truck |
||
Product Description
Milk trucks are also called fresh milk trucks, milk tank trucks, and liquid food trucks. The tank body is made of food-grade stainless steel plates. The outside of the tank body needs to be insulated to prevent the fresh milk from deteriorating. Add CIP (cleaning device) in each milk tank.
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.
Product Specification
| Cabin | Driving type 4x2 | |
| 1880 Standard cab, with two seats, with A/C. Left hand driven. 70° hydraulically tillable to the front as attached photo for ref. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 5998x2150x2650 |
| Wheel base (mm) | 3360 | |
| Wheel track (front/rear) (mm) | 1160/1475 | |
| Approach/Departure angle(°) | 20/18 | |
| Weight in KGS | Tare Weight | 4000 |
| Loading Capacity | 5000 | |
| Front axles loading capacity | 1x2400 | |
| Rear axles loading capacity | 1x4200 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | YUNNEI |
| Model | YN4102 | |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 116HP | |
| Emission standard | Euro Ⅱ | |
| Gearbox | WLY6T46, 6 forwards & 1 reverse | |
| Clutch | Diaphragm spring clutch | |
| Steering Gear | Power steering | |
| Fuel tank (L) | 120L | |
| Tire | 7.00R16 with one spare, 7 pieces | |
| Tank specification |
5,000 liters, tank thickness is 3 mm, seal is 4 mm |
|

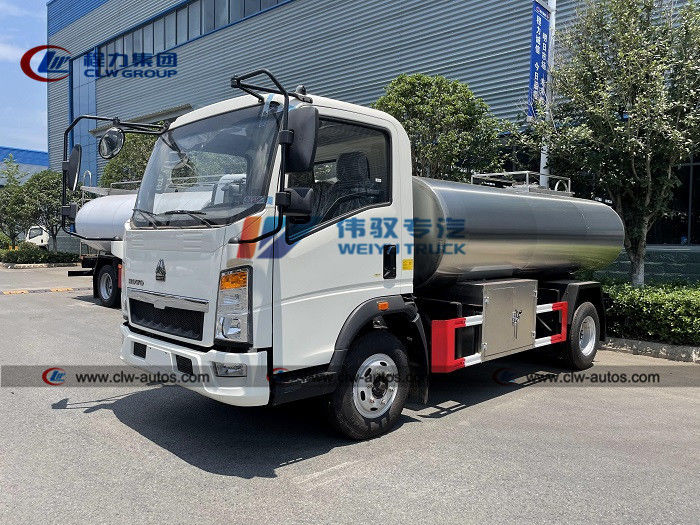

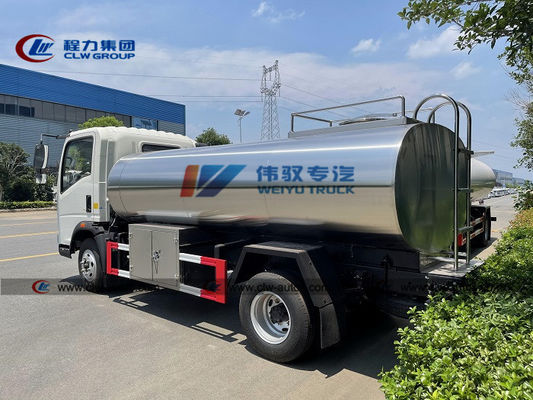

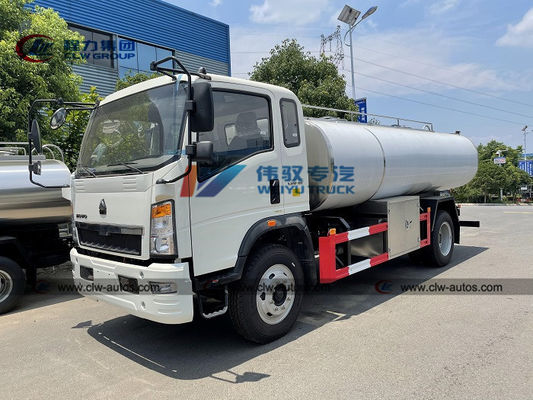

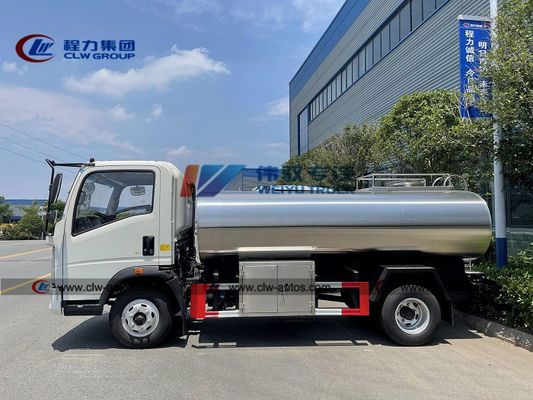

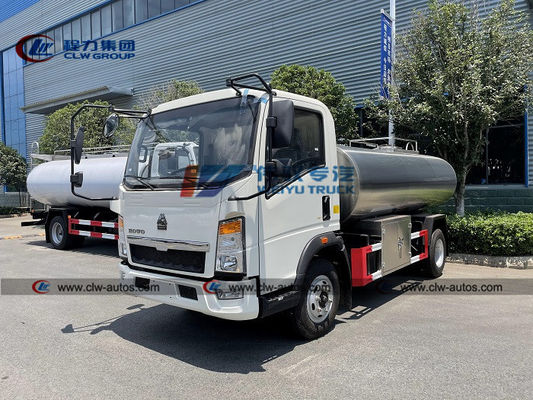

Reference Photos
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.
FAQ
Q1: What kinds of milk delivery truck I can order from your company?
A: We can supply various sizes of milk trucks such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of milk delivery truck? Whether your milk delivery truck or trailers export to USA, Canada and Europen countries?
A: Our milk delivery truck is produced as per China GB local standard; We can export super structure to those market, we ever exported milk delivery truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
