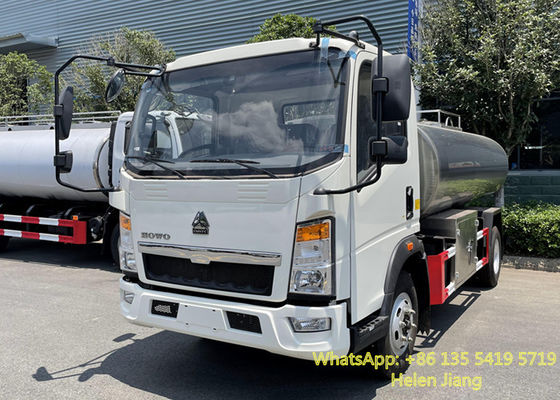

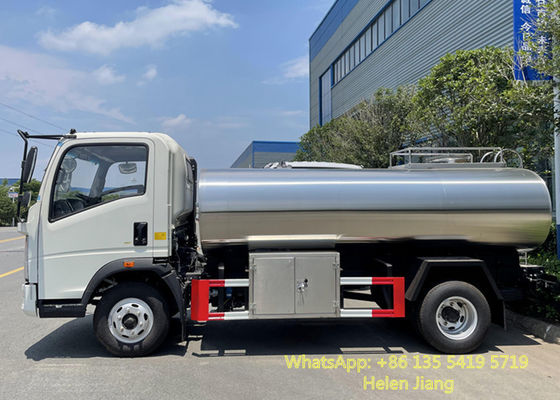

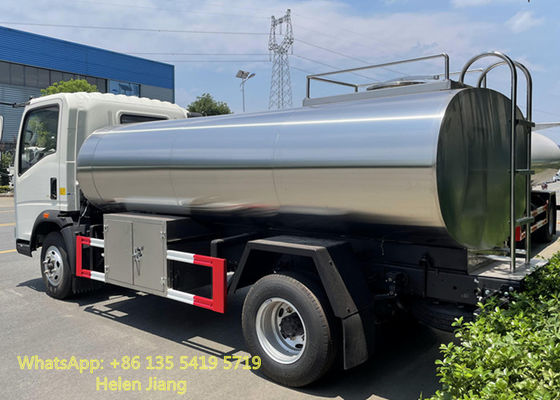

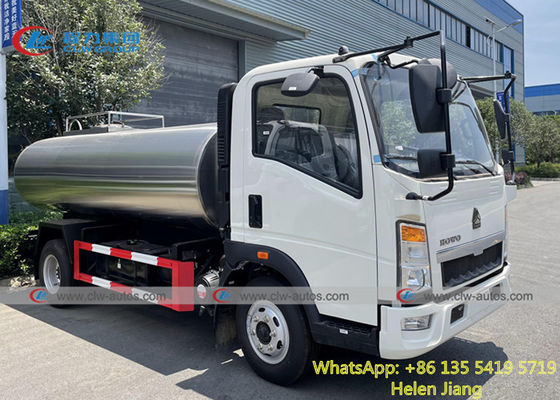

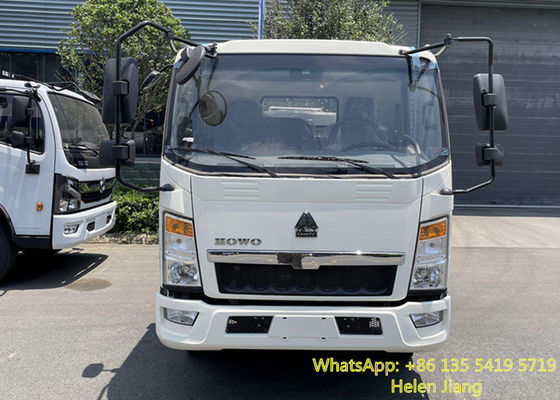

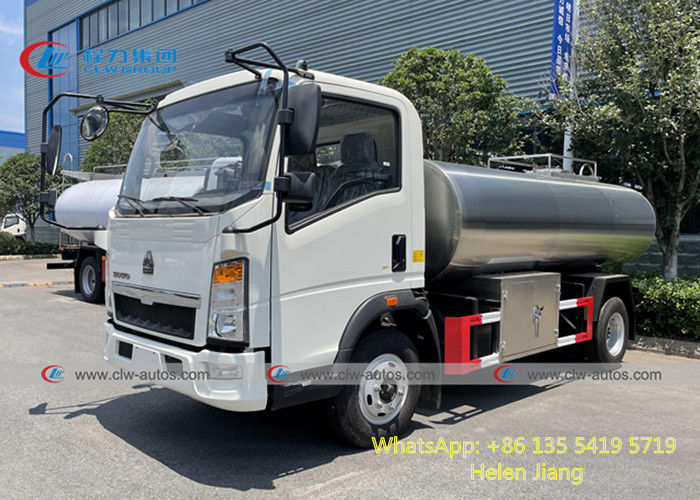

Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck

Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck
Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck

Large Image :  Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20210726

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Tanker Material: 304 Stainless Steel Product Name: Fresh Milk Delivery Tank Tanker Truck Trailer
Drive Type: 4X2 6 WHEELS 6 WHEELER Drive Model: Left Hand Drive, Or Right Hand Drive
Loading Capacity: 3000Liters, 4000Liters, 5000Liters, 3CBM, 4CBM, 5CBM Truck Brand: Sinotruk/Sinotruck HOWO, Isuzu, FAW, FOTON, Jac
Tuck Type: Fresh Milk Delivery Transport Truck, Other Equipment: Charging/discharging Valves. Manhole
Equipment: Thermal Insulation Layer, Automatic Cleaning Ball
High Light:

SS304 Milk Transport Truck

,

5000L Milk Transport Truck

,

Sinotruk Howo 4x2 Milk Delivery Truck

Sinotruk HOWO 4X2 5000L Milk Transport Tanker Stainless Steel Fresh Milk Delivery Tank Truck




Description:



Milk trucks are also called fresh milk trucks, milk tank trucks, and liquid food trucks. The tank body is made of food-grade stainless steel plates. The outside of the tank body needs to be insulated to prevent the fresh milk from deteriorating. Add CIP (cleaning device) in each milk tank.


1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.

Cabin Driving type 4x2
1880 Standard cab, with two seats, with A/C. Left hand driven. 70° hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 5998x2150x2650
Wheel base (mm) 3360
Wheel track (front/rear) (mm) 1160/1475
Approach/Departure angle(°) 20/18
Weight in KGS Tare Weight 4000
Loading Capacity 5000
Front axles loading capacity 1x2400
Rear axles loading capacity 1x4200
Max. driving speed(km/h) 90
Engine Brand YUNNEI
Model YN4102
Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 116HP
Emission standard Euro 2 or 3 or 4
Gearbox WLY6T46, 6 forwards & 1 reverse
Clutch Diaphragm spring clutch
Steering Gear Power steering
Fuel tank (L) 120L
Tire 7.00R16 with one spare, 7 pieces
Tank specification

5,000 liters, tank thickness is 3 mm, seal is 4 mm

Tank Material: Stainless or Aluminium alloy



Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck 0Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck 1Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck 2Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck 3Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck 4Sinotruk Howo 4x2 5000L SS304 Milk Transport Truck 5

Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
