Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | 304 Stainless Steel | Product Name: | Fresh Milk Delivery Tank Tanker Truck Trailer |
|---|---|---|---|
| Drive Type: | 4X2 6 WHEELS 6 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 3000Liters, 4000Liters, 5000Liters, 3CBM, 4CBM, 5CBM | Truck Brand: | Sinotruk/Sinotruck HOWO, Isuzu, FAW, FOTON, Jac |
| Tuck Type: | Fresh Milk Delivery Transport Truck, | Other Equipment: | Charging/discharging Valves. Manhole |
| Equipment: | Thermal Insulation Layer, Automatic Cleaning Ball | ||
| High Light: | SS304 Milk Tanker Truck,5000L Milk Tanker Truck,RHD Milk Tank Truck |
||

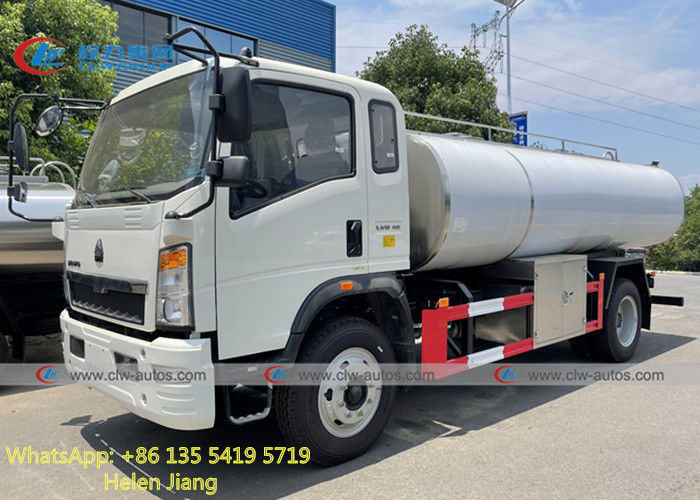

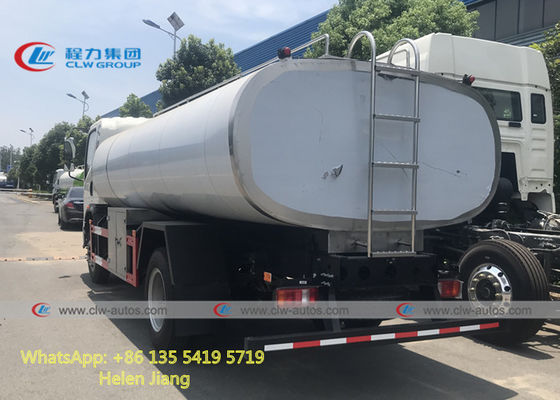

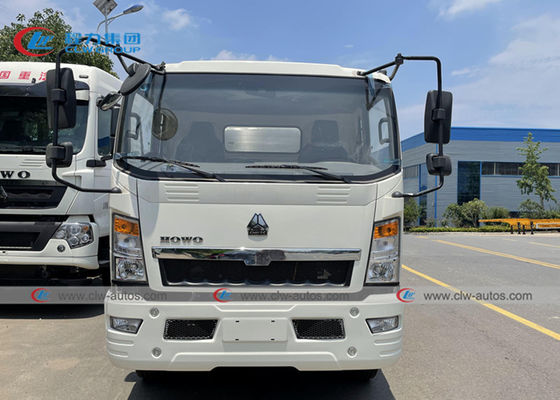

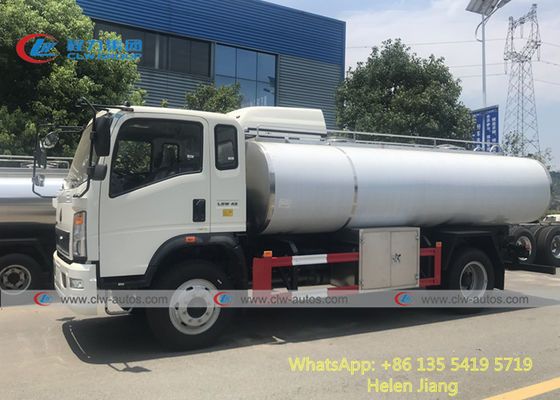

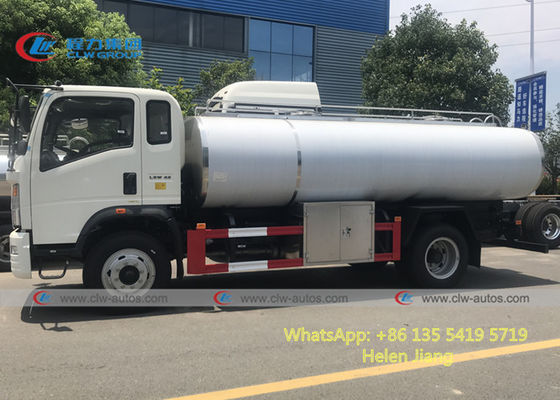

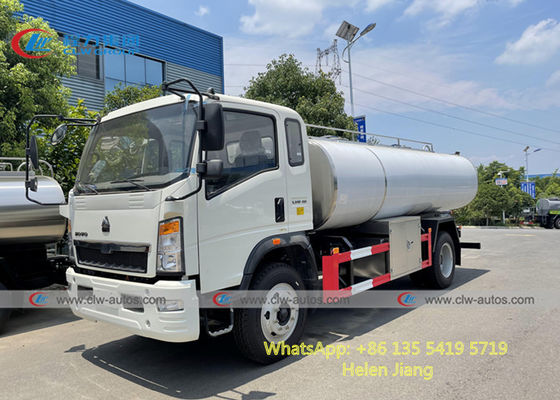

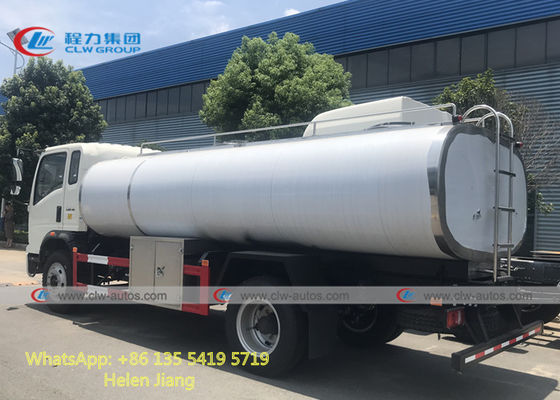

Sinotruk HOWO 4X2 RHD 5000L 5 tons 304 Stainless Steel Milk Tank Tanker Truck
Description:
Milk trucks are also called fresh milk trucks, milk tank trucks, and liquid food trucks. The tank body is made of food-grade stainless steel plates. The outside of the tank body needs to be insulated to prevent the fresh milk from deteriorating. Add CIP (cleaning device) in each milk tank.
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.
| Cabin | Driving type 4x2 | |
| 1880 Standard cab, with two seats, with A/C. Left hand driven. 70° hydraulically tillable to the front as attached photo for ref. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 5998x2150x2650 |
| Wheel base (mm) | 3360 | |
| Wheel track (front/rear) (mm) | 1160/1475 | |
| Approach/Departure angle(°) | 20/18 | |
| Weight in KGS | Tare Weight | 4000 |
| Loading Capacity | 5000 | |
| Front axles loading capacity | 1x2400 | |
| Rear axles loading capacity | 1x4200 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | YUNNEI |
| Model | YN4102 | |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 116HP | |
| Emission standard | Euro 2 or 3 or 4 | |
| Gearbox | WLY6T46, 6 forwards & 1 reverse | |
| Clutch | Diaphragm spring clutch | |
| Steering Gear | Power steering | |
| Fuel tank (L) | 120L | |
| Tire | 7.00R16 with one spare, 7 pieces | |
| Tank specification |
5,000 liters, tank thickness is 3 mm, seal is 4 mm Tank Material: Stainless or Aluminium alloy |
|
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
