Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Stainless Steel, Aluminum Alloy | Product Name: | Asphalt Truck Bitumen Sprayer Truck |
|---|---|---|---|
| Drive Type: | 6X4 10 Wheels, 10 Wheeler | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 5cbm, 6cbm, 8cbm, 10cbm, 12cbm, 15cbm Etc | Truck Brand: | Sinotruk/Sinotruck HOWO, HOHAN, FAW, FOTON, Jac |
| Tuck Type: | Road Construction Paving Bitumen Truck | Other Equipment: | Charging/discharging Valves. Manhole |
| Equipment: | Pump, Hydraulic Motor, Oil Pump | Sprinkle Speed: | 0.2 To 3 Liters / Square Meter |
| Sprinkle Width: | 6 Meter | ||
| High Light: | 10M3 Asphalt Paving Truck,8M3 Asphalt Paving Truck,Sinotruk Howo Road Construction Truck |
||

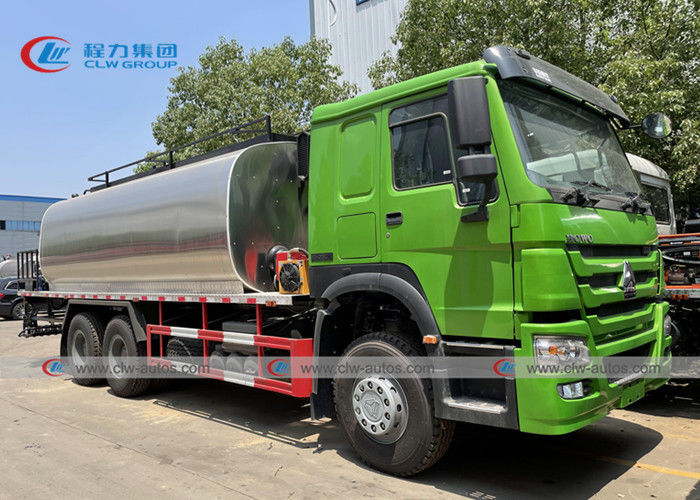

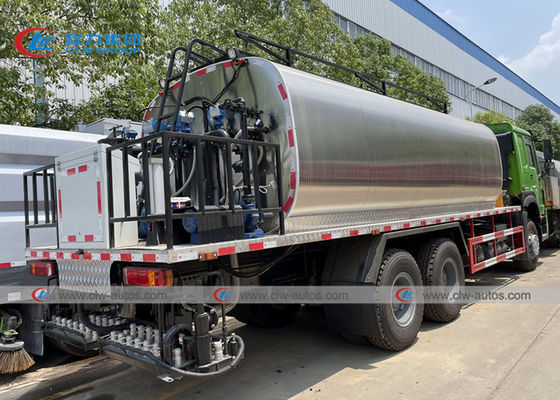

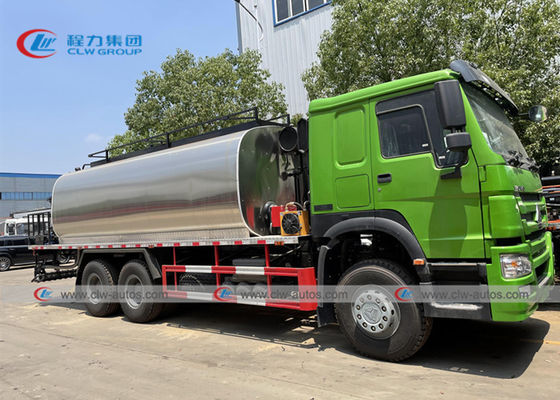

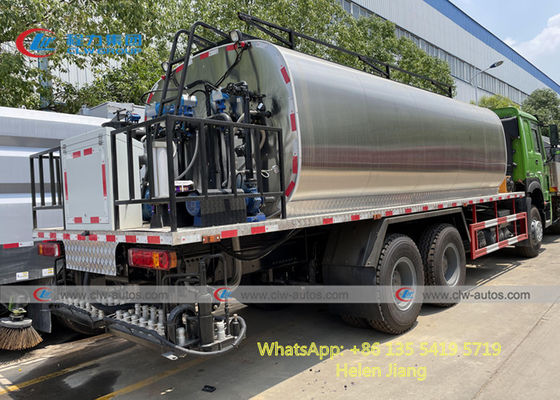

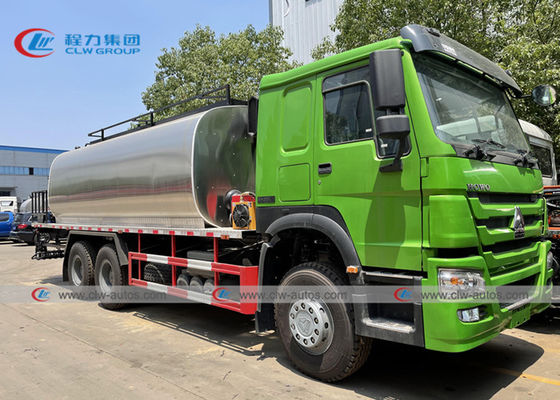

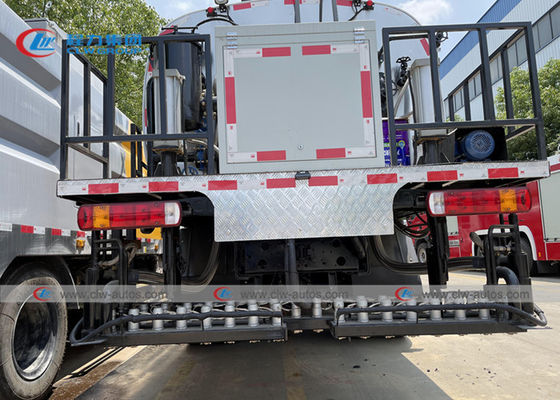

Sinotruk HOWO 6x4 10 wheels Sinotruk 8 Cbm Road Construction Paving Bitumen Truck 10CBM Asphalt Distributor Truck
Description of the asphalt distributor truck
Chassis brand: Dongfeng , SINOTRUK HOWO, JAC, Beiben etc
Driving type: left hand drive, right hand drive
Axle: 4x2, 6x4 , 6x2, 8x4
Tank volume: 3000 liters, 5000 liters, 6000 liters, 8000 liters, 10000 liters etc
Application of the asphalt distributor truck
It's widely used in the road construction. Can spay asphalt to the road very fast and uniform
| SINOTRUK HOWO 6x4 16m3 asphalt spraying truck | |||
| Chassis | ZZ1257 | ||
| Color | Red ,White, Yellow or optional | ||
| Drive type | 6x4,left hand drive | ||
| Dimensions | |||
| Wheel base | 4600+1350mm | ||
| Overall Dimension | 10200x2500x3450mm | ||
| Tank volume | 16m3 | ||
| Weights | |||
| Payload weight | 16000kg | ||
| Curb weight | 16000kg | ||
| Front /Rear tread | 2022/1830/1830mm | ||
| Front/rear overhang | 1500/2750mm | ||
| Approach/Departure angle | 16/13(°) | ||
| Engine | |||
| Engine model | WD615.87 ,Euro 2 | ||
| Engine horsepower | 290HP | ||
| Engine manufacturer | SINOTRUK Group | ||
| Displacement | 9726L | ||
| Drive Line | |||
| Cluth description | Dry single plate, hydraulic control booster, mechanical operation | ||
| Transmission | HW19710/10 forwarder,2 reverse gear, Manual operation |
||
| Braking system | Service brake | air brake | |
| Axles | |||
| Front Axle-Model | HF7, 7 ton | ||
| Rear Axle(drive axle)-Model | Double ST16, 16 ton x 2 | ||
| Tire specification | 12.00R22.5, 10 tires+1 spare tire | ||
| Special function of asphalt distribution truck | |||
| Asphalt tank | Material: | 4mm steel plate.120mm insulation layer, stainless steel outside .it can prevent the heating losing | |
| Tanker volume | 16m3,one φ440mm manhole | ||
| Thermal asphalt | 160-180 centigrade | ||
| Asphalt pump | Model | QGB950 | |
| Flow | 57m3/h | ||
| Rated speed | 583rpm/min | ||
| Resolve pressure | 0.8MPA | ||
| Hydraulic pump | CBQ563-L | ||
| Control method | Semi intelligence control | ||
| Spray width | 6m | ||
| Asphalt intelligent nozzle | 48units | ||
| Heating method | Heat conducting oil automatic heating | ||
| Burner | G20, imported from Italy | ||
| Heat conducting oil pump | 40-25-160 | ||
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
