| Tipper Body: | U-SHAPE, Or Square Shape | Product Name: | Used Or New Dump Truck, Tipper Dumper Truck |
|---|---|---|---|
| Drive Type: | 6X4 10 WHEELS 10 WHEELER | Drive Model: | Left Hand Drive |
| Loading Capacity: | 20 Tons, 25 Tons, 30 Tons, 20T, 25T. 30T | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, ISUZU, Jac |
| Tuck Type: | Front Tipping, Or Middle Tipping | Hydraulic: | HYVA |
| Condition: | USED, OR BRAND NEW FOR OPPTION | ||
| High Light: | 30T Heavy Duty Tipper,10 Wheeler Heavy Duty Tipper,ISUZU 6x4 Heavy Duty Dumper |
||

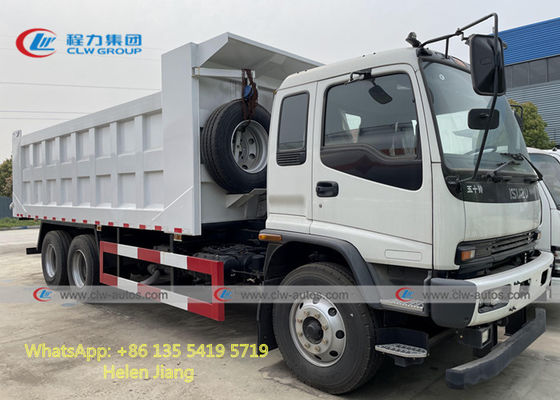

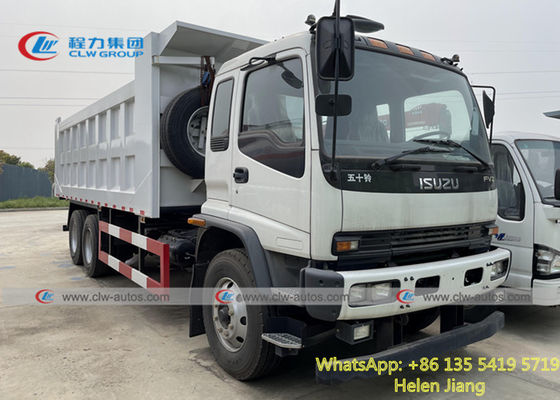

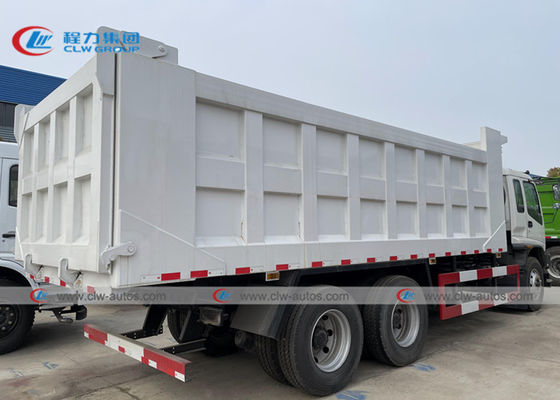

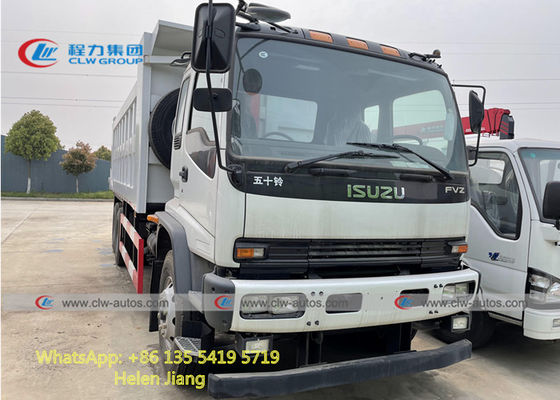

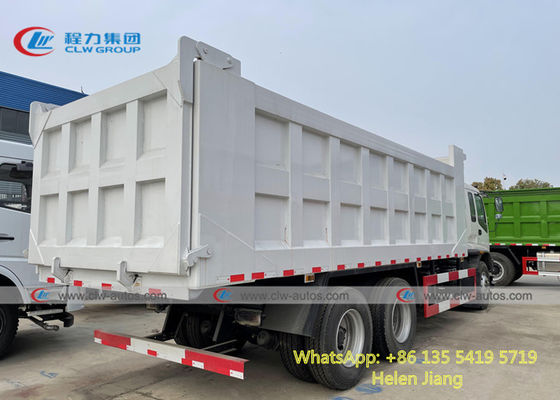

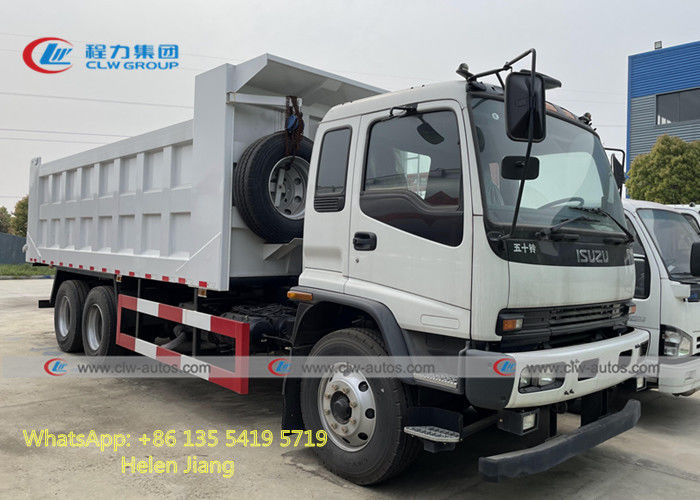

ISUZU 6X4 10 Wheeler 30Tons Heavy Duty Tipper Dumper Dump Truck
Product Description
A dump truck is a vehicle that unloads cargo by hydraulic or mechanical lifting. Also known as the dump truck. It consists of a car chassis, a hydraulic lifting mechanism, a cargo compartment and a power take-off device.
The compartment of the dump truck is tilted backwards and laterally tilted. The piston rod movement is controlled by the operating system, and the backward tilting is more common. The piston rod is pushed to tilt the carriage, and a few are tilted in two directions.
Shape classification
Single-bridge dump truck, double-bridge dump truck, flat-head dump truck, pointed dump truck, front four rear eight dump trucks, double-bridge semi-trailer dump trucks, three-bridge semi-trailer dump trucks.
Variety classification
1. Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,ISUZU,FOTON...
2. Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand
3. High tensile steel for dumper materia,4mm,6mm,8mm, 10mm oer as per client's request and purpose.
4. Used in construction site for transportation of mineral,stone,sand and so on.
| Model | QL3250U1QDZY Driving type: 6*4 left hand driving | ||
| Engine | Make: ISUZU | ||
| Diesel 4-stroke direct injection diesel engine, electronic control common rail | |||
| Engine model: 6UZ1-TCG50 | |||
| 6-cylinder in-line with water cooled, turbo-charging and intercooler | |||
| Maximum output: 380 HP (279 Kw) | |||
| Maximum torque: 1800 Nm | |||
| Displacement: 9.839 L | |||
| Transmission | ZF8S2030TO, 8 forwards and 1 reverse, mannual | ||
| Front Axle | F075, 7.5 Ton Loading Capacity | ||
| Rear Axle | RT210, 21 Tons Loading Capacity, Speed Ratio 3.07-5.571 | ||
| Chassis | Frame: U-profile parallel ladder frame, and reinforced subframe 320×90×8mm | ||
| Front suspension: Semi-elliptic leaf springs | |||
| Rear suspension: Semi-elliptic leaf springs | |||
| Aluminium fuel tank: 600 L capacity with locking fuel cap, fitted to the off side of the chassis | |||
| Wheels & Tyres | Tire: 315/80R22.5, 12.00R22.5 for option | ||
| Driver's Cab | ISUZU GIGA Flat roof cab, 2 seats+1 bed, central lock, electric glass, A/C, ABS | ||
| Dimensions mm | Wheel base | 3985+1370 mm | |
| Overall length | 7900 mm | ||
| Overall width | 2500 mm | ||
| Overall height | 3500 mm | ||
| Dump box dimension | Center hydraulic lift, 5400*2300*1500mm, 18M3, Bottom 8mm, side 6mm |
||
| Weight kg | Dead weight | 12000 KG | |
| Rated Loading Capacity | 16500 KG | ||
| Gross vehicle weight(GVW) | 28500 KG | ||
| Front axle loading capacity | 7500 KG | ||
| Rear axle loading capacity | 21000 KG | ||
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
