| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Axle: | FUWA, BPW, L1, HJ Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Oil Tanker: | 42M3, 42 Cubic Meters, 42000 LITERS |
| Compartment: | 2 3 4 5 6 Compartments | Front Axle: | 13 Tons, Or 16 Tons, Front Axle Liftable |
| Suspension: | Air Suspension | Transport: | Fuel, Oil, Diesel, Gasoline, Petrol |
| Equipment: | 3 Axle, Front Suspension With Air Bag | Tank Capacity: | 42M3 45M3 46M3 48M3 50M3 55M3 60M3 |
| High Light: | 42CBM Fuel Tanker Trailer,CCC Air Suspension Fuel Tanker Trailer,42CBM Oil Tanker Trailer |
||

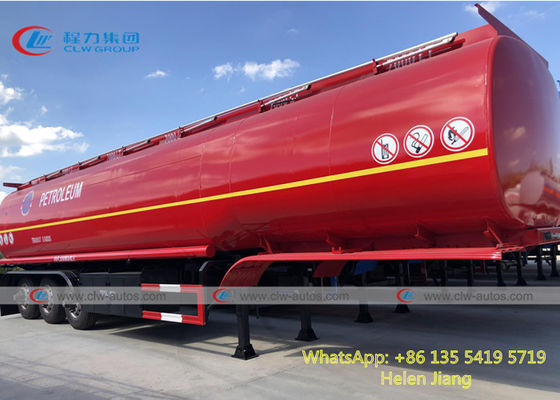

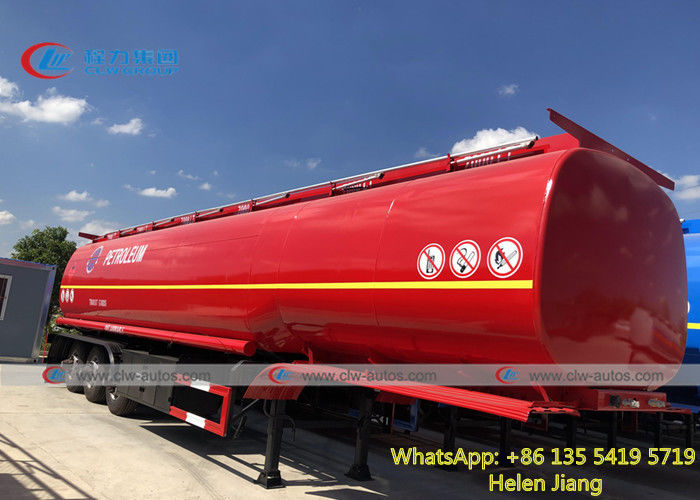

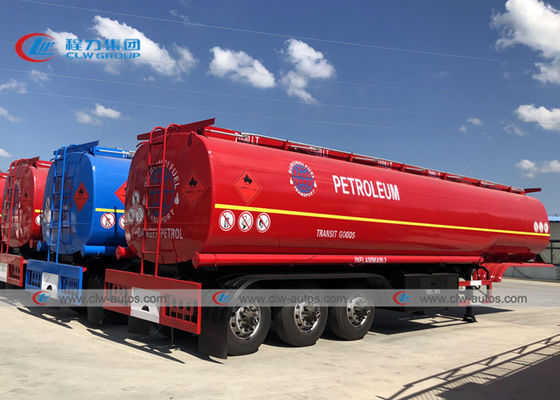

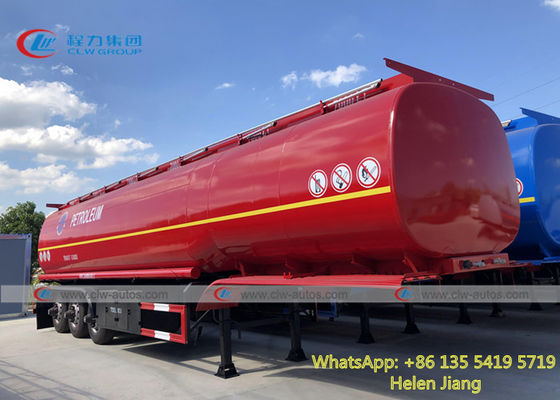

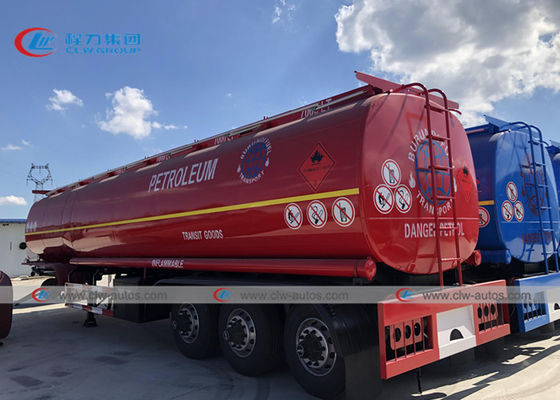

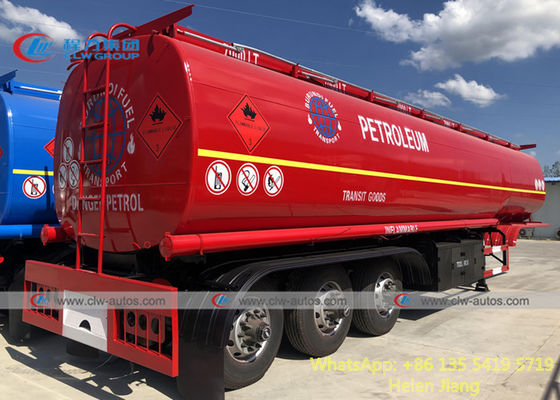

Tri Axle 42CBM 42m3 42000Liters Air Suspension Fuel Oil Transport Tank Trailer With 6 Compartments
Description:
** Tank material could be carbon steel, stainless steel, alluminum...
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** Bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve...
** Tube or tubeless tyres, off-road single tyre for bad roads.
1. Purpose: It used for transporting all kinds of chemical liquid such as diesel and gasoline etc.
2. Main parts: Axle, Bottom valve, pipeline and liquid line.
3. Tank material for optional: Carbon steel, Stainless steel 304, Stainless steel 316, Stainless steel 316L and Aluminium alloyetc.
4. Available tank volume: 38CBM - 60CBM/2 Axles/3 Axles/4 Axles
5. Axle brand: China famous brand FUWA/China brand L1/Germany brand BPW.
product Specification
| Main Dimensions | ||
| Overall Length | 11240mm | |
| Overall Height | 2800mm | |
| Tare Weight | 11500KGS | |
| Loading Capacity | 42m3 | |
| Photo only for reference, final product can be made according to exact requirements | ||
| Tank Body | ||
| Shape | Mono block Cylinder | |
| Total Volume(m3) | 4wCBM | |
| Tanker Body Material | 6mm steel / Q235 high tensile strength steel | |
| End plate | 6mm steel sheet/Q235 high tensile strength steel | |
| Manhole cover | Aluminum alloy API manhole cover, ∮500mm ,6 sets with 6 breather valve | |
| Bottom Valve | 1-6 sets of Aluminum API Pneumatic Bottom Valve | |
| Discharging valve | 1-6 set ∮100mm discharging valves | |
| Discharging Pipe | 4”rubber hose, 2 pcs, 6m long | |
| Chassis | ||
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | |
| Axle | 3 axles, | |
| BPW or FUWA 13 Ton | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| King Pin | JOST brand 2” bolt-in king pin | |
| Suspension | Air suspension | |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |
| Wheel rim9 | 9.25R22.5 wheel rim, 13 pieces | |
| Tire | 315/80R22.5 tubeless tire with one spare tire, 13 pieces | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Our service
Before purchasing:
After purchasing:
After-sales service:
1- English Operation Video
2- Free operation and technical train at factory but not include accommodation
3- Spare parts supplied at factory price whenever needed.
4- Engineers can be sent to your country and offer local engineering support and train.
