Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch(mm): | 4.0mm; 5.0mm; 6.0mm | Drive Model: | 4X2/6 Wheels/4*2 6 Wheeler |
|---|---|---|---|
| Wheelbase(mm): | 2300mm; 2306mm; 2360mm; 2400mm | Screen Size: | 6m2; 6.5m2; 7m2; As Per Chassis Size |
| Picture Tube Chip Color: | Full Color And Monochrome | Generator: | 8kw; 10kw; 12kw; 15kw; 18kw; 20kw |
| Generator Fuel Type: | Diesel/Gasoline | LED Screen: | SMD P4 P5 P6 P8 P10 For Optional |
| Loudspeaker: | 40W; 60W; 80W; 100W | Lifting System: | Optional |
| Hydraulic Unit: | China Local Brand | Landing Leg: | Optional; 2 PCS Or 4 Pics |
| Fan: | China Local Brand; 2 PCS | Mobile Stage: | Optional; 4.4m2 Or As Per Customer |
| Amplifiter: | 120W; 240W; 360W; 420W | ||
| High Light: | P8 LED Digital Mobile Advertising Truck,P5 LED Digital Mobile Advertising Truck,FOTON 4x2 LED Advertising Truck |
||
SINOTRUK HOWO 4X2 Light truck P4 P5 P6 High Pixel Mobile LED Advertising Truck
Product Description
1. Purpose: For mobile advertising, products promotion, branding, concerts and so on. It can on-site display, exchange, interaction, wide publicity and gain great effective of advertising.
2. Main parts: LED screen, Generator set, Computer, Control system etc.
3. Optional items: Mobile stage, Scrolling light box.
4. LED screen: SMD P4 P5 P6 P8 P10 for optional.
5. Generator brand: China famous brand and Internation brand for optional
Specification
| Chassis | |
| Overall Dimension | 5995×2025×2900mm |
| CurbWeight | 4365kg |
| Wheel Base | 3360 mm |
| Cabin | 3 Passengers Allowed, with AirConditioner, Radio |
| Engine | BJ |
| Engine horsepower | 108HP, EURO II |
| Displacement | 2.771L |
| Max Driving Speed | 90 km/h |
| Gear Box | 6 Forward Gear, 1 Reverse Gear, |
| Tire | 7.50-16(6 pieces with one spare) |
| LED Advertising Screen System | |
| Upper Body | 1. Double sides P6 LED outdoor full color display screen, size 3840*1728 mm. On side with lifting function. The height for lifting is 1.5m 2. Rear side 1280*1440 mm outdoor monochrome screen 3. Internal and external electrical distribution box 4. Circulating ventilation and cooling systems 5. Omar Silent diesel generator set 6. One set industrial computer with control system,sound system 7. Waterproof box 4pcs, amplifier 1pc, Control Panel 1pc. 8. Waterproof aluminum plate floor |

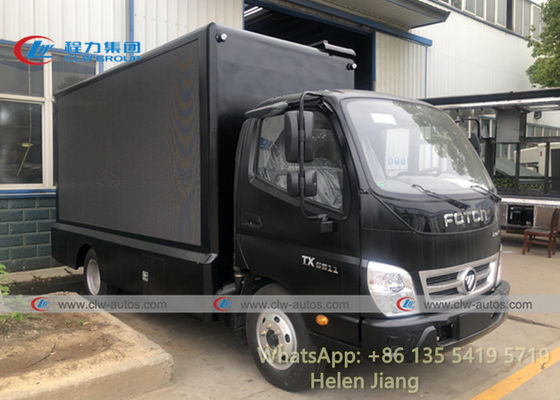

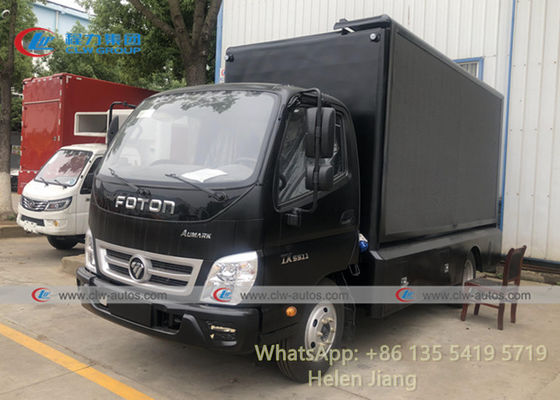

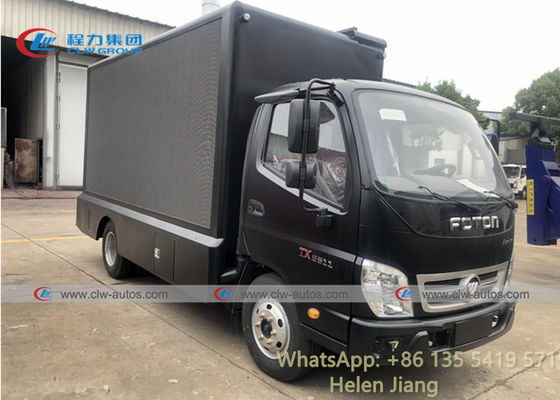

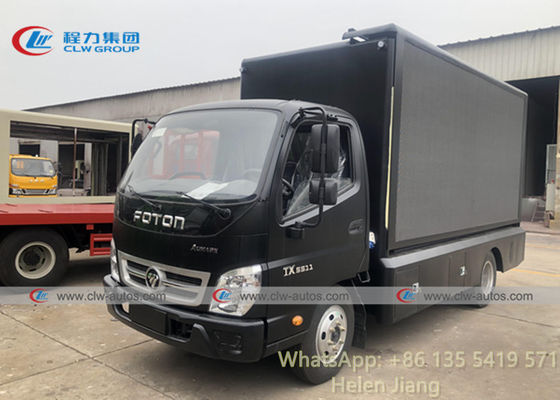

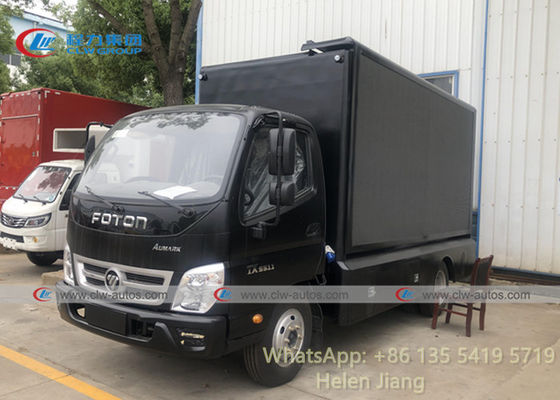

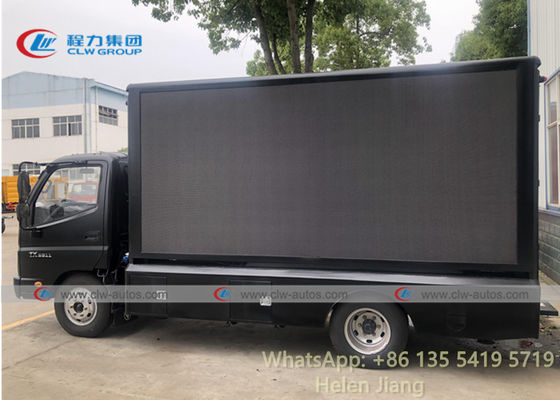

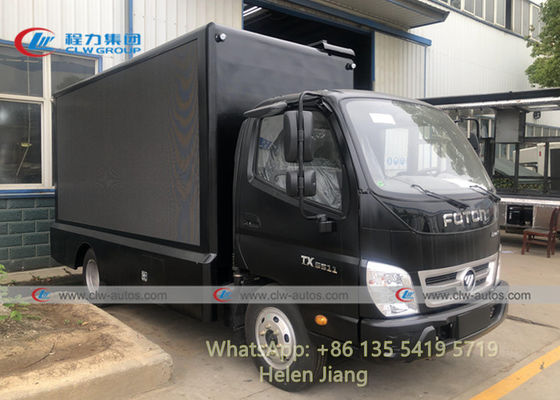

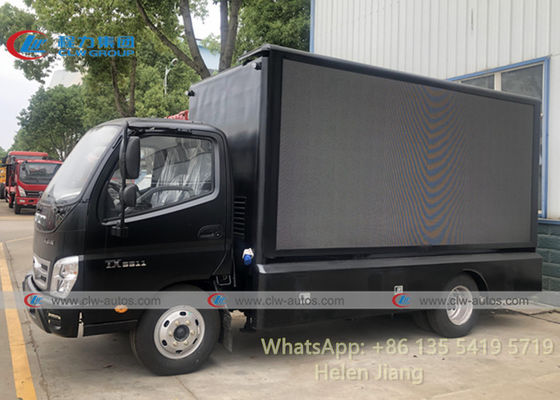

More Pictures for FOTON LED Advertising Truck:
|
The standard configuration is led outdoor high-definition LED color screen on the driver's side and toughened glass light box on the right side of the container; The rear of the container is a monochrome subtitle screen, with the size of 1280 mm * 1440 mm; Configuration in the container: engine (optional gasoline engine, diesel engine, battery power supply), console, industrial computer, LCD, power amplifier, audio, exhaust skylight, powerful exhaust fan, aluminum decorative plate interior, wooden floor, screen waterproof box, roller, etc. 1. 3sides roller glass light box |
FAQ:
| Q: How many type of screens LED advertising truck have? A: The LED advertising car can use single-sided full-color screen, double-sided full-color screen, three sided full-color screen, left single-sided full-color screen, right tempered glass roller plus spray painting, and back monochrome subtitle screen. |
| Q: What are the configuration parameters of the waterproof advertising truck? A: The advertising truck uses a silent generator, or you can choose a battery. It is recommended to use a generator, because the battery has been used for a long time, there is a lack of electricity and insufficient charging, which greatly reduces the efficiency of advertising, delays the time, and the generator voltage is stable and durable, which can ensure the normal operation and improve the work efficiency. |
| Q: What are the color screen specifications of advertising vehicles? A: Our company adopts P6, P5, P4 screen (the smaller the value, the higher the definition and the more expensive the price) and other common specifications, imported wick, two-yearS warranty. |
| Q: What are the components of the LED screen waterproof advertising truck? A: The chassis, color screen and carriage are 5cm composite steel frame box, wooden floor, internal and external power distribution box, circulating energy wind cooling system, silent generator, 1 industrial control computer with system, 4 waterproof speakers, 1 power amplifier, 1 set, optional screen lifting, stage, complete vehicle By the Ministry of industry and information technology approval advertising vehicle announcement and advertising vehicle manufacturers issued vehicle certificate! Make sure the quality of the truck. |
| Q: Which models are the advertising vehicles divided into? A: first of all, small advertising vehicles are Foton Xiangling's and Chang'an's (screen size: 2304L* 1536H(mm), 3.6 square meters of side screen and 1.22 square meters of tail screen), small and medium-sized advertising vehicles are Dongfeng tuyi's, (screen size: 2884x long, 1660mm high, 4.6 square meters of side screen and 1.64 square meters of tail screen), medium-sized advertising vehicles are Foton Kangrui, FAW Jiefang, Dongfeng frica Isuzu, etc. (screen size: side screen length 3840mm x height 1760mm, tail screen 1.8m2) |
| Q: How to deal with the operation of advertising car? A: Our factory has professional and technical personnel for free VIDEO guidance and training. |
