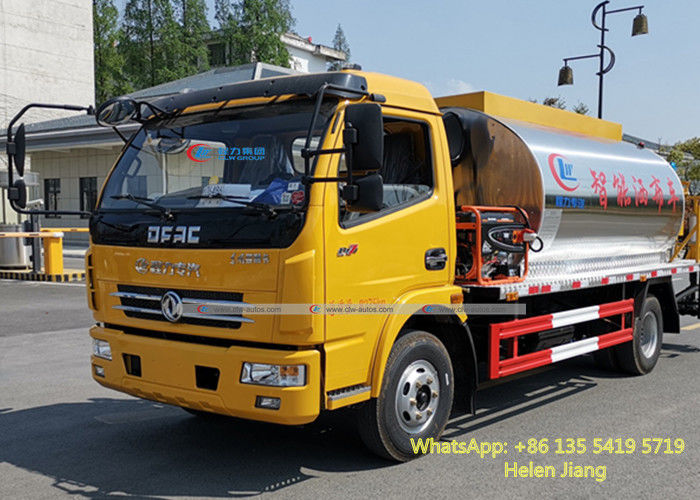

Dongfeng 4x2 6 wheels 5000L Road Paver Bitumen Asphalt Emulsion Sprayer Asphalt Distributor Truck
Description of the asphalt distributor truck
Chassis brand: Dongfeng , SINOTRUK HOWO, JAC, Beiben etc
Driving type: left hand drive, right hand drive
Axle: 4x2, 6x4 , 6x2, 8x4
Tank volume: 3000 liters, 5000 liters, 6000 liters, 8000 liters, 10000 liters etc
Application of the asphalt distributor truck
It's widely used in the road construction. Can spay asphalt to the road very fast and uniform
|
Model
|
Roadspray-5
|
|
I. Chassis
|
|
Chassis model
|
DONGFENG EQ1090
|
|
GVW (kg)
|
9000
|
|
Engine Power (HP)
|
120
|
|
II. Tank and spray
|
|
Tank capacity
|
5000L
|
|
Material
|
Q235 carbon steel coated with stainless steel
|
|
Insulate thickness
|
50mm Fiberglass
|
|
Asphalt spray rate (L/m2)
|
0.3-3.0
|
|
Nozzles number
|
35
|
|
Spray width(mm)
|
4500
|
|
III. Hydraulic and transmission system
|
|
Power take off
|
0.3-3.0
|
|
Hydraulic pump
|
CBQ/G550
|
|
Hydraulic motor
|
L2F63W2P2
|
|
Asphalt pump
|
CB450
|
|
IV. Control system
|
|
Control system
|
Integrated button control panel
|
|
V. Heating system
|
|
Generator
|
YANGBEN 2500 2KW
|
|
Burner
|
RIELLO G20, Italy
|
Brief Introduction
Automatic asphalt distributor truck is researched and developed by our company on the basis of many years of construction and equipment design experience combined with the present road conditions. It is one of the series of asphalt distributing machinery which is easy-operated, economical and practical. It is professional construction equipment specialized in spraying emulsified asphalt, cutback asphalt, hot asphalt, hot modified asphalt and various binder.
On the basis of introduced advanced technologies both domestic and abroad, this distributor add some humanized designs that ensure technical content of construction quality and improve construction conditions and environment. Heat oil pipe is equipped in asphalt pipelines. Heat oil internal heating method guarantees liquid running smooth and prevents asphalt from coke burning. In the process of manual spray, the rotation indicator reads asphalt pump rotation speed. The operator could calculate the corresponding vehicle speed and asphalt rotation speed to different spray volume according to our specified formula, so as to guarantee uniform spray volume. In the process of automatic spray, the operator just set spray volume in the console and start velocity meter, and then the automatic control system could regulate asphalt pump rotation speed according to the vehicle speed, so as to guarantee precise and even spray. Its reasonable designs guarantee the asphalt spray uniformity. This product gets through the strict detection of our operators and enjoys stable and reliable construction performance, and is known as ideal economical road maintenance equipment.
It could be used to deal with upper and lower seal layer, prime layer, asphalt surfacing, asphalt penetration surface, fog seal layer and so on. It also could be used to transport liquid asphalt and other heavy oil.
Operation principle

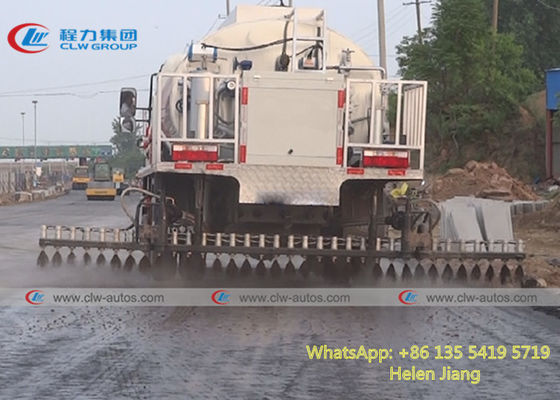

The operating principle of asphalt distributor is to pump the hot asphalt from asphalt storage pool into asphalt tank through asphalt pump; Transport it to construction site and heats the asphalt up to working temperature by heating system; Open asphalt pump and spraying valve by operating electrical apparatus control system; According to three overlapping spraying effect to spray the hot asphalt on pavement on the basis of measured distributing amount and pressure. The residual asphalt in pipeline will be transported into asphalt tank after finishing the work.

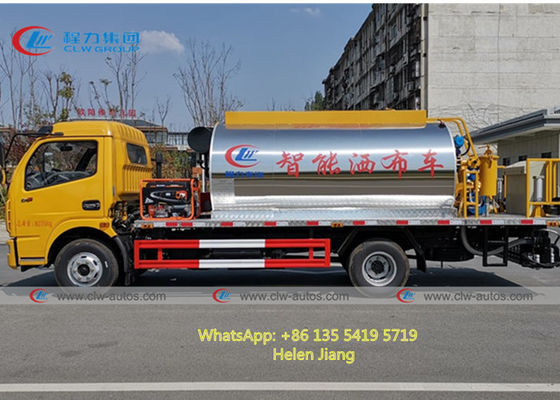

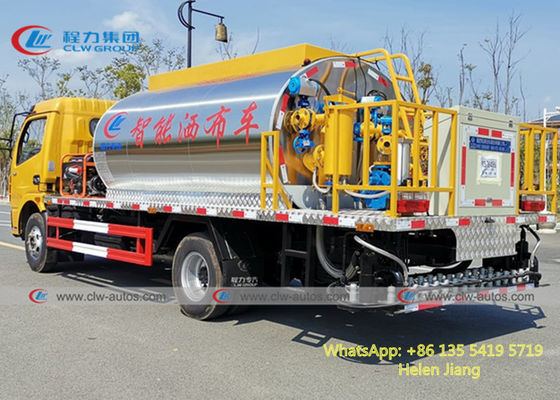

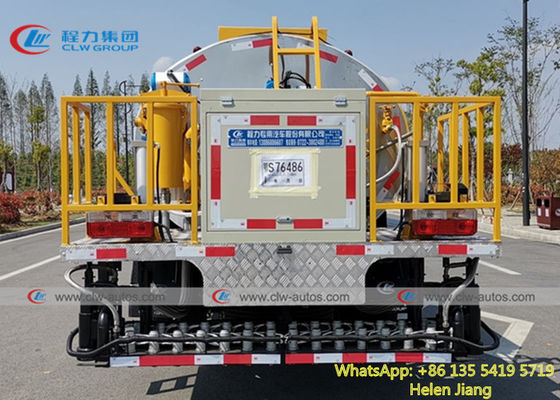

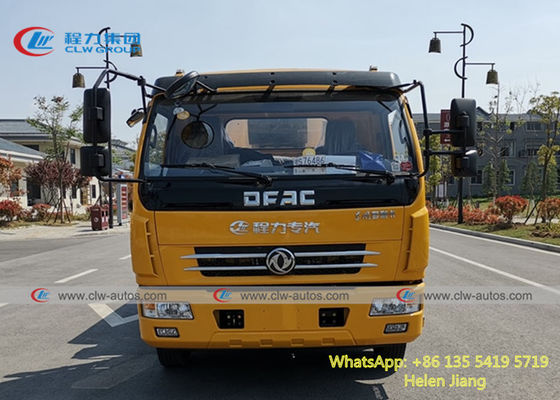

More Working pictures for Dongfeng 4x2 6 wheels 5000L Road Paver Bitumen Asphalt Emulsion Sprayer Asphalt Distributor Truck:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
