Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Product Name: | Fuel Oil Disel Gasoline Tank Tanker Truck Trailer |
|---|---|---|---|
| Drive Type: | 6X4 10 WHEELS 10 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive RHD |
| Loading Capacity: | 5Tons 10tons, 15tons, 5T, 10T, 15TONS | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac |
| Tuck Type: | Oil Delivery Transport Truck, Oil Refueling Bowser | Other Equipment: | Charging/discharging Valves. API Manhole |
| Compartment: | 5 Compartments | ||
| High Light: | 20M3 Fuel Delivery Tank Truck,371HP Fuel Delivery Tank Truck,Sinotruk Howo Fuel Delivery Truck |
||
Sinotruk HOWO 6X4 10 Wheeler 371HP 20000L 20M3 Fuel Delivery Tank Truck With 5 compartments
Product Description
product Specification
| LHD Euro II HOWO 6X4 371HP 20cbm carbon steel fuel truck parameters | ||
| Cabin |
Driving type 6x4 left hand drive 2 seats with one sleeper With A/C |
|
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H) : 9800*2496*3248 mm | |
| Wheel base: 4325+1350 mm | ||
| Overhang (front/rear): 1500/2625(mm) | ||
| Approach angle: 16° | ||
| Departure angle: 15° | ||
| Max. driving speed(km/h) | 90 | |
|
Engine |
Brand | Sinotruk |
| Model | WD615.47 | |
| Horse Power(HP) | 371 HP | |
| Emission | Euro II | |
| Displacement | 9726 ml | |
| Tire | 295/80R22.5, 10 tires+1 spare tire | |
| Axle | HF7 front axle, 2x ST16 rear axle | |
| Gearbox | HW19710,10 Forwards gear & 2 reverse gear; | |
| PTO | HW70 PTO | |
| Steering | ZF8198 | |
| Exhaust pipe | in the front | |
| Accessory | One spare tire carrier, Two fire extinguisher | |
| Color and logo | Depends on the customer's requirement | |
| Upper parameters | ||
| Fuel tank | 20 cbm | |
| Tank material | Carbon steel | |
| Thickness of the fuel tank | 5mm | |
| Compartment | 6 (4000L, 2000L ,3000L, 4000L, 2000L, 5000L) | |
| Manhole cover | Aluminium alloy European standard | |
| Bottom valve | Aluminium alloy material, 6 pieces (one compartment has one bottom valve) | |
| Discharge valve | French standard, 6 pcs | |
| Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each | |
| Valve box | 2 | |
| Walkway in the top | Carbon steel material, has diamond antiskid plate | |
| Handrail | Stainless steel material, could be folded | |
| Loading system | Up loading system | |

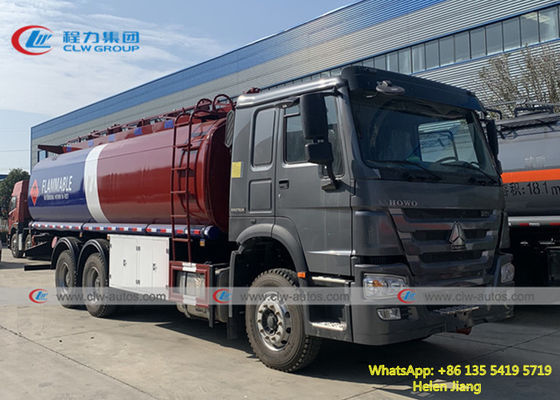

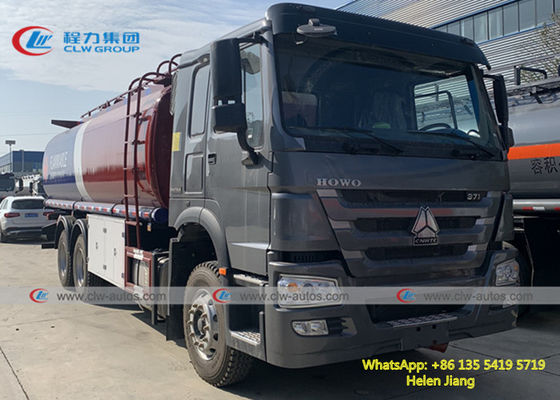

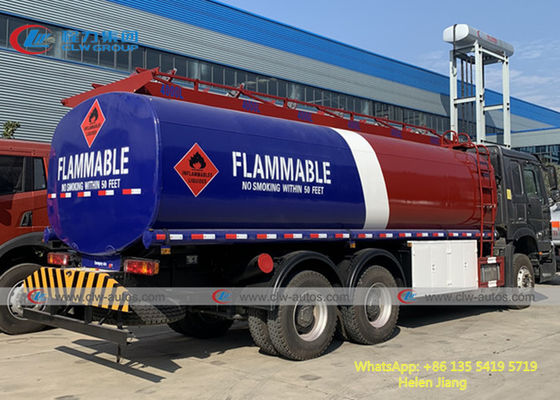

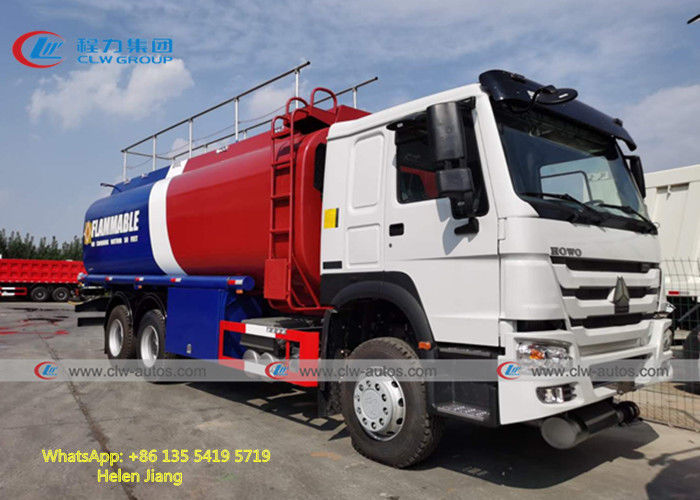

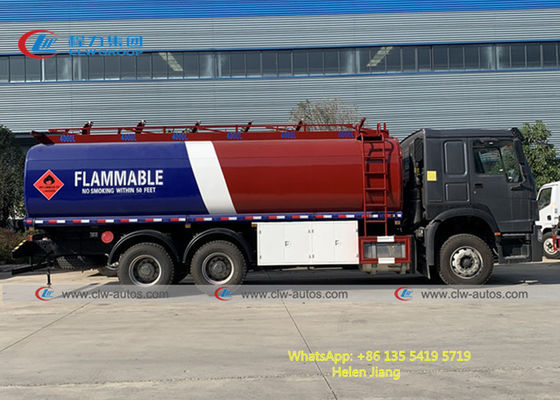

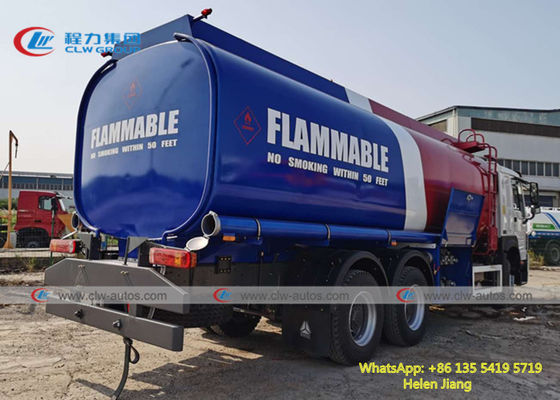

More pictures of Sinotruk HOWO 6x4 336hp 371hp 20000Liters 20cbm 20M3 20000L fuel oil tank tanker truck for sale
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
