Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Material Thickness: | 4mm To 6mm |
|---|---|---|---|
| Tank Capacity: | 20000Liters, 5300Gal | Loading Weight: | 20metric Ton |
| Truck Brand: | Dongfeng | Tire: | 11R22.5, 12R22.5. 10 Pieces With 1 Spare Tire |
| Cabin: | Left Hand Driving | Engine: | Dongfeng Cummins |
| Gearbox: | 9 Forward & 2 Reverse | ||
| High Light: | Dongfeng Kinland Gasoline Transport Truck,20000L Gasoline Transport Truck,Dongfeng Kinland Diesel Transport Truck |
||
Dongfeng Kinland 20, 000liters 6X4 Diesel & Gasoline Transport Aluminum Alloy Oil Tank Truck
Description:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators (Baffle) to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Specifications
| Item name | Unit | Parameter | ||||||||
| Model | Dongfeng brand Oil Tank Truck | |||||||||
| Dimension | mm | 9700*2490*3450 | ||||||||
| Sample Tank Dimension | mm | 7100*2460*1700 | ||||||||
| Litter | 20,000 | |||||||||
| material | Aluminum steel, 5 mm thick | |||||||||
| Option~ Stainless steel, Carbon Steel | ||||||||||
| Curb Weight | kg | 9805 | ||||||||
| G.V.W | kg | 30000 | ||||||||
| Wheel Base | mm | 4350+1300 | ||||||||
| F/R track base | mm | 1245/2755 | ||||||||
| F/R Axle-Load | Kg | 5000 / 13000 / 13000 | ||||||||
| Type | Steel Spring Type | |||||||||
| Approach/Departure angle | ° | 27/12 | ||||||||
| Traction system | Type | 6*4 | ||||||||
| Max speed | Km/h | 90 | ||||||||
| Tire Specification/Number | Model | 10.00-20 / 10 Units+1 Spare tire | ||||||||
| Engine model | Model | B210-33 | ||||||||
| Emission/Ps | 5900ml, 155 Kw | |||||||||
| Horse Power | 210 Hp | |||||||||
| Power | 700 N.m - 1500 r/min | |||||||||
| Type | Diesel, 6 cylinder, turbocharge, water cooling | |||||||||
| manufactuere | Dongfeng Cummins Engine | |||||||||
| Gear box | Type | 9F&1R, Manual | ||||||||
| Electric system | V | 24 | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Reversable, Manual | |||||||||
| Steering | Powering , LHD or RHD | |||||||||
| Installing | Mp3, Radio | |||||||||
| Air Conditioner | Hot Wind / Cold Wind | |||||||||
| Equipment | Installed | Top Installing human foldable ladder, Rear climbing ladder, Top Aluminum type Human port diameter 500mm. Bottom Output and input port with ball valve,Bottom urgent cut off valve, Tool box. China manufacturer standard |
||||||||
| Option | Refueling device, fuel dispenser | |||||||||
| Option | API Standard | |||||||||

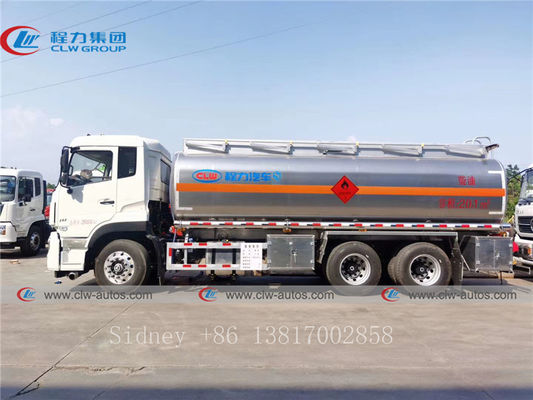

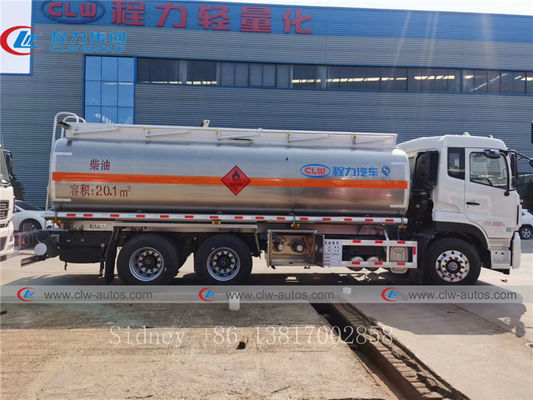

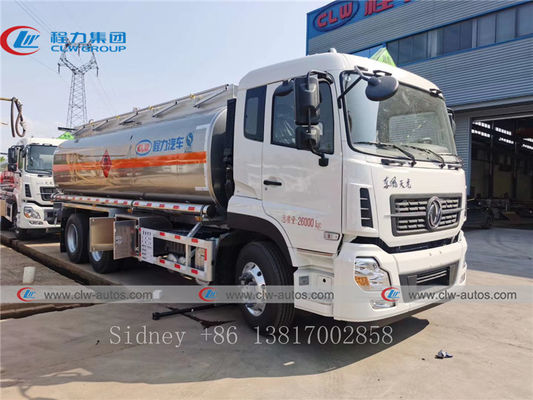

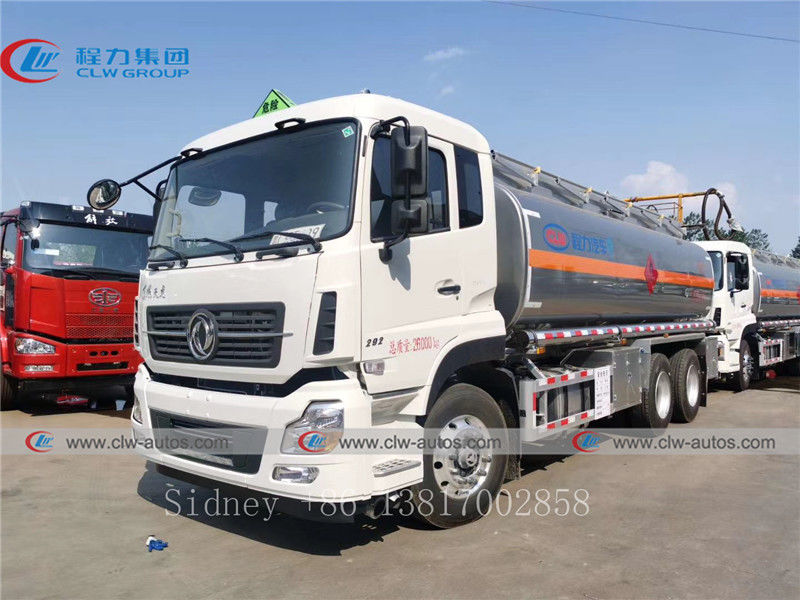

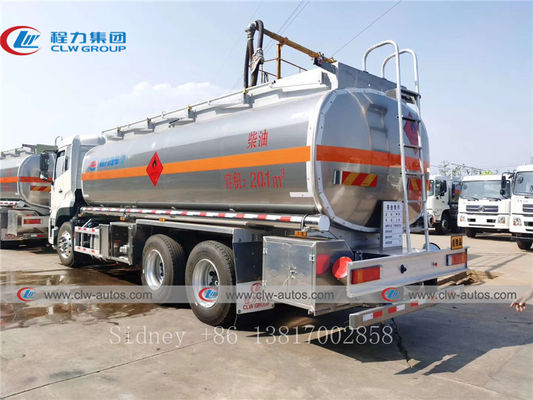

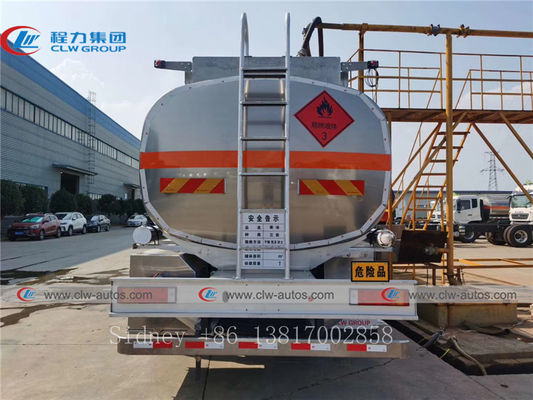

Reference photos
Parts photos
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
