Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Product Name: | Chemical Sulfuric Acid Transport Tank Tanker Truck |
|---|---|---|---|
| Drive Type: | 6X4 10 WHEELS 10 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 8000Liters, 10000Liters, 13000Liters, 8CBM, 10CBM, 13CBM | Truck Brand: | Sinotruk/Sinotruck HOWO, Isuzu, FAW, FOTON, Jac |
| Tuck Type: | Sulfuric Acid Delivery Transport Truck, Liquid Chemical Tank Truck | Other Equipment: | Charging/discharging Valves. API Manhole |
| Equipment: | Plastic Lined Inside Of Tanker, And Valves | Loading: | Liquid Chemical, Concentrated Or Dilute Sulfuric Acid |
| Storage: | Chemical Liquid For Industrial Using | Engine: | Japanese Brand,Cummins,Weichai,Yuchai |
| Warranty: | 12months For 3 Key Parts(engine, Transmission, Axle) | Emission Standard: | Euro2/3/4/5,Euro III/Euro IV/ EuroV |
| High Light: | 13M3 Liquid Tank Truck,Dongfeng Liquid Tank Truck,Dongfeng Chemical Tank Truck |
||
China Dongfeng 6x4 13000Literss 13M3 Plastic Lined Chemical Liquid Tank Truck
Product Description
This chemical vehicle transporter belongs to heavy truck special vehicles and is used to transport chemical special liquids. The Dongfeng 6X4 chassis has comprehensively improved the performance of the entire vehicle system, especially in terms of technology, safety, economy, reliability, and comfort.
Tank material can be used: carbon steel lined or stainless steel plate. It is corrosion resistant and reduces the corrosive effects of chemical liquids on cans. The shape of the tank body is elliptical, square, round and can be chosen according to your needs. And, the tank can be divided into warehouses to meet your transportation diversification. In the interior of the bin, there are also multiple plastic anti-wave separators installed inside. Through the high-pressure air tightness test, the tank body has high strength, stable center of gravity, and safe and stable vehicle performance. We have adopted a special chemical pump to ensure the efficient operation of chemical vehicles.
| Traction system | 6x4 | |
| Vehicle Main Dimensions |
Overall dimension (L x W x H)mm | 10780x2500x3400 |
| Cargo body dimension (L x W x H)mm | 8000x2100x1300 | |
| Wheel base (mm) | 5350+1300 | |
| F/R track base (mm) | 1986/1860 | |
| Approach/Departure angle(°) | 18/13 | |
| Weight | GVW (kg) | 25000 |
| Curb Weight | 10805 | |
| Load Capacity | 14000 | |
| Max. speed (km/h) | 80 | |
| Number of axles | 3 | |
| Axle load (kg) | 7000/18000 | |
| F/R over hang | 1460/2620 | |
| Allowable passengers | 3,2 | |
| Engine | Brand | Dongfeng |
| Model | B210 33 | |
| Max output power (kw) | 210 | |
| Emission standard | Euro 3 | |
| Fuel consumption/100km (L) | 32.75 | |
| Tire | Tire No. | 10 |
| Tire specification | 10.00-20 18PR,10.00R20 18PR | |
| Air condition | Yes | CD player, Radio, MP3 |
| Tank body | ||
| Loading media | Fuel and Chemical Liquid Tank Truck | |
| Tank Volume | 13-18 CBM | |
| Warranty | 12 month, from the date of supply | |
| Special configuration | 1. Chemical liquid tanker truck material can choose stainless steel,line with PE, rotational molding, fiberglass, plastic containers (polyethylene, polypropylene), aluminum, carbon steel and other materials. 2. Chemical liquid truck can choose vacuum priming pump, gear pumps, chemical pumps, stainless steel pumps, flow meter (return to zero), the single count, double count. 3. Chemical liquid truck can be divided into few compartments, aliquot different mediums. |
|

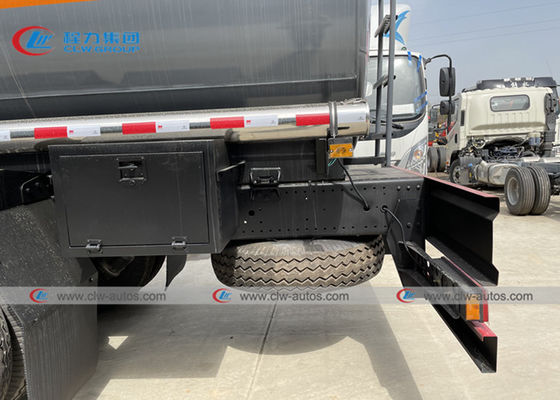

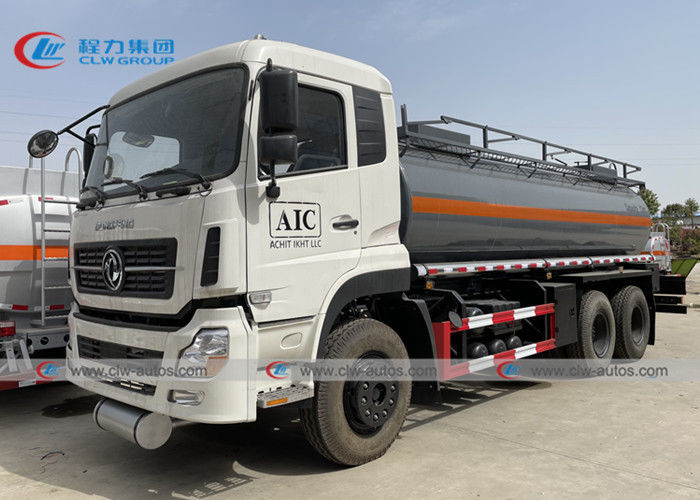

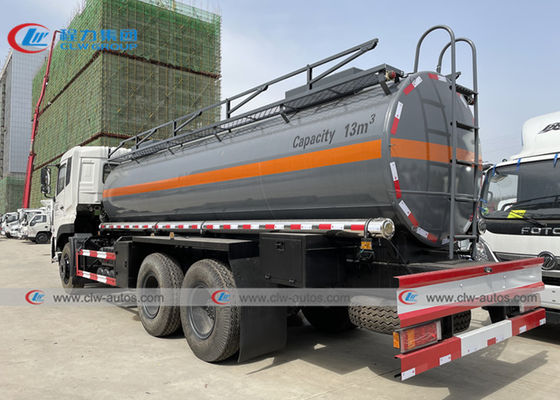

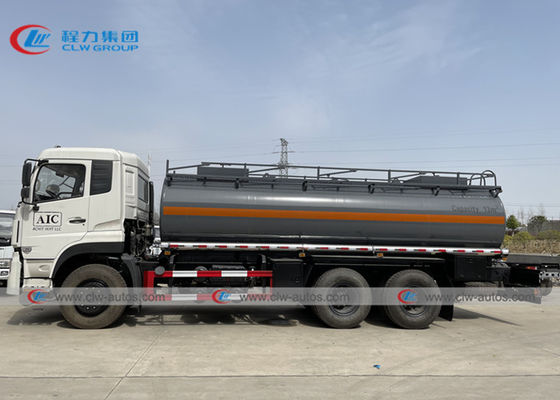

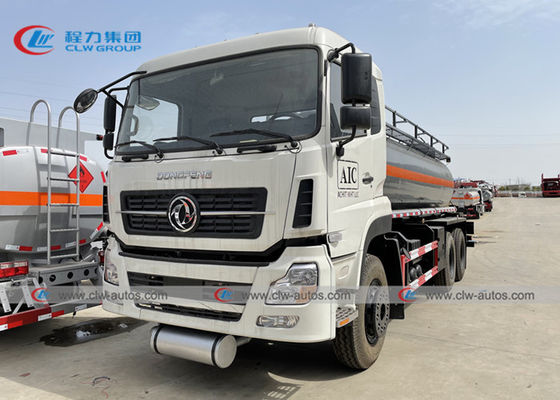

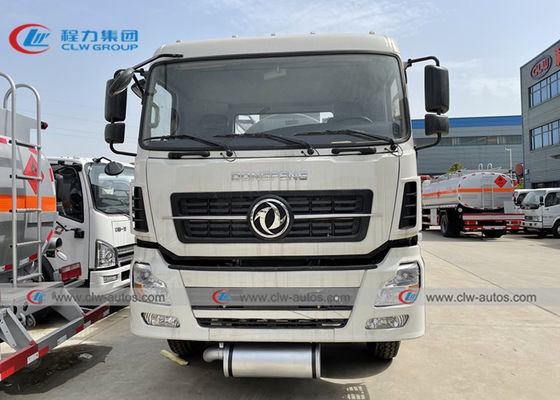

The detailed pictures of China Dongfeng 6x4 13000Literss 13M3 Plastic Lined Acid Chemical Liquid Tank Truck:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
