Product Details:
Payment & Shipping Terms:
|
| Tank Material: | Carbon Steel | Tank Capacity(CBM): | 30CBM 32CBM 34CBM 40CBM 45CBM 50CBM |
|---|---|---|---|
| Loading Medium: | All Kinds Of Bitumen | Axle: | FUWA/L1/Germany Brand BPW |
| Axle Quantity: | 2 Axles/3 Axles | Burner: | International Brand Italy Riello |
| Thermometer: | China Local Brand/International Brand | Level Gauge: | Optional |
| High Light: | 50000L Tanker Semi Trailer,CCC 3 Axle Tanker Semi Trailer,50000L Asphalt Delivery Truck |
||
3 Axle 50000Liters 50tons Asphalt Bitumen Transport Stainless Steel Tanker Semi Trailer
Product Description
1. Purpose: It used for transporting heated bitumen, emulsified bitumen and modified asphalt.
2. Main parts: Burner, Thermometer, Level gauge.
3. Tanker semi trailer composed of sealed tanker, climbing ladder, running gear (including axles, tires, landing gear, valve,pipeline system, heating system,etc.
4. This Tanker is applied to transport liquid bitumen in a short or long distance. It's an ideal equipment to transport bitumen from storage field or plant to construction site and operation road,etc.
5. The trailers are made by advanced techniques from both Europe and China
6. The key parts equipped with high quality fittings both domestic and overseas
7. Skeleton fasten by strength welding process
8. Safe and reliable driving for any bad road conditions
9. The tank equipped with heating system and insulation layer that can keep continuous heating for bitumen and keep warm loss by insulation layer.
10. Easy maintained and durable
Specification
|
STAINLESS STEEL ASPHALT/BITUMEN TANK SEMI TRAILER SPECIFICATIONS (3 axle heating bitumen tank semi trailer) |
Remark | |
| Overall dimensions (L*W*H) | 12990*2495*3995 mm | Cylinder shape |
| GVW | Approx 62550 kg | |
| Mass in working order | Approx 12550 kg | |
| Max loading | Approx 50000 kg | Water load at 20ºC |
| Axle specification | 13T×3pcs | FUWA axle |
| Suspension system | Mechanical suspension | Optional air suspension |
| Tire specification | 11.00R22.5×12pcs (tubeless tire), | Optional radial tire. (11.00R20). |
| King pin | 90 # (3.5") JOST | Opting 2" 50# |
| Landing leg | 28T load landing leg | JOST |
| Braking system | WABCO Duplex line pneumatic brake | |
| Voltage | 24V (7 lines) | |
| BITUMEN TANK SPECIFICATION | ||
| Tank capacity | 50000 L (water load at 20 °C) | |
| Tank shape | Cylinder shape | |
| Material | Mild steel Q345B | |
| Thickness | 6 mm thickness | |
| End Enclosure | 6 mm thickness | Flanged flat head |
| Washplate | 4 mm thickness | |
| Insulated | 100 mm thickness | Fiber glass rock wool |
| Outside material | Stainless steel 1 mm thickness | |
| Flue Pipe | 2 pcs | |
| Firebox | 2 pcs | |
| Model of Burner | 1 unit | Optional 2 unit type. |
| Thermal Power of Burner | 200 thousand kcal | |
| Model of Generator | 1 unit | |
| Model of Electric Control Cabinet | PLC-3 | |
| Manhole | 2 units DN500 mm | |
| Asphalt Protective Frame | 800*750*150 mm | With asphalt flooding pipe DN50 |
| Thermometer | 0~300 | |
| Working temperature | 250 ºC | |
| Working pressure | 0.9 Bar | |
| Painting | Sand blasting before painting; two coats of primer, anti corrosion, two coats of finish painting. | AS REQUIREMENT |
| ACCESSORIES | ||
| Mudguards | PVC Mudguards | |
| Side protection | Nil. | |
| Fire extinguishers carriers | 2pcs | |
| Guardrail of Ladder | W=400 mm | |
| Ladder | Front back ladder | |
| Spare tire carrier | 2 pcs | |
| Spare water tank | optional | |

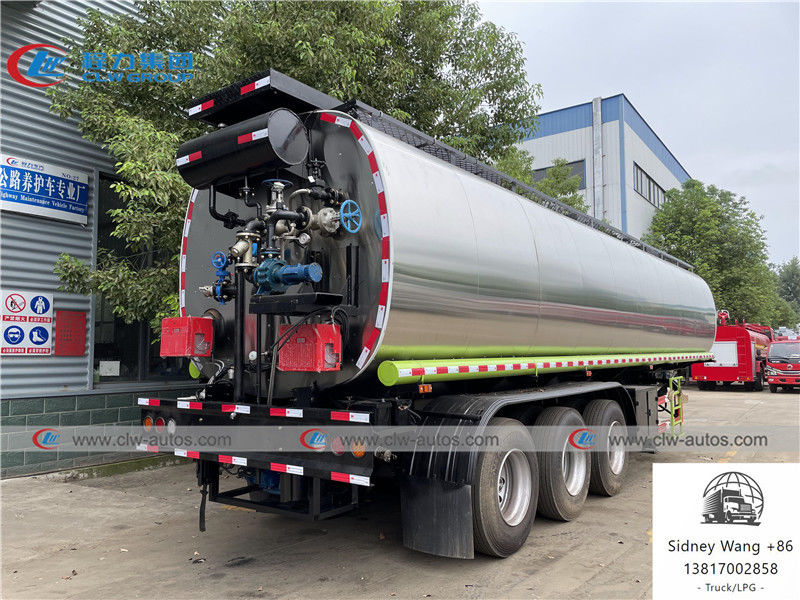

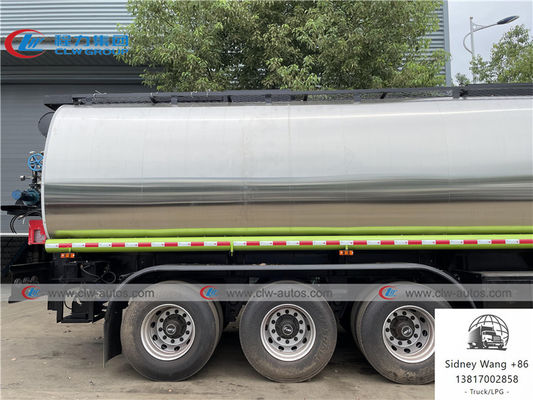

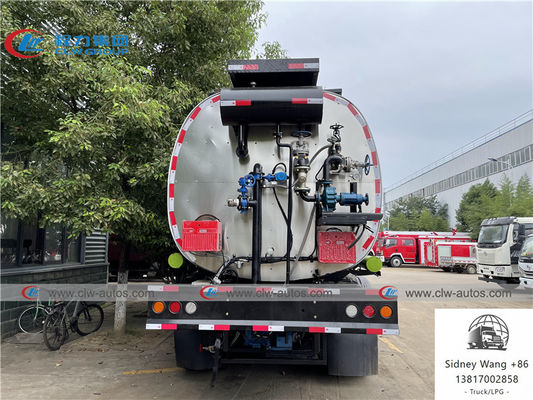

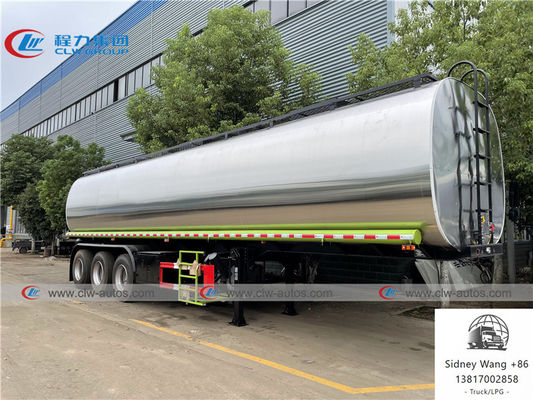

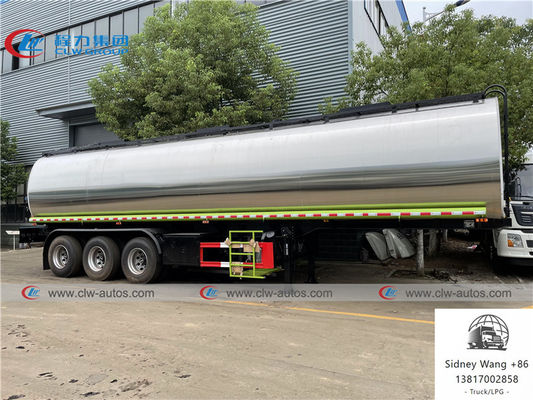

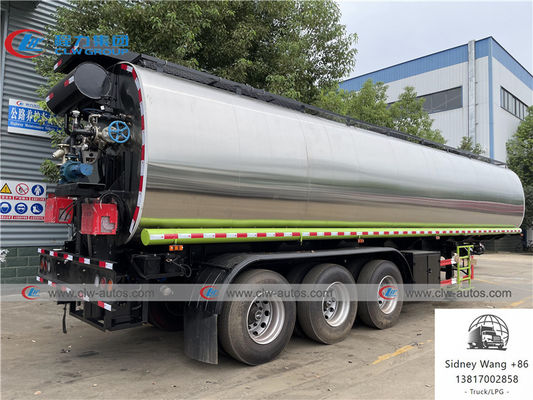

Reference photos
Factory overview
Sucessful Case
FAQ
Q1: What kinds of bitumen truck and trailer I can order from your company?
A: We can supply 4CBM to 35.5CBM Bitumen tank truck, and 34CBM to 50CBM Bitumen tank trailer, it's only for bitumen storage and transportation. We also can supply 4CBM to 35.5CBM Bitumen distribution truck and all kinds of Synchronous Chip Sealer. As for
Q2: Can we adopts International brand for the key parts of this kind of bitumen tank truck and trailer?
A: Sure. All key part of our bitumen tank truck and trailer all adopts Internation brand. Eg: We always adopts Italy brand Riello brand burner.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
