Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Foton, JMC, Howo, Dongfeng, Isuzu, JAC, Etc. | Gearbox: | 5 Forward & 1 Reverse Gear |
|---|---|---|---|
| Tank Material: | Carbon Steel, Stainless Steel Or Aluminum Alloy | Tank Volume: | 5M3, 10M3, 15M3, 20M3, 25M3 |
| Tank Shape: | Square Round, Round | Transport Oil Type: | Diesel, Petrol, Gasoline, Oil, Etc. |
| Oil Pump: | Chinese Famous Brand | Oil Dispenser: | Chinese Famous Brand |
| Hose Reel With Filling Gun: | 15 Meter (Length Can Be Longer As Per Request) | Oil Vapor Recovery System: | Optional |
| Delivery Time: | 35 Days | Color: | Customized |
| Warranty: | 1 Year | ||
| High Light: | 5cbm Fuel Transport Truck,Dongfeng Duolica Fuel Transport Truck,Dongfeng Duolica Gasoline Transport Truck |
||
Product Description
Fuel truck, also called fuel bowser, fuel tanker truck, fuel dispensing truck, fuel tanker, fuel transport tanker truck, oil truck, oil tanker truck, oil dispenser, oil transport, diesel truck, heavy oil tanker truck price and etc.
1. Purpose: It is used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2. Refueling System: Oil pump, Oil dispenser machine and Hose reel with filling gun, etc.
3. Advantage: High quality with competitive price.
4. We can supply fuel truck, refueling truck from 4000L to 40000L.
5. According to your requirements, it has functions of oil-absorbing, oil-pumping, separation variety of oil, separation packing of oil.
6. The tank material can choose carbon steel or 304 stainless steel or aluminum alloy.
7. Optional Chassis Brand: Dongfeng, Fonton, JMC, Sinotruk Howo, Shacman, FAW and etc.
8. Factory direct sale, high quality and good price.
Product Specification
| Description | DONGFENG 5000L/5cbm 4X2 Fuel tank Truck | |
| Drive Model | Left hand 4X2 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 5990*1960*2400 |
| Wheel base (mm) | 3300 | |
| Overhang (front/rear) (mm) | 1032/1658 | |
| Wheel track (front/rear) (mm) | 1506/1466 | |
| Approach/Departure angle(°) | 12/18 | |
| Weight in KGS | Curb Weight | 3365 |
| GVW. | 6495 | |
| Max. driving speed(km/h) | 80 | |
| Engine | Model | CY4102-C3F |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 95HP | |
| Emission standard | Euro III | |
| Gearbox | 5 forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 100 | |
| Tire | 7.00-16 tire , 6 pcs+1 spare tire | |
| UPPER STRUCTURE | ||
| Tank volume | 5000L 5cbm 5m3 | |
| Protective material | Q235 carbon steel | |
| Tank meterial | <5mm> carbon steel | |
| Equipment | 1.Equipped with CLW pump .valves and pipes,a set of Fuel Dispenser | |
| 2.Fueling truck equipped with a set of filling unit | ||
| 2.Equipped with a ladder on tank | ||
| 3.It can be design to have several compartments According to your requirements | ||
| 4.Equipped with speed limiter.The speed limit of 80 km/h | ||

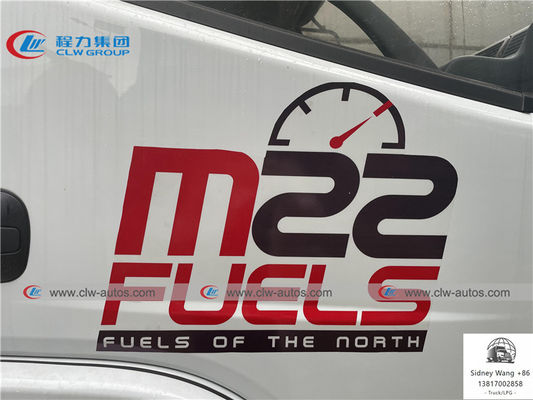

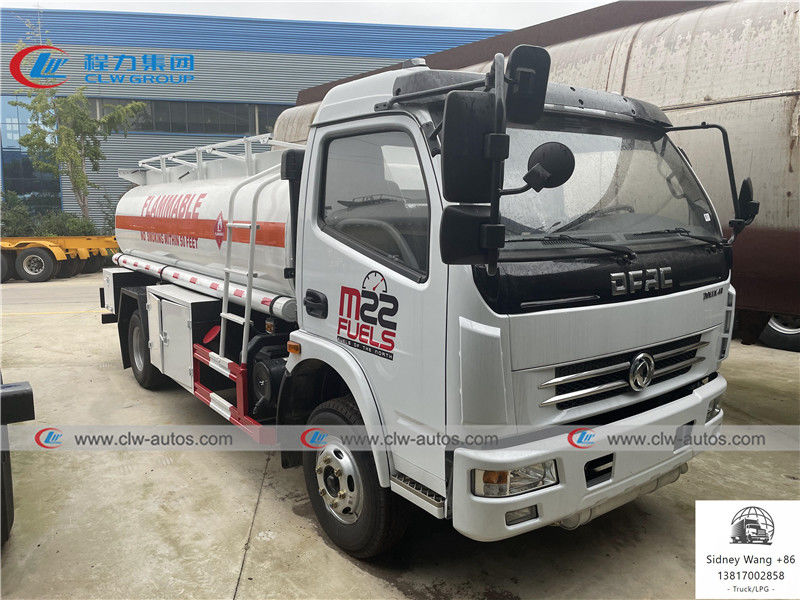

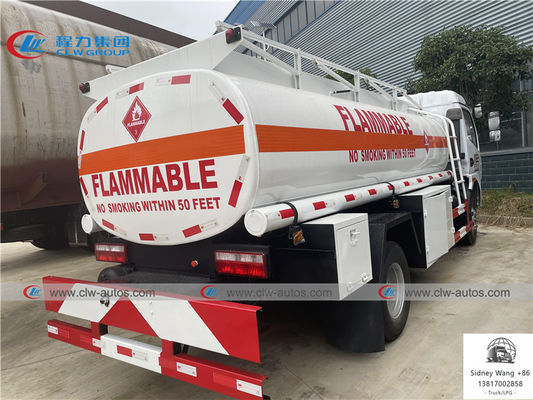

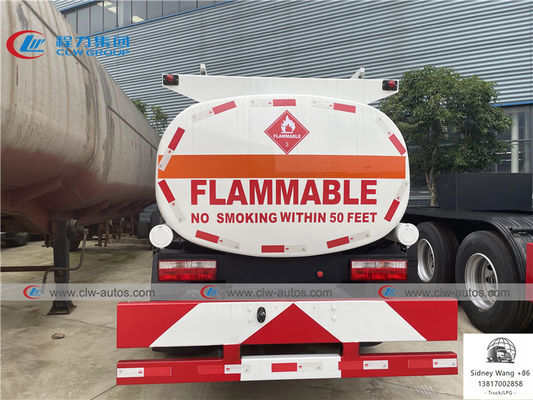

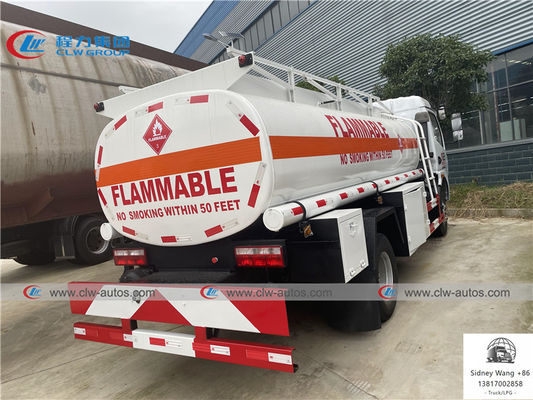

Reference Photos
Other Kinds of Fuel tank trucks
Factory overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Fuel Dispenser Tanker Truck I can order from your company?
A: We can supply different size Fuel Dispenser Tanker Truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Fuel Dispenser Tanker Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for Fuel Dispenser Tanker Truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
