Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Drive Type: | 4X2 6 WHEELS 6 WHEELER |
|---|---|---|---|
| Drive Model: | Left Hand Drive, Or Right Hand Drive | Loading Capacity: | 10000 Liters 12000 Liters 10cbm, 15cbm |
| Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac | Tuck Type: | Oil Delivery Transport Truck, Oil Refueling Bowser |
| Other Equipment: | Charging/discharging Valves. API Manhole | Engine: | YUCHAI Engine |
| Truck Type: | Fuel/Oil Delivery Or Transport. | Tank Volume: | 10001 - 15000L |
| Drive Wheel: | 4x2,4*2 | Fuel Type: | Diesel |
| Transmission Type: | Manual | Product Name: | Fuel Delivery Truck,Fuel Tank Truck,mobile Fuel Trucks |
| High Light: | 10000L Oil Transport Truck,FOTON AUMAN Oil Transport Truck,Yuchai Engine Fuel Transport Trucks |
||
FOTON AUMAN 4x2 Yuchai Engine RHD 10,000L Fuel Oil Transport Tank Truck
Product Description
The fuel tank truck is also called Mobile Fuel Truck, oil loading truck, oil refulling truck, etc. It is mainly used for storage and transport of oil.
The fuel tank truck can equipped with computer fuel dispenser. It could be used as the mobile filling station.
According to different needs, fuel tank truck is used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places which is without filling station.Actually it can be called as the mobile filling station.
product Specification
| Cabin | Left rudder/half row | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 8255×2460×2820 |
| Wheel base(mm) | 4800 | |
| Weight data | Curb weight(kg) | 5440 |
| Gross vehicle weight(kg) | 22000 | |
| Persons in cab (persons) | 2 | |
| Engine | Model | YC6A240-33 |
| Emissions standards | Euro III | |
| Displacement(L) | 7.255L | |
| Rated Power | 177 | |
| Max torque | 900 | |
| Gearbox | Model | 8JS105TA |
| Clutch | Type | Single dry diaphragm spring |
| Front axle | Type | 5.5.T |
| Rear axle | Type/Mainreducetion ratio | 10T/4.875 |
| Suspension | Front suspension/Leaf spring number | Non-independent suspension longitudinal plate spring /10 |
| Rear suspension/Leaf spring number | Non-independent suspension longitudinal plate spring /10+8 | |
| Brake system | Service brake | Drum-type pneumatic brake |
| Parking brake | Barely able to brake | |
| Basic equipment | Hydraulic Turnover/Cruise + 135A.H Battery/Manual Air Conditioners/Tuberless Tire (Inch) 11R22.5/ Manual Doors, Windows and Rearview Mirrors /MP3 / Power Steering/Knit Shock Absorber Seat (Spring) | |
|
Tank
|
top color | optional |
| Volume | 10m3 | |
| Tank material and thickness |
Part of the tank material,thickness:Q235B carbon steel, 4mm Head material and thickness: Q235B carbon steel, 5mm |
|
| Emergency shut-off valve |
Quantity: 1 Material thickness: aluminum alloy |
|
| Manhole cover |
Type: Aluminum European standard breathing valve with tank port Quantity: 1 Diameter: 500mm |

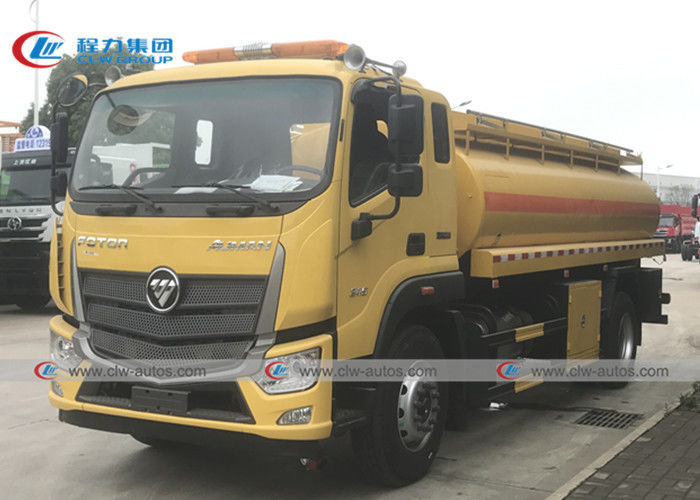

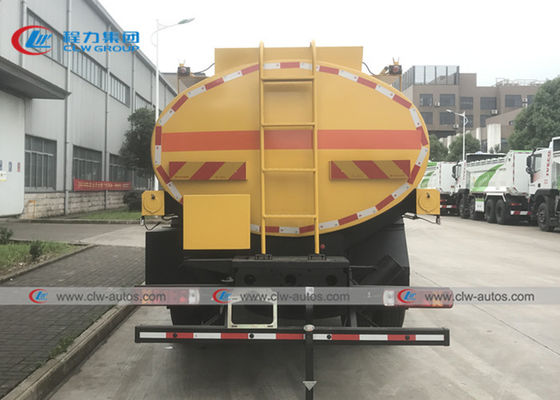

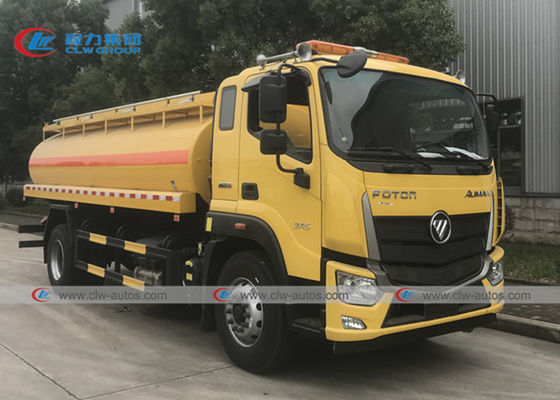

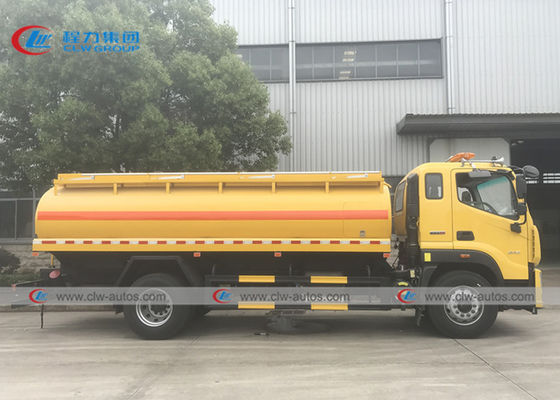

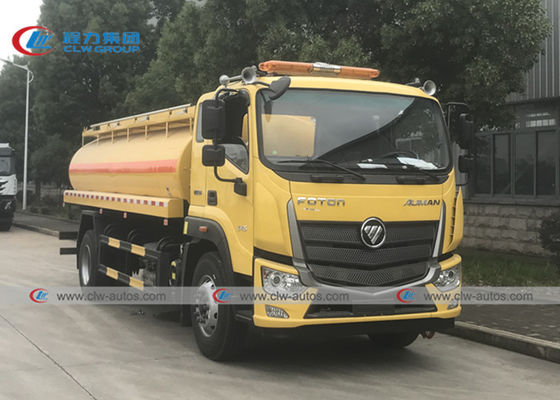

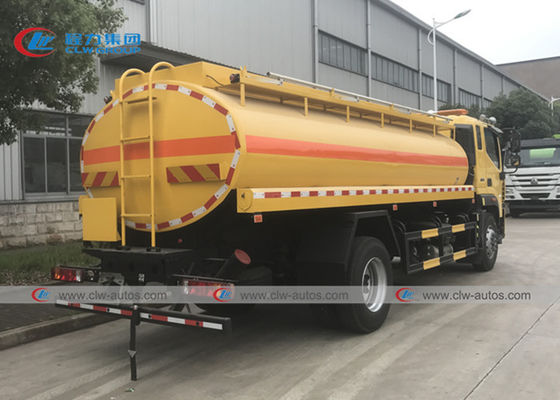

More pictures for FOTON AUMAN 4x2 Yuchai Engine RHD 10,000L Fuel Oil Transport Tank Truck:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
