| Tanker Material: | Cabon Steel, Stainless Steel, Aluminum Alloy | Drive Type: | 4X2 6 Wheels, 6 Wheeler |
|---|---|---|---|
| Drive Model: | Left Hand Drive, Or Right Hand Drive | Loading Capacity: | 5cbm, 6cbm, 8cbm, 10cbm, 12cbm, 15cbm Etc |
| Truck Brand: | Sinotruk/Sinotruck HOWO, HOHAN, FAW, FOTON, Jac | Tuck Type: | Water/Disinfectant Spray Truck |
| Other Equipment: | Charging/discharging Valves. Manhole | Equipment: | Pump, Hydraulic Motor, Oil Pump, Mist Cannon |
| Sprinkle Speed: | 0.2 To 3 Liters / Square Meter | Sprinkle Width: | 6 Meters |
| Product Name: | Water Mist Spray Dust Suppression Truck | ||
| High Light: | 10T Dust Suppression Truck,DFAC Dust Suppression Truck,DFAC Dust Suppression Trailer |
||
China DFAC 10M3 Water Mist Spray Truck 10Tons Dust Suppression Tank Truck with Mist Cannon
Applications: Used in street cleaning, plants watering, dust supression etc.
Truck Chassis: DFAC,JAPAN ISUZU,Foton (Other brand chassis available)
Water Tank: max loading weight 10000kg. (other chassis with bigger or smaller capacity available)
Feartures:
1. Multiple water spraying and sprinkling methods
2. High quality carbon steel or stainless steel water tanks
3. Multi-functions: street cleaning, water
Main Market: our water springkler tank trucks are widely sold in Africa, N. & S. America, Middle East and Asian countries.
Below photo includes our different water tank trucks, and the spec is a 7cbm capacity model using DFAC chassis for reference.
Please contact us (mobile/whatsapp +86 13545915671) to learn more details before placing order.
The specification for Dongfeng 10cbm Street Cleaning Dust Suppression Plants Watering Tank Truck with Water Mist Cannon.
|
Specifications of Euro 4 GCC 10cbm Street Cleaning Dust Suppression Plants Watering Tank Truck with Water Mist Cannon
|
|
| Model | CLW5161GSSD3 |
| Chassis brand & Year | Dongfeng, 2020 new |
| Wheel Drive | 4x2, LHD |
| Overall Dimension | 9350*2500*3850mm |
| Gross Weight | 16000kg |
| Curb Weight | 7580kg |
| Engine | Cumins 190HP Eruo 3 6-cly 5.9L diesel engine |
| Wheelbase | 5000mm |
| Tires: | 6+1, 10.00-20 tires |
| Cabin | Dongfeng classical cab, 3 seats, with a 1/2 sleeper bed |
| Transmission | Manual, 8 front gears and 1 rear gear |
| Brake | Full Air brake |
| Max Speed | 90km/h |
| Fog Cannon Parameters | |
| Brand & Model | CLW ZX-80P |
| Spray Range | 0~80 meters |
| Cover Area | 17,850m2 |
| Fan Machine Power | 37 kW |
| Fan Air Wind Capacity | 127,500 m3/h |
| Air Pressure | 3,106 Pa |
| Equipped Power | 120 kW(6-cylinder) |
| Water Pump Power | 15 kW |
| Water Pump Type | Single centrifugal pump Multistage centrifugal pump |
| Water Pump Flowrate | 160~200L/m |
| Water Ring | Double stainless steel waer ring |
| Spraying Nozzle No. | 80pcs |
| Rotation Motor | 0.4 kW |
| Rotation Angle | 0~360° |
| Vertical Angle | -5° ~ 45° |
| Hydraulic Motor | 3 kW |
| Control Method | Manual/wirelss remote control/auto-control |
| Wireless Remote Control Range | Within 300m |
| Watering System | |
| Tank Volume | 10,000liters-12,000liters |
| Material | Carbon steel, 6mm thickness |
| Front spraying pipe | 14~18m |
| Rear spraying | 5~9m |
| Water suction depth | 7m |
| Water shooting valve | >28m |

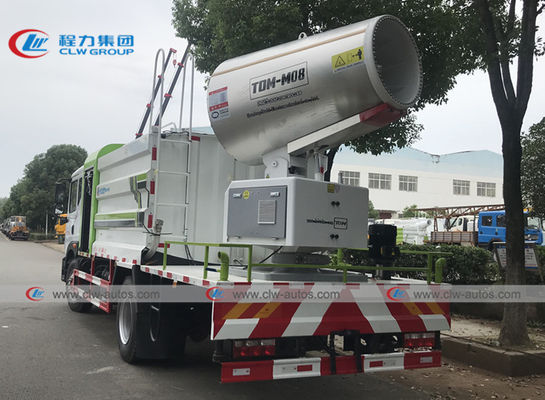

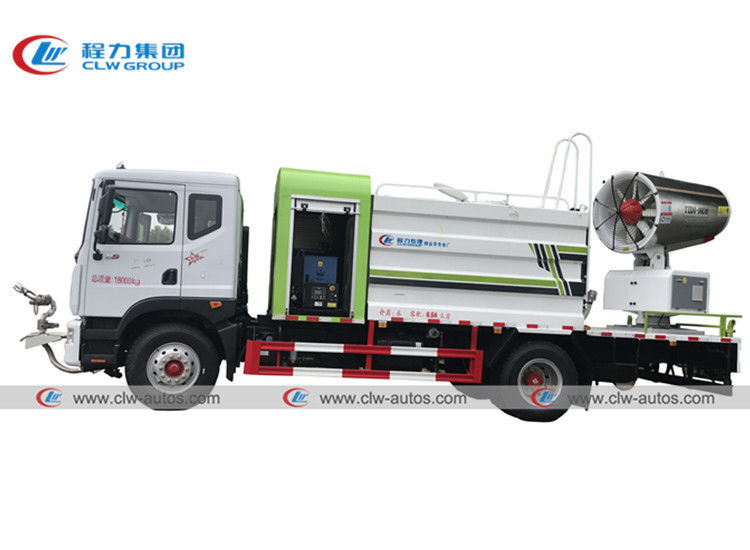

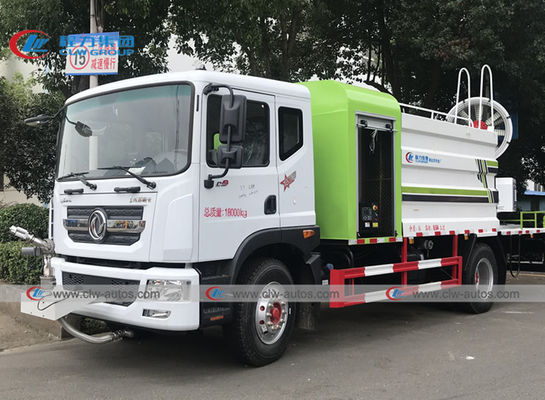

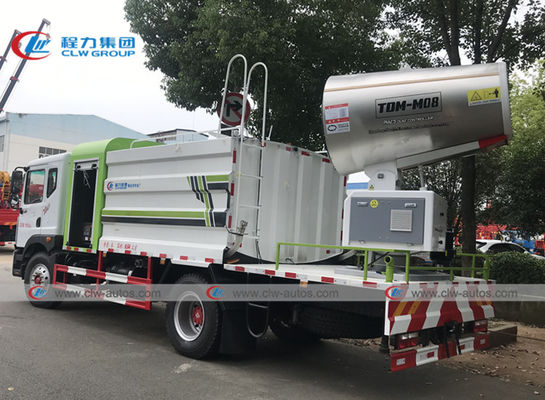

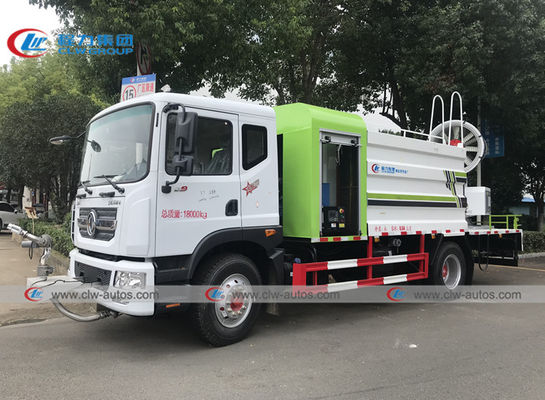

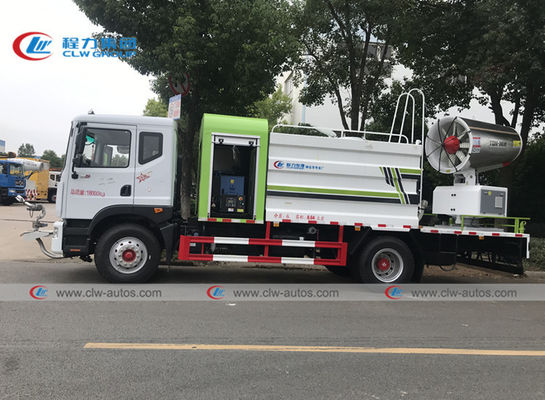

More detailed pictures for China DFAC 10M3 Water Mist Spray Truck 10Tons Dust Suppression Tank Truck with Mist Cannon
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
