FORD Mid Roof Monitoring Negative Pressure First Rescue Ambulance Vehicle

Large Image : FORD Mid Roof Monitoring Negative Pressure First Rescue Ambulance Vehicle

Product Details:

Place of Origin:	SUIZHOU, HUBEI, CHINA
Brand Name:	CLW
Certification:	ISO9001, CCC, BV, SGS
Model Number:	CLW20210809

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiated
Packaging Details:	Naked or waxed before shipment
Delivery Time:	30-35 days after receiving the deposit
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 units per month

Contact Now

Detailed Product Description

Truck Type:

Ambulance, Tranpsort / Emergency Rescue Patient

Truck Brand:

Dongfeng, FORD, JMC, JAC, ETC

Equipment:

Disinfecting Lamp, 220V Power Port& Oxygen Ports

Equipped:

Intercom, Slideable Infusion Rack

High Light:

FORD Mid Roof Ambulance Vehicle

Monitoring Negative Pressure Ambulance Vehicle

FORD First Rescue Ambulance

FORD Mid-roof Monitoring Negative Pressure Ambulance Vehicle Emergency Rescue Transport Ambulance

An ambulance is a vehicle for transportation of sick or injured people to, from or between places of treatment for an illness or injury, and in some instances will also provide out of hospital medical care to the patient. The word is often associated with road going emergency ambulances which form part of an emergency medical service, administering emergency care to those with acute medical problems.

The FORD Chassis Specification:

Vehicle Parameters
General	Vehicle Model	YZR5038XJHJ5
	Vehicle Brand	XDR
	Chassis Brand	FORD
	Overall Dimension(mm)	5341×2032×2460
	GVW/Curb Weight(kg)	3495/2540
Chassis Parameters
Cab	Cab Seat	3-8
	Air Conditioner	YES
Engine	Fuel Type	Diesel
	Engine Model	DURATORQ4D205L
	Engine Brand	JMC
	Power(kw/hp)	89/121
	Displacement(cc)	1998
	Emission Standard	Euro5
Chassis	Drive Type	4*2
	Transmission	5 speed, Manual
	Wheelbase(mm)	3300
	Tyre Specification	215/75R16LT
	Tyre No.(pcs)	4
	Max Speed(km/h)	156
	Paint	White
Super Structure Parameters
Standard configuration	See below

The Inside specification:

	No.	Item	Qty
Basic configuration
	1	air conditioner in medical room	1
	2	warm air in medical room	1
Electrical circuits and appliances
Alarm, warning system	1	long strip standard light alarm	1
	2	100W Alarms and hand-held controls	1
	3	blue flash at rear	2
	4	Left and right rear side blue flash	2
	5	Left and right side white flash	2
Interior power supply system	1	1000W positive wave power invertor	1
	2	Integrated circuit control and protection system	1
	3	Integrated switch control panel	1
	4	220V power port	3
	5	12V power socket	1
	6	top LED light	4
	7	Sterilizing lamp	1
	8	Ventilator	1
	9	Talkback	1
Oxygen path and oxygen
Oxygen system	1	10L Medical oxygen cylinder and shock absorber clamp	2
	2	Hidden oxygen pipeline system	1
	3	standard oxygen terminal	2
	4	humidification bottle	1
medical cabin making
Medical cabin interior	1	polymer hardtop interior,easy to clean	1
	2	polymer partition wall	1
	3	transparent middle partition wall push and pull observation window	1
	4	medical long wall cupboard (left top)	1
	5	medical equipment cabinet	1
	6	left rear vertical oxygen tank	1
	7	hidden safety embedded-part	1
	8	Full set of blue soft cladding walls	1
	9	Environment-friendly wear-resistant, non-slip medical floor and cushion blue color	1
Seat
Seat system	1	Right side reverse soft seat	1
	2	Right side individual backrest seats	1
	3	right soft bench seats with safety belt for 2 person	1
Emergency auxiliary
Medical System	1	Automatic stretcher	1
	2	stretcher pad and guide plate	1
	3	slidable infusion support	1
	4	fire extinguisher	1
Appearance
Appearance	1	Black solar film (left side)	1
	2	translucent matte film (right and rear )	1
	3	Standard medical appearance	1

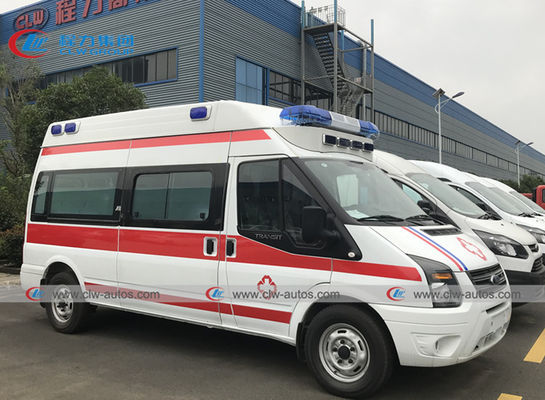

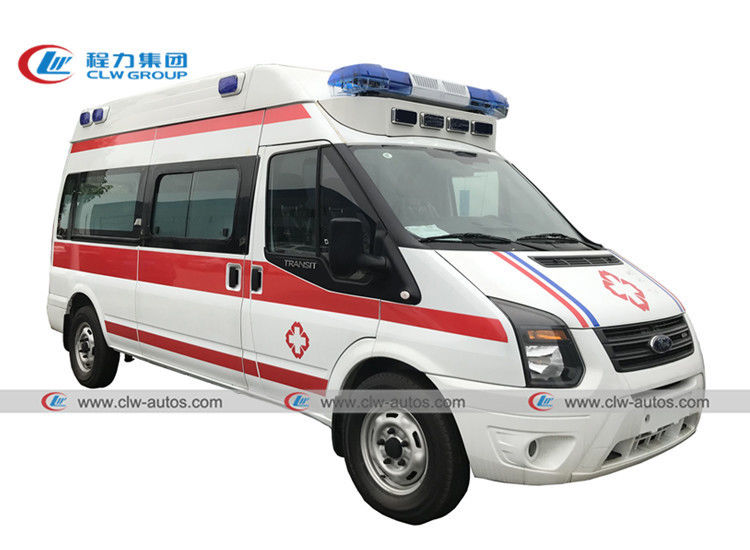

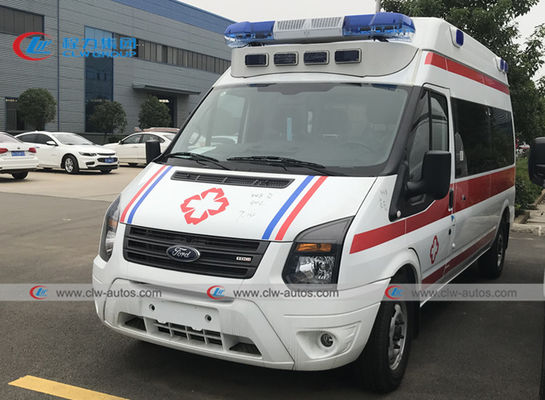

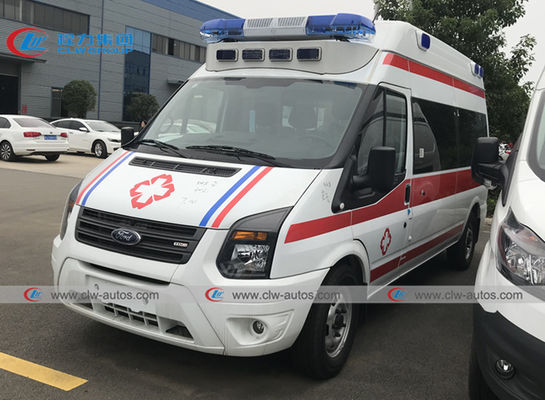

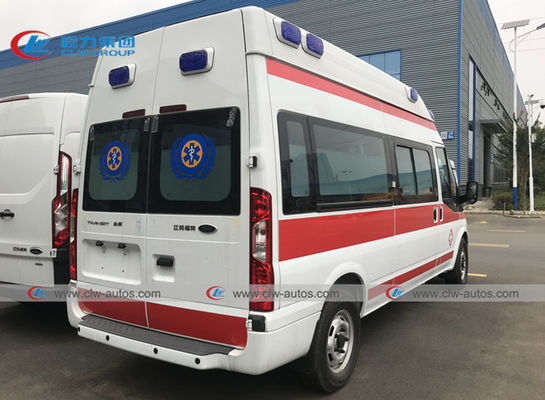

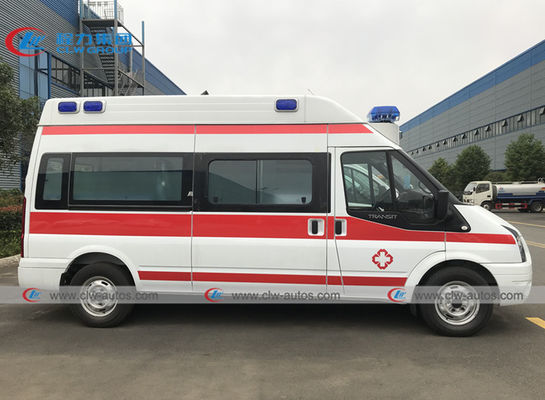

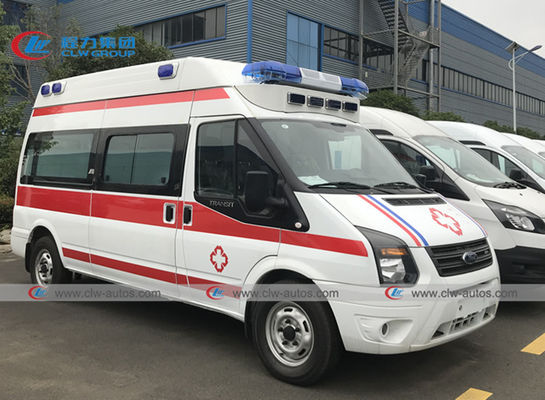

More detailed pictures for FORD Mid-roof Monitoring Ambulance Vehicle Emergency Rescue Transport Ambulance:

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ:

Q1: What is your product name?
A: Ford Negative Pressure Ambulance

Q2: what type of ambulance can you supply?
A: We can supply patient transport ambulance,emergency ambulance,mobile epedemic control ambulance,rescue ambulance,command ambulance...

Q3: What brand of Negative Pressure Ambulance can you supply?
A: Mercedes-benz,Toyota,Ford,JMC,Foton,Jinbei,LDV,IVECO,saicmaxus ambulance

Q4: Where is your factory located? Can we visit your factory?
A: Our factory is located in Suizhou City,Hubei Province,central China,which is famous for special vehicles.You can take high speed train to Wuhan railway station,Hankou railway station or Wuhan Tianhe International Airport.

Q5: What's your payment term?
A: 40% deposit by T/T and balance by T/T before shipment.

Q6: How many days can I get ambulance after paying deposit?
A: Usually our delivery time is 20~25 days.
