Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Axle: | FUWA, BPW, L1, Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Oil Tanker: | 30M3, 30 Cubic Meters, 30000 LITERS |
| Compartment: | 2 3 4 5 6 Compartments | Front Axle: | 13 Tons, Or 16 Tons, |
| Suspension: | Front: Air Bag, Rear: Mechenical Suspension. | Transport: | Bitumen/Asphalt |
| Equipment: | Insulation Layer, Burner For Heating. | Tank Capacity: | 250M3 30M3 35M3 40M3 |
| Burner: | Italy Riello Brand | ||
| High Light: | 30000L Asphalt Tank Trailer,2 Axle Heated Asphalt Tank Trailer,30000L Asphalt Tank Truck |
||

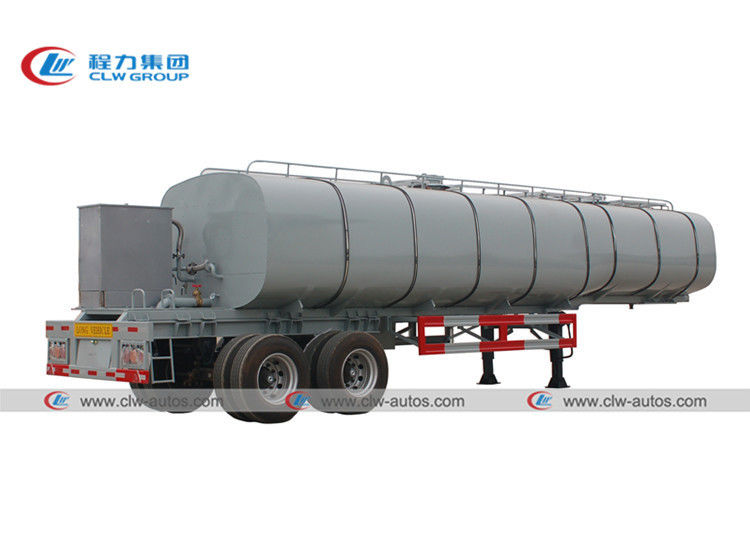

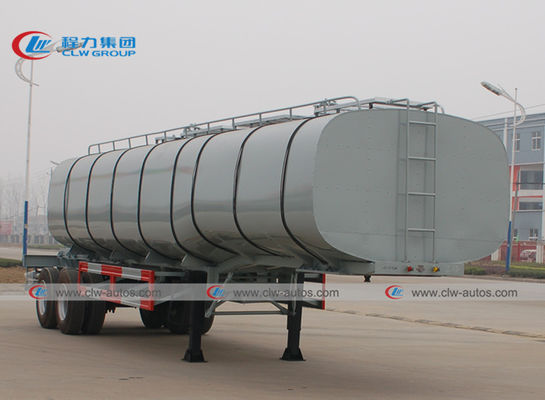

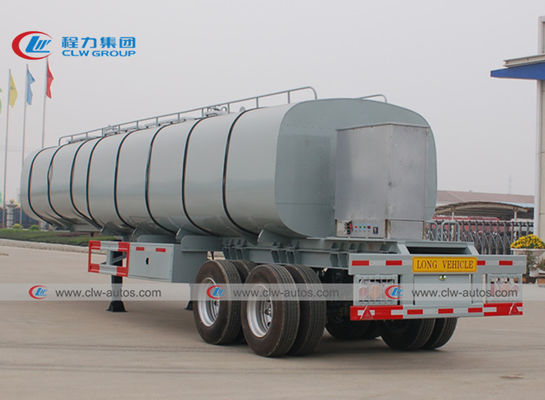

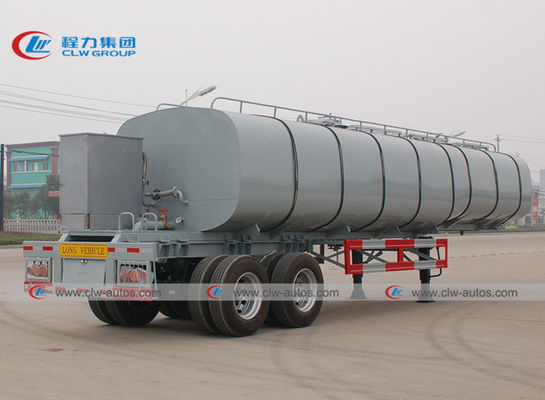

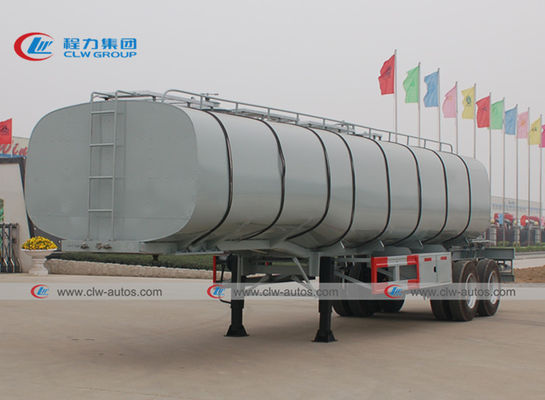

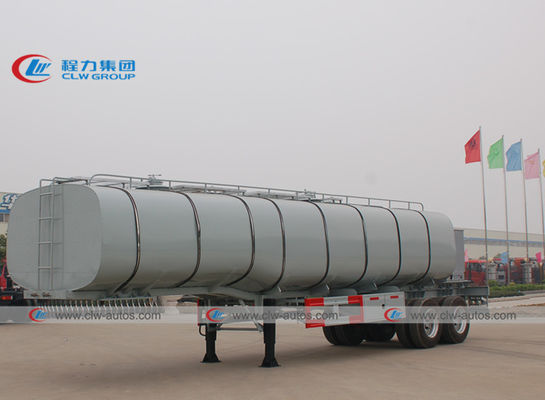

2 Axle 30000Liters Heated Bitumen/Asphalt Tank Trailer With Insulation Layer And Burner
Product Desription:
1. Function of this series bitumen tanker trailer:
product Specification
| Technical Data | ||||||
| Weight Rating (kgs) | Tare Weight | 9000 | ||||
| Pay Load | 35000 | |||||
| Dimension (㎜) |
Trailer
|
Overall Length | 10580 | |||
| Overall Width | 2490 | |||||
| Overall Height | 3520 | |||||
| Wheelbase | 6280+1310 | |||||
| Tank | ||||||
| Shape | Ellipse | |||||
| Total Volume(m3) | 31.5 | |||||
| Valid Volume(m3) | 30 | |||||
| Drift Diameter(inch) | System | 4 | ||||
| Outlet | 3 | |||||
| Material | Q235A/6mm | |||||
| End plate | Q235A/6mm, by punching | |||||
| Spurn water | Q235A/5mm, 20 inch manhole 508MM | |||||
| Parts for Tank | ||||||
| Manhole cover | 3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valves, 3 pieces, 500mm | |||||
| Unloading valve | 2 sets of DN80 fixed at button of Tank | |||||
| Pipeline at button of tank | 4”seamless steel tube/Q235, 100MM | |||||
| Labeling system | Oil Type Indication | |||||
| Anti-static electricity system | pulling, wire carrier, sheet copper (6 sheet, reasonable layout) | |||||
| Burner | Italy Riello Brand. | |||||
| Other Parts | ||||||
| Ladder | 1 unit at front of Tank | |||||
| Guard on top of Tank | Zinc galvanizing net | |||||
| Oil hose box | Circular single hole tube, 1 unit on each side | |||||
| Oil hose | 2 unit, 3” x 6mm size in black rubber | |||||
| Side guard | cross bar structure | |||||
| Rear button guard | Fixed type | |||||
| Work tank deck | Box type | |||||
| Fire extinguisher box | 2 unit at back of each side | |||||
| Mud guard | trapezoid structure in steel | |||||
| Lights and wire | 24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp | |||||
| Chassis | ||||||
| Main Beams | Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes | |||||
| Axle | Two units of BPW 13 ton axle, FUWA, L1 brand are optional. | |||||
| Landing Gear | 28T, 19” ,JOST Two Speed Manual Operation | |||||
| King Pin | One unit of 2” bolt-in king pin | |||||
| Suspension | German style mechanical tandem suspension with 11mm x 100mm 13 leaf springs | |||||
| Pneumatic Braking System | One units of WABCO RE 6 relay valve; four units of T30/30 chamber; one units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector. | |||||
| Wheel rim | 8.25-22.5 rim, 9 pieces including one spare | |||||
| Tire | 11R22.5 tubeless tire, 9 pieces including one spare | |||||
| Painting |
Sand blasting processing clean rust One coats of anti-corrosive Two coats of finish urethane paint Color as customer choice |
|||||
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
