HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsTanks Trucks And Trailers

3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer

3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer
3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer

Large Image :  3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20210916

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Tanker Material: Carbon Steel, Stainless Steel, Aluminum Alloy Axle: FUWA, BPW, L1, Brand
Axle Loading: 13tons, Or 16tons Oil Tanker: 24M3, 24 Cubic Meters, 24000 LITERS
Axle: 13 Tons, Or 16 Tons, Suspension: Mechenical Suspension.
Transport: Dilute Sulfuric Acid, Or Hydrochloric Acid, Tank Capacity: 18M3 18CBM, 18 Cubic Meters, 18000Liters
Function: Tranpsort Acid. Chemical Liquid Type: V-Type, V Shape. Or Round Shape Tanker
Tanker: Lined With Plastics 16mm Thickness
High Light:

Dilute Sulfuric Acid Tank Semi Trailer

,

24000L Tank Semi Trailer

,

18000L 3 Axle Semi Trailer

 3 Axle 18CBM 24000Liters Chemical Liquid Dilute sulfuric acid Tank Semi Trailer



Product Desription:

1. Chemical tank trailer, aslo called corrosive liquid tank trailer, is specially designed and produced to transport acid, alkali, asphalt and other corrosive goods or chemical liquid.

Acid: hydrochloric acid, sulfuric acid,nitric acid, sodium carbonate, nitric acid.

Alkali: sodium hydroxide, potassium hydroxide.

Others:liquid asphalt.

2. Our product capacity:

Available in 10 cubic meters~60 cubic meters capacity, 4x2/4x4/6x2/6x4/6x6/8x2/8x4/2 axle trailer/3 axle trailer to different option(red marked are our hottest wheel drive chemical liquid vehicles models)

3. Material and craft:

a. high strength Q235 steel lined with plastic tank

b. stainless steel tank

c. aluminum tank

d. pure plastic tank

e. other materials.

According to different volume and medium, the thickness is different but will be in line with chemical tank manufacturer standard and our designs to keep tank body high quality. The curb weight of the strength of whole tank are the most important we need to balance.

Commonly speaking, the thickness of out layer carbon steel is 2mm~6mm, inner plastic lined layer is 14mm~26mm.

4. Pipe and valve:

All plastic material.

5. Manhole and manhole cover:

All surface which is possible contacting with corrosive liquid will be lined with plastic. The manhole and manhole cover are all lined with plastic.

6. Other:

FUWA 13T axle, 2 manhole, top walk protect fence, side fence, rear fence, rear ladder, 1 tool box, JOST outrigger, JOST kingpin, 2 fire extinguisher racks, 1 spare tire, anti-static belt, light, warning light, warning signs, reflective stickers,

7. Option:

Multiple compartment, BPW axle, 2 tool box, burner machine(like the transport of liquid asphalt), etc.


product Specification



Main Dimensions
Overall Length 9440mm
Overall Height 3000mm
Overall Width 2500 mm
Tare Weight 9400 KGS
Loading Capacity 35000 kgs
Photo only for reference, final product can be made according to exact requirements
Tank Body
Shape Mono block Cylinder
Total Volume(m3) 18 CBM
Tanker Body Material 5 mm Carbon steel lined with 16 mm plastics ,
End plate Carbon steel lined with 16 mm plastics or 6 mm stainless steel 316L
Manhole cover Carbon steel lined with 16 mm plastics or Stainless steel manhole cover, ∮500mm ,2 sets with 2 breather valve
Discharging valve 1 sets ∮100mm discharging valves, stainless steel material or Carbon steel lined with 16 mm plastics
Discharging Pipe 4”rubber hose, 2 pcs, 6m long , stainless steel material or Carbon steel lined with 16 mm plastics
Chassis
Axle 3 axles
BPW or 12 ton
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
King Pin JOST brand 2” bolt-in king pin
Suspension German design heavy duty mechanical suspension 13-pcs leaf spring
Pneumatic Braking System WABCO RE 4 relay valve; T30/30 Spring brake chamber; 40L air tanks.
Wheel rim 9.0-22.5 wheel rim, 12 pieces
Tire 12R22.5 tubeless tire , 12 pieces
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box, one spare tyre and carrier

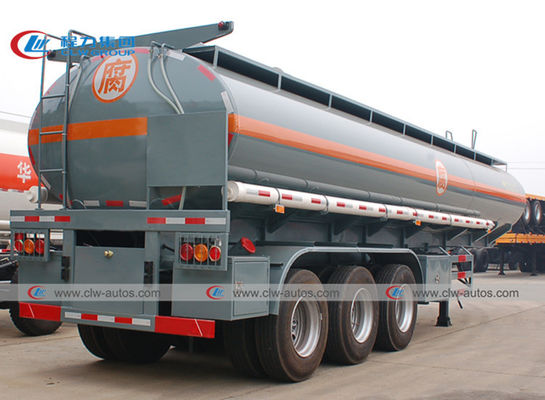

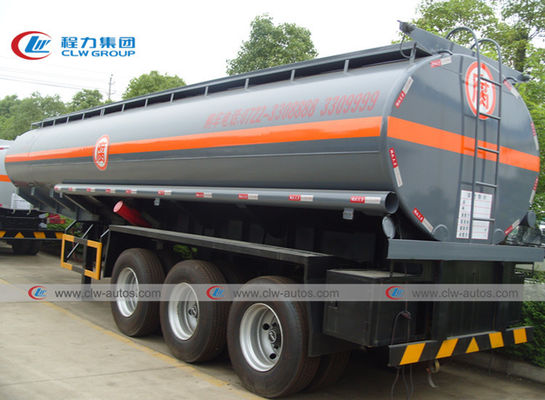

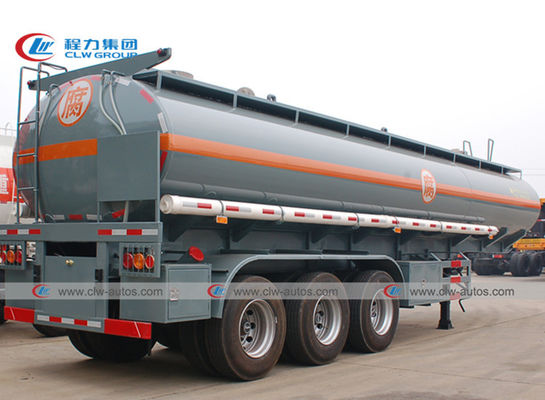

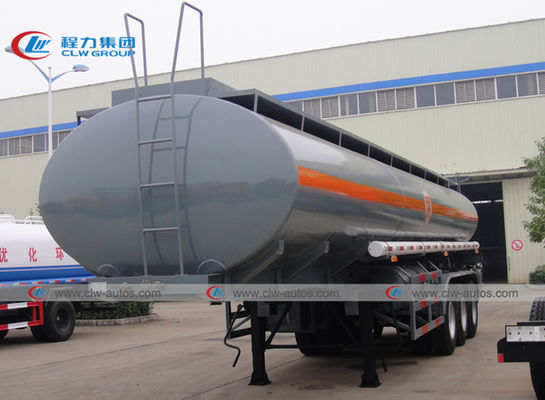

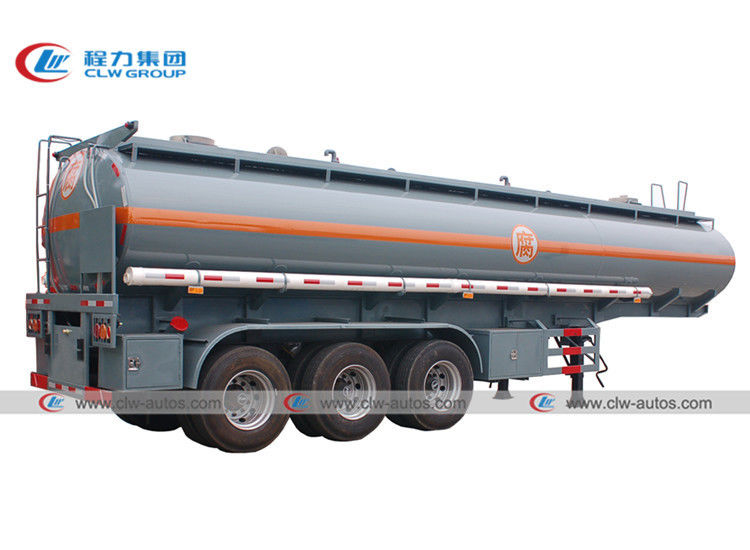

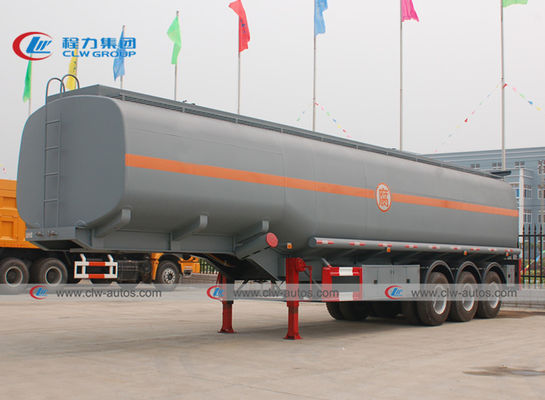

More pictures for 3 Axle 18CBM 24000Liters Chemical Liquid Dilute sulfuric acid Tank Semi Trailer:
3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 0
3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 1
Drawing Customized for each customer for different refuirement:
3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 2
Lined with plastics 16mm in tanker, Production pictures:

3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 33 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 4

Plasctc Lined for discharge valves:

3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 53 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 6

Plastic lined for manhole:

3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 7

Features for 3 Axle 18CBM 24000Liters Chemical Liquid Dilute sulfuric acid Tank Semi Trailer

3 Axle 18000 24000L Dilute Sulfuric Acid Tank Semi Trailer 8



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.





FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
