Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Drive Type: | 6x6 AWD, Off Road For Bad Road Condition |
|---|---|---|---|
| Drive Model: | Left Hand Drive, Or Right Hand Drive, RHD | Tank Volume: | 8000L, 10000L, 12000L, 8CBM, 10CBM, 12cbm |
| Truck Brand: | Dongfeng /Sinotruk HOWO, Shacman, FAW, FOTON, Jac | Tuck Type: | Oil Delivery Transport Truck, Oil Refueling Bowser |
| Other Equipment: | Charging/discharging Valves. API Manhole | Compartment: | 2 |
| Dispenser: | With Two Dispensers ( 2 Fuel Filling Machine) | Product Name: | Fuel Delivery Truck,Fuel Tank Truck,mobile Fuel Trucks |
| Type: | For Army, Military Using | ||
| High Light: | 12000L Mobile Refueling Truck,6x6 Mobile Refueling Truck,Dongfeng Off Road Truck |
||
Dongfeng 6x6 All Wheel Drive Off Road 12000L Mobile Oil Refueling Tanker Truck
Product Description
Competitive advantage fuel tanker truck series
1 Applied carbon steel sheet Q235-A that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.
Painting held more tolerance and coherence, can make sure the tank in good situation within 5 years.
6 According to customer’s needs:
A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.
B> The tank can be designed as a single compartment or several compartments.
Product Specification
| Item | Unit | Parameter | |
| Vehicle model | Dongfeng Fuel Tank Truck | ||
| Chassis model | CLW5257GYYT5 | ||
| Overall dimensions | mm | 10165*2500*3250 | |
| Fact cubage | L | 20000-28000 | |
| Gross weight | kg | 25000 | |
| Curb weight | 11505 | ||
| Payload capacity | 25000 | ||
| Axle load | 7000/8000*2 | ||
| Body internal dimensions | mm | 7100*2400*1650 | |
| Wheelbase | 4750+1300,4350+1300 | ||
| Front/Rear track base | 1515/2600 | ||
| Front/Rear overhang | 1860/1860 | ||
| Approach/Departure angle | ° | 18/12 | |
| Exhaust/Power | ml/hp | 5900/210 | |
| Max speed | km/h | 80 | |
| Engine model | B210 33 | Electric system | 24V |
| Traction system | 6X2,6X4 6X6 | Number of axles | 3 |
| Tire specifications | 11.00-20 18PR,11.00R20 18PR, | Number of tires | 10+one spare tire |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2 |
| Equipment | Meterial:5-6mm carbon steel or stainless steel with oil pump, can choose flow meter, tankerpiston and bobbin disk, for more details please cotact with me, skype:weitruck. | ||
| Tank can be separated to several unattached small tanks to fill different fuels | |||
| Equipped with fire extinguisher, ladder, grouding wire | |||
| Engine | diesel engine | ||

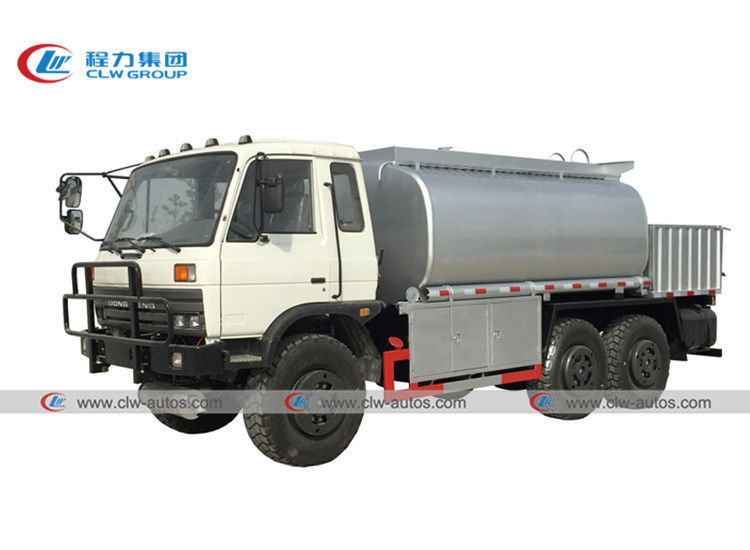

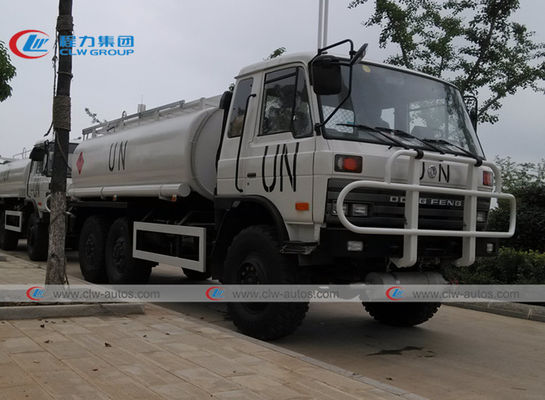

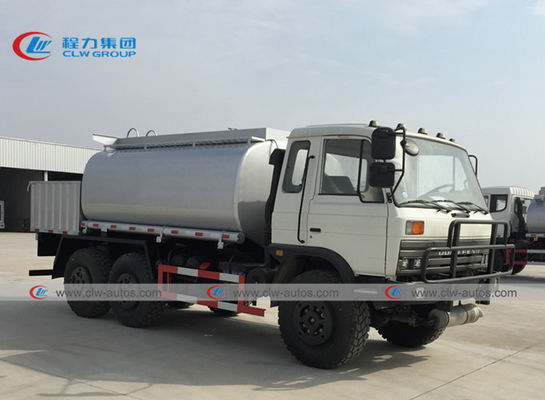

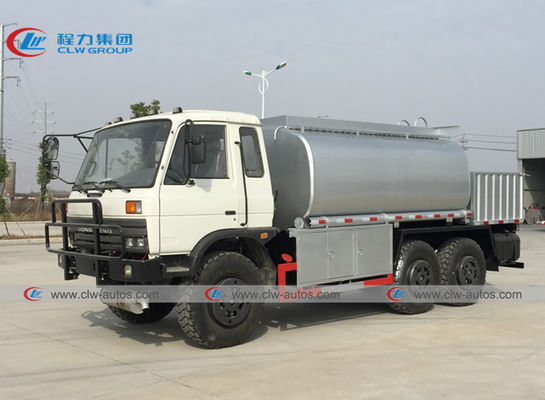

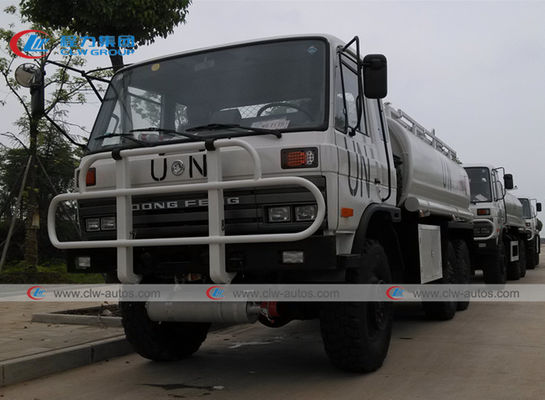

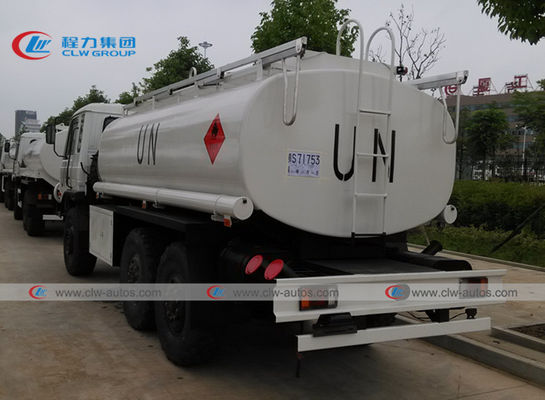

More pictures for Dongfeng 6x6 All Wheel Drive Off Road 12000L Mobile Oil Refueling Tanker Truck
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
