SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer

SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer
SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer

Large Image :  SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,BV,SGS
Model Number: CLW5097YGB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Unit/Month
Detailed Product Description
Design Code: Total Standard Trailer Size: 40cbm, 40000liters
No. Of Compartment: 5 Type Of Discharge Valve: API Or French Style
Size Of Discharge Valve: 3inch Or 4 Inch No. Of Axle: 2 Or 3 Or 4
Axle Brand: BPW Or Fuwa Or Hj Tyre Brand: Triangle Or Double Coin
Size Of Tire: 12r22.5 Or 315/80r22.5 Or 385/60r22.5 Air Operated Shut-off Valves: Yes
Rear Ladder: Yes Top Safety Rail: Yes
Level Gauge: Optional Anti-Theft Lock: Optional
Spare Tire Rack: Yes Logo And Color: As Per Customer's Requests
Delivery Time: 30-35 Working Days
High Light:

40000L Fuel Tanker Semi Trailer

,

Q235 Steel Fuel Tanker Semi Trailer

,

SGS 3 Axle Semi Trailer

Excellent 40, 000 Liters 3-Axles 40cbm Fuel Tanker Semi Trailer









Product Description

1- Oil Tanker Trailers ,also called oil tanker semitrailer,fuel tank semitrailer,oil tanker trailer,
oil semitrailer,semi tanker trailer,stainless steel tanker trailer,carbon steel fuel trailer is used to deliver/transport/haulage oil,eatable oil,palm oil,maripa oil,gasoline,diesel,kerosene and so on.
2- Oil Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL,vietnam,Tanzania and Zambia.
3- Oil Tanker Trailers is optional for air bag suspension,front axle lifting.
4- Nice shape and rational structure.
5- High class running system and tank material.
6- High-intensity kingpin and landing legs.
7- Top gemany brand BPW axle or Chinese brand FUWA axles.
8- Durable and long term service life.


Product Specification

Main Dimensions
Overall Length Approx.11800mm
Overall Width 2500mm
Overall Height Approx.3650mm
Tare Weight Approximate 10900KGS
Loading Capacity 40m3
Tank Body
Shape Mono block Cylinder
Total Volume(m3) 40CBM
Tanker Body Material 5mm Carbon Steel Q235
End plate 6mm Carbon Steel Q235
Lifting Ladder Including Top walkway and backside steel material

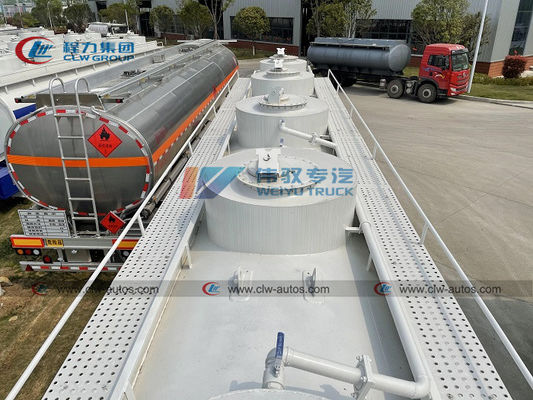

Manhole cover 5 sets Aluminum alloy API manhole cover , ∮500mm , with breather valves and anti-Spillage valves
Bottom Valve 5 sets DN100 Pneumatic Bottom Valve,Pneumatic control for each compartment
Discharging valve 5 sets DN100mm API discharging valves
Discharging Pipe 4"rubber hose
Chassis
Main Beams Special design I beam, Steel Saddle support 8 No's each side.
Axle 3 axles, Front axle is liftable
BPW brand 13 Ton
Landing Gear JOST brand
King Pin JOST Brand 2'' or 3.5" bolt-in king pin;interchangeable.
Suspension heavy duty leaf spring type, Front axle with BPW brand air bag
Pneumatic Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Tire 385/65R22.5 tubeless Single Tri-angle Brand tire with one spare tire, 9 pieces
TOTAL standard Lighting system

1. Electrical wires: Placed in leak tight sheathes,neither bare wire nor split sheathes

2. Back lights:Inserted inside rear bumpers and protected.

3. Stop light:Additional LED stop lighting.

4. Lighting repeaters:Turn,reverse and stop lights must be repeated on top left and right sides.

5. Indicator: In the rear side.

Other TOTAL Design and parts

1. Dust Board to Cover the Tires

2. Rear Ladder to access the top of the tanker. Well secured,with angle,not vertical,linked to mechanism

for automatic handrail lifting.

3. Walkway with fold-able handrail. (air operated)

4. Tool Box

5. Double Spare Tire Carrier (Winch Type).

6. Anti-skid design on the whole available surface

7. 2 No's of fire extinguisher holder. With 2 No's 9KG extinguisher.

8. Drip collecting system(slope-by directing liquid to a on/off tap)

9. Earthing plots(Qty 4, front left/right+back left/right,in brass)

10. A yellow, reflective safety line 5cm wide shall be placed along both side of tank shell

11. With ABS System

12. Epoxy coated inside Tanker

13. Aluminum Alloy Pipeline suitable for transport JET A1



Reference Photos

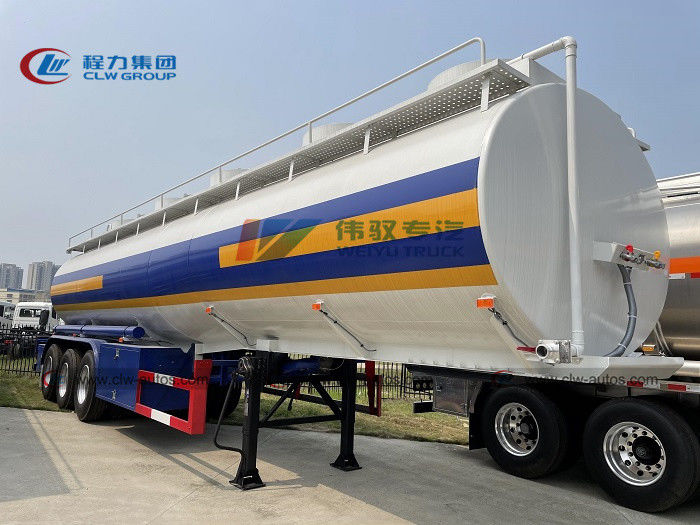

SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer 0

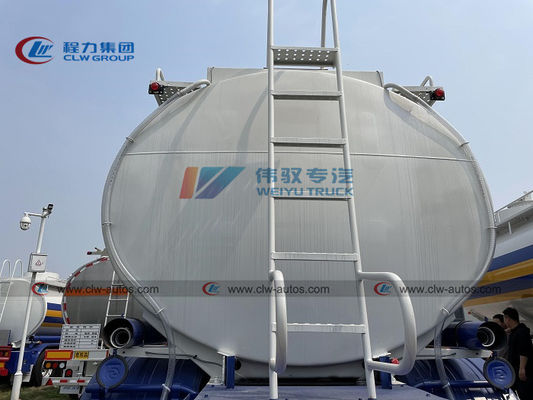

SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer 1

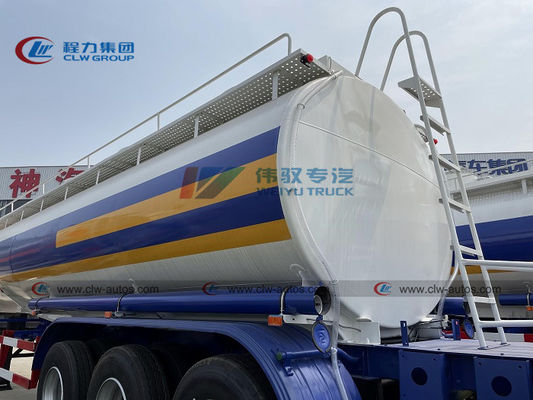

SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer 2



Main Structure Diagram

SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer 3



SGS 3 Axle 40000L Q235 Steel Fuel Tanker Semi Trailer 4



After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details:+86 13971508969.



FAQ



Q1: What kinds of fuel tank trailer I can order from your company?

A: We can supply various sizes of fuel tank trailer from30-50tons,etc.



Q2: What's the material of your fuel tanker?

A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.



Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?

A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
