Product Details:
Payment & Shipping Terms:
|
Chassis Brand: | Dongfeng, Foton, Sinotruk HOWO, Isuzu, Etc. | Engine Power: | 336HP |
---|---|---|---|
Tank Capacity: | 20cbm, 22cbm, 24cbm, 25cbm, 26cbm, Etc. | Paving Width: | 4500-6000mm |
Bitumen Capacity: | 0.25-3.5L//M2 | Asphalt Pump: | Chinese Brand /Optional International Brand |
Hydraulic Motor: | Chinese Brand /Optional International Brand | Nozzle Number: | 48PCS |
Control Mode: | Operation Box Control | Burner: | Italy Brand |
Logo And Color: | As Per Customer's Requests | Delivery Time: | 30-35 Working Days |
Warranty: | 1 Year | ||
High Light: | Sinotruk Howo Asphalt Distributor Truck,336HP Asphalt Distributor Truck,6x4 Road Construction Truck |
Product Description
1. Can spread a variety of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt, etc.
2. The width of the sprinkler is freely adjustable and each nozzle can be individually controlled.
3. Excellent insulation performance, average temperature drop ≤20°C/8h.
4. Intelligent control system for precise control of the amount of spreading. Manual and automatic two sets of operating systems, complete the sprinkling in the cab, the construction can be completed by one person only.
Product Specification
Drive Model | Left or right driven hand, 6x4 | ||
Cabin | HOWO HW76 Cabin, with one sleeper, air conditioner | ||
Engine |
Engine Model | WD615.47 | |
Type | diesel engine, 4-stroke, 6-cylinder in line, inter-cooling and turbo-charging, euro-2 emission standard | ||
Power | HP | 336 | |
Displacement | L | 9.726 | |
Dimensions |
Overall LxWxH | mm | 10200x2500x3450 |
Wheel Base | mm | 4600+1350 | |
Front/Rear Axles | kg | 7000/18000 | |
Gearbox | HW19710, 10forward & 2 reverse gear, manually | ||
Steering | ZF Hydraulic steering with power assistance | ||
Fuel Tank | 300L | ||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
Brakes |
Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
||
Tyre | 11.00-20,11.00R20 16PR,12.00-20 16PR,12.00R20 14PR,315/80R22.5 16PR,12R22.5 16PR,295/80R22.5 16PR | ||
Tank | |||
Volume | 20cbm | ||
Asphalt Pump Model | QGB950 (950 liters / min) | ||
Pump Model | CBQ563-L | ||
Generator power | 6 kilowatts | ||
Sprinkle speed | 0.2 to 3 liters / square meter | ||
Sprinkle width | 6 m | ||
Hydraulic motor Model | 05-110-BD31 | ||
Other specification | Asphalt nozzle 48; Conducting oil heating; Oil pump made in China; Italy imported G20 Burner. |

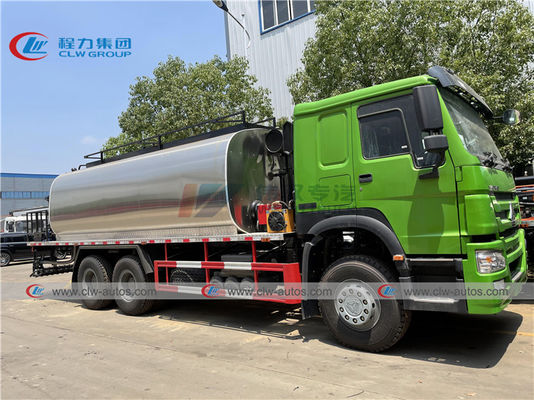

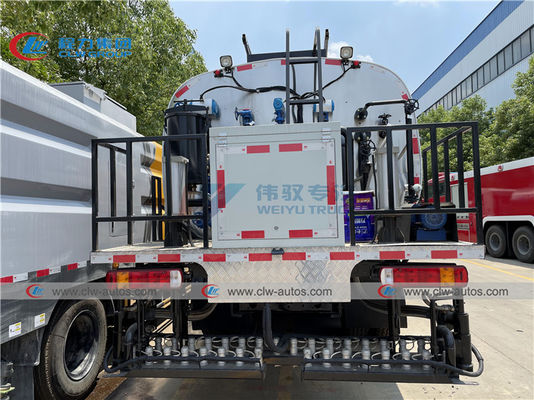

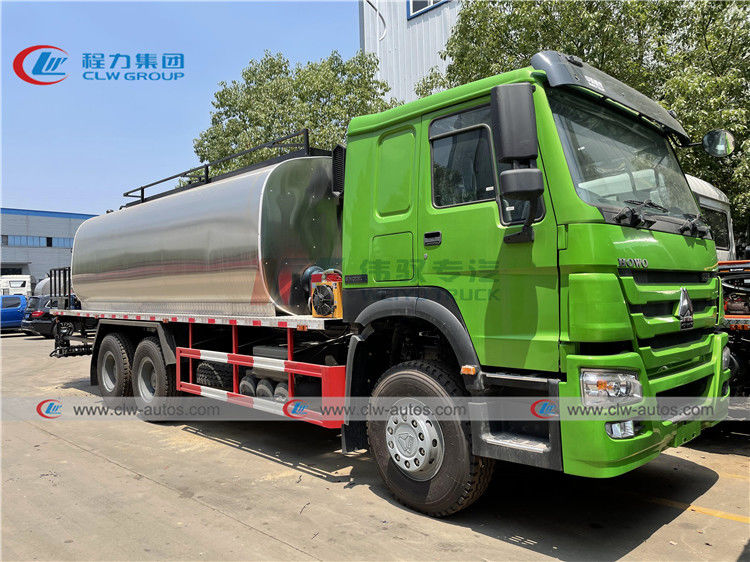

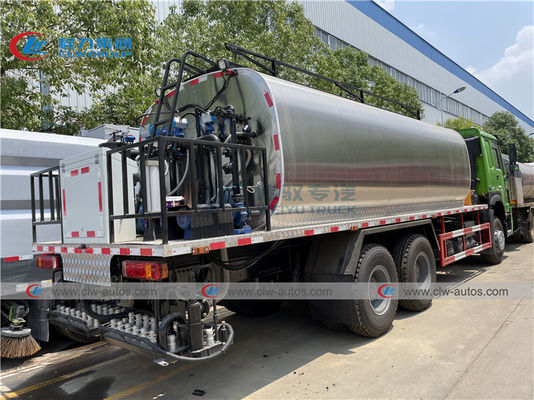

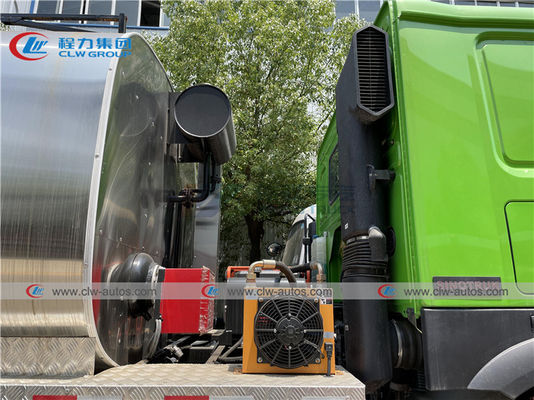

Reference Photos
Structure and Diagram
Working Scene
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.
FAQ
Q1: What kinds of bitumen distribution truck I can order from your company?
A: We can supply various sizes of asphalt sprayer Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of bitumen distribution truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?
A: Our bitumen distribution truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
