Product Details:
Payment & Shipping Terms:
|
| Tank Size: | 40cbm, 40000liters | Loading Capacity: | 30ton, 40tons, 50t, Etc. |
|---|---|---|---|
| Compartment: | 3, 4, 5, Etc. | Axle Numbers: | 3, 4, Etc. |
| Axle Brand: | Fuwa, BPW, Etc. | Suspension Brand: | K-Hitch Leaf Spring Or Air Bag |
| Landing Leg: | Jost | Kingpin: | Jost |
| Water Pump: | 120L/Mins | Spare Tire Rack: | Yes |
| Tire: | 11r22.5 | Design Drawing: | Yes |
| Logo And Painting: | As Per Customer's Requests | Delivery Time: | 30-35 Working Days |
| Warranty: | 1 Year | ||
| High Light: | 40cbm Tri Axle Semi Trailer,45cbm Tri Axle Semi Trailer,Tri Axle Edible Water Transport Trailer |
||
Product Description
We have More than 20 years professional design and production experience:
- Choose Regular manufacturers purchase materials,like Q235 baoshan.
- Use Domestic first-class production equipment.
- Famouse brand trailer parts used, like bpw/fuwa axle, triangle/double star/double coin and so on tires, API VALVES, etc.
- Strict quality control system ensure that each semi trailer is excellent and perfect.
- Delivery: Wax spray by frame container, with good protection measures.
Product Specification
| Tare weight | 9500kg |
| Size | 11000mm*2500mm*3850mm |
| Volume | 40M3 |
| Tank body | carbon steel 5mm |
| End plate | carbon steel 6mm |
| Axle | 3 axle FUWA brand 13T |
| Suspension | Mechanical suspension |
| Leaf spring | 10pcs |
| Manhole cover | 500mm manhole cover with breath valve .2 sets |
| Tire | 12R22.5 double star brand 12pcs |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Discharge valve | 4"disc valve API |
| Discharge pipe | 4"seamless steel tube |
| Bottom valve | 2 set |
| Kingpin | JOST brand 2" bolt-in king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear 24T |
| Compartment | Single |
| Oil gas recovery system | Optional |
| Anti overflow system | Optional |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light,two fire extinguisher |
| Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |

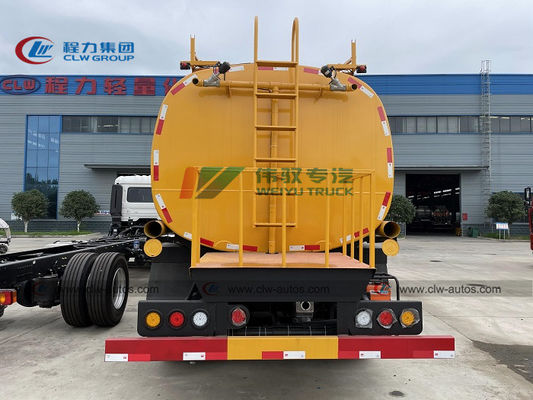

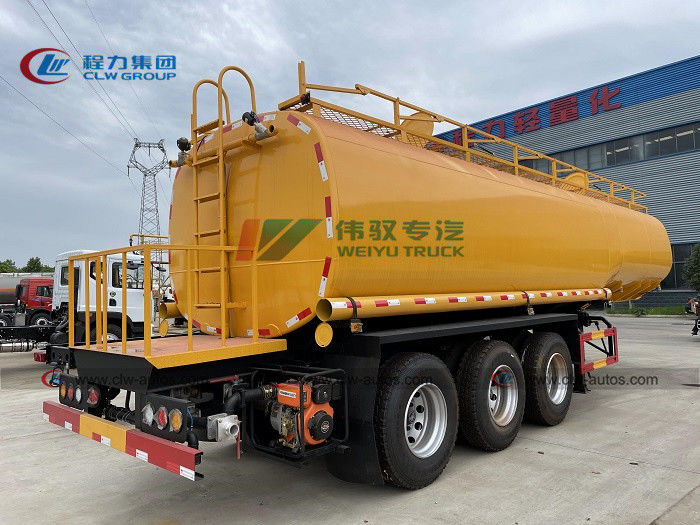

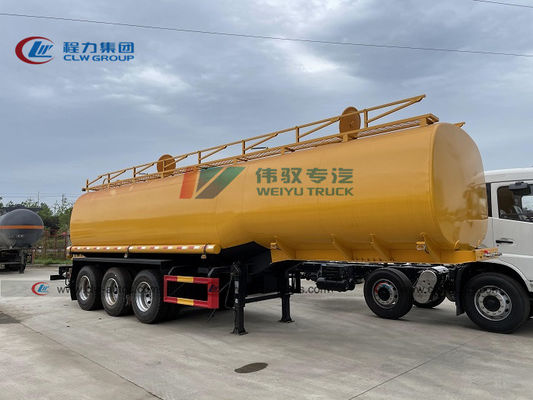

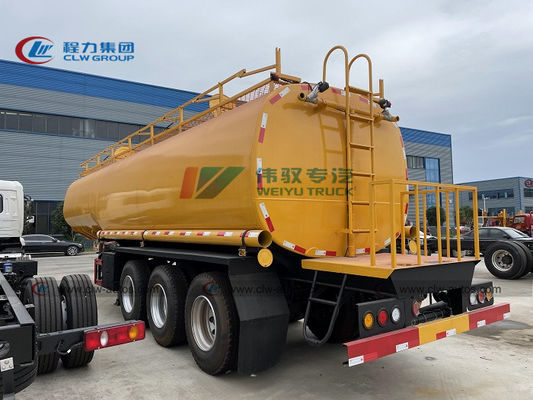

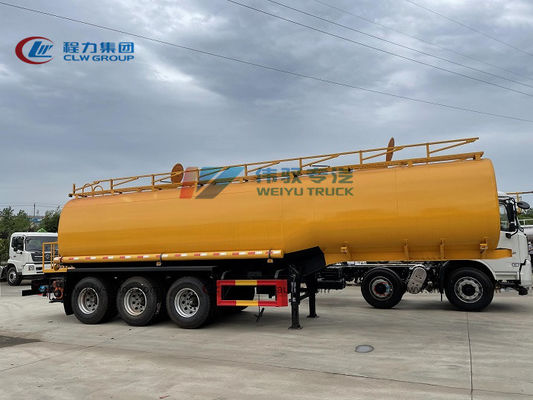

Reference Photos
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Lea for more details+86 155 2791 1810.
FAQ
Q1: What kinds of side trailer I can order from your company?
A: We can supply various sizes of lpg tank trailer from30-60cbm,etc.
Q2: What's the material of your side trailer?
A: We usually provide carbon steel, stainless steel, and aluminium alloy for customer's requirements.
Q3: What is your production standard of side trailer? Whether your side trailer been exported to USA, Canada and Europen countries?
A: Our side trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported side trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
