2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport

2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport
2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport 2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport 2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport 2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport

Large Image :  2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,BV,SGS
Model Number: CLW9011

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Unit/Month
Detailed Product Description
Design Code: Total Standard Type Of Discharge Valve: API Or French Style
No. Of Compartment: 2 Or 3 Or 4 Or 5 Or 6 Or 7 Or 8 Size Of Discharge Valve: 3inch Or 4 Inch
No. Of Axle: 2 Or 3 Or 4 Axle Brand: BPW Or Fuwa Or Hj
Tyre Brand: Triangle Or Double Coin Size Of Tire: 12r22.5 Or 315/80r22.5 Or 385/60r22.5
Air Operated Shut-off Valves: Yes Rear Ladder: Yes
Top Safety Rail: Yes Level Gauge: Optional
Anti-Theft Lock: Optional Additional Fuel Tanker: 500liter Or 1000liter Are Optional
Spare Tire Rack: Yes
High Light:

40M3 Tank Semi Trailer

,

20MT Tank Semi Trailer

,

40M3 LPG Tank Semi Trailer

2 axles 20MT 40CBM 40000 Liters 40M3 40 Cubic meters Propane transport LPG LP Gas Tank Semi-trailers



Product Description

LPG semi-trailer (LPG semi trailer) is also known as liquefied gas semi-trailer, liquefied gas tank semi-trailer, liquefied gas tank semi-trailer, liquefied petroleum gas transport semi-trailer, liquefied petroleum gas semi-trailer, LPG tanker semi trailer. It is a special transport semi-trailer for transporting liquefied gases such as propane, propylene, dimethyl ether, liquid ammonia, methylamine and acetaldehyde.

1) LPG Transport Tanker Trailer is used for transporting liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
2) Manufacturing standards of LPG Transport Tanker Trailer : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
3) Optional accessories of LPG Transport Tanker Trailer:ROCHESTER level gauge,flow meter,sunshelter,lpg pump,lpg dispenser machine,filling hose
4) Available tanker trailer capacity of LPG Transport Tanker Trailer: 18mt,18t,20mt,20tons,22mt,22tons,25mt,25tons,30mt,30tons


Product Specification



2 axle 40000 Liters LPG tank semi-trailer
Volume (Liters) 40000
Curb Weight (kg) 13415
Loading capacity (kg) 17010
Overall Dimension (mm) 11324x2500x3730
Number of axles (mm) 2
Wheel Base (mm) 6720+1310
Approach/Departure Angle (°) -/26
Track Rear (mm) 1820/1820
Front/Rear Overhang (mm) -/1450
Number of springs(F/R) -7/7/7
Maximum Axle-load (kg) 24000
Tire specification

Triangle Tubeless 11R22.5

Aluminum Alloy Rim

Tank material Q370R
Thickness (mm) 12
Endplate thickness 12
Tank Color White
Standard configuration 13 tons of FUWA shaft, valve cover, single-fluid two-valve boxes, JOST legs, 2 inches (50mm) JOST traction pins, two sets of liquid level gauge (Automatic gauge in the front, Manual in the rear), pressure gauge, thermometer, emergency shut-off valve, anti-static grounding tape, fence , tire fenders
Others Filling medium:LPG(propane);designing pressure 1.77Mpa,designing temperature 50ºC,filling factor:0.42t/m3,corrosion margin:1mm;tank dimension:12311*2466mm
Standard GB150-1998 Steel Pressure Vessels,Pressure Vessel Safety technical monitoring procedures, liquefied gas tanker safety inspection procedures

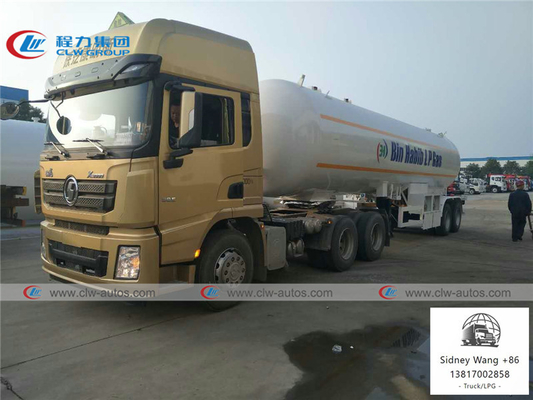

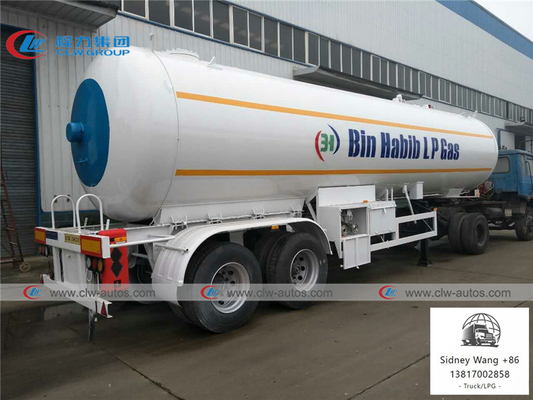

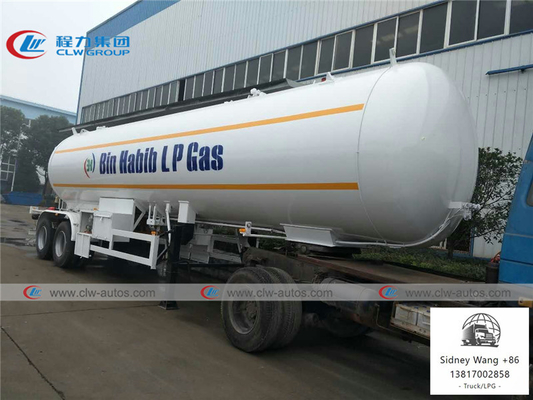

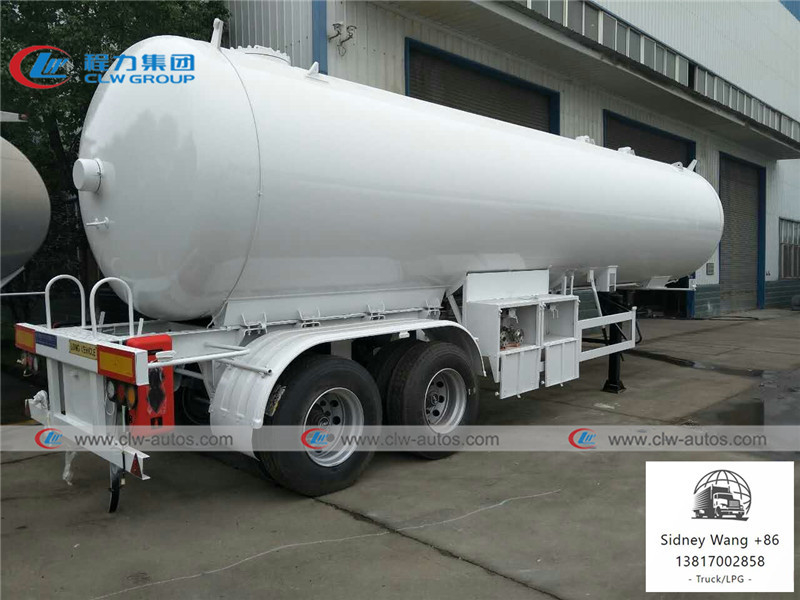

Reference Photos

2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport 02 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport 12 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport 22 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport 3





Workshop overview

2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport 4



Factory overview

2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport 5

2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport 6



The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )



2 Axle 20MT 40M3 Tank Semi Trailer For LPG Transport 7



Sales Service



① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ



Q1: What kinds of fuel tank trailer I can order from your company?

A: We can supply various sizes of fuel tank trailer from30-50tons,etc.



Q2: What's the material of your fuel tanker?

A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.



Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?

A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!





Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
