Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Foton, JMC, Howo, Dongfeng, Isuzu, JAC, Etc. | Gearbox: | 6 Forward & 1 Reverse Gear |
|---|---|---|---|
| Tank Material: | Carbon Steel, Stainless Steel Or Aluminum Alloy | Tank Volume: | 5M3, 10M3, 15M3, 20M3, 25M3 |
| Tank Shape: | Square Round, Round | Transport Oil Type: | Diesel, Petrol, Gasoline, Oil, Etc. |
| Oil Pump: | Chinese Famous Brand | Oil Dispenser: | Chinese Famous Brand |
| Hose Reel With Filling Gun: | 15 Meter (Length Can Be Longer As Per Request) | Oil Vapor Recovery System: | Optional |
| Delivery Time: | 35 Days | Color: | Customized |
| Warranty: | 1 Year | ||
| High Light: | 8000L Fuel Delivery Tank Truck,Aumark Fuel Delivery Tank Truck,Foton Aumark Oil Delivery Truck |
||
1. Purpose: It is used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2. Refueling System: Oil pump, Oil dispenser machine and Hose reel with filling gun, etc.
3. Advantage: High quality with competitive price.
4. We can supply fuel truck, refueling truck from 4000L to 40000L.
5. According to your requirements, it has functions of oil-absorbing, oil-pumping, separation variety of oil, separation packing of oil.
6. The tank material can choose carbon steel or 304 stainless steel or aluminum alloy.
7. Optional Chassis Brand: Dongfeng, Fonton,JMC, Sinotruk Howo, Shacman, FAW and etc.
8. Factory direct sale, high quality and good price.
Product Specifications
| FOTON Aumark Fuel Tank Truck (8CBM) | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | FOTON Aumark | |
| Overall Dimension | 6990x2200x2850 mm | |
| GVW / Kerb Weight | 11,995kg / 5,465kg | |
| Cab | Cab Capacity | RHD, 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine |
Fuel Type |
Diesel |
| Engine Brand | CUMMINS | |
| Power | 156 HP (115 KW) | |
| Displacement | 3760 ml | |
| Emission Standard | Euro 4 | |
| Chassis | Drive Type | 4X2 (Right hand drive) |
| Transmission | 6 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3800 mm / 2 | |
|
Tire Specification |
8.25-20 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 80 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 8,000 Litres |
| Tanker Material | Carbon Steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction head | 6 m | |
| Hose |
High quality, wire strengthened hose, with cooper wire, anti-static |
|
| Refueling Machine | Equipped based on customer requirement | |
| Control panel | English or Your language | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers... | ||
| Optional |
** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker). ** It can be divided into many compartments. ** Imported American pump as optional. ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|

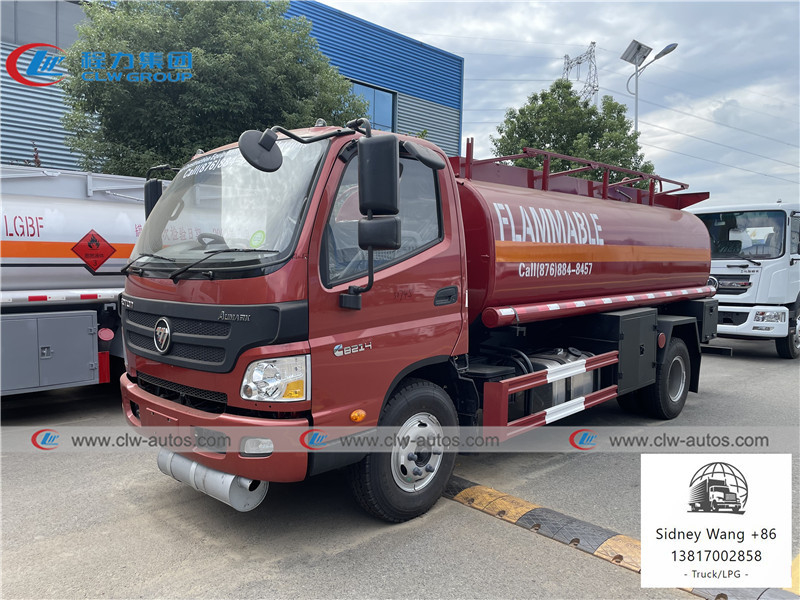

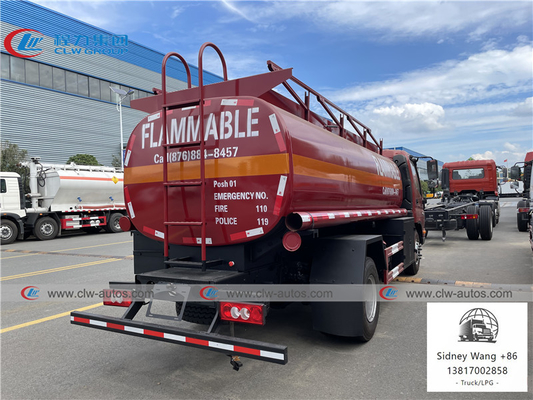

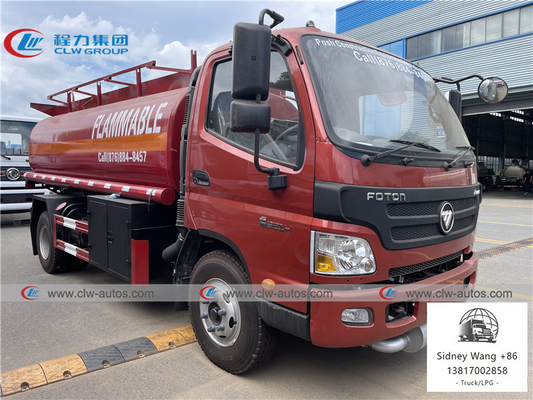

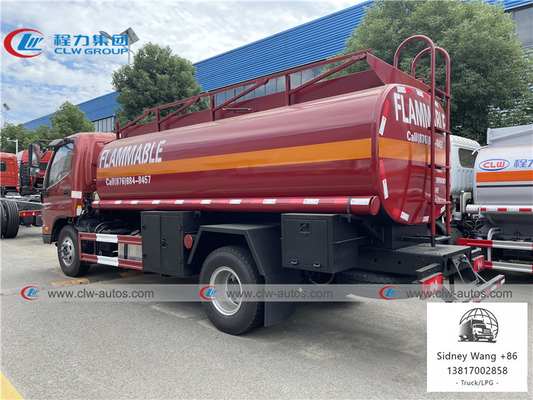

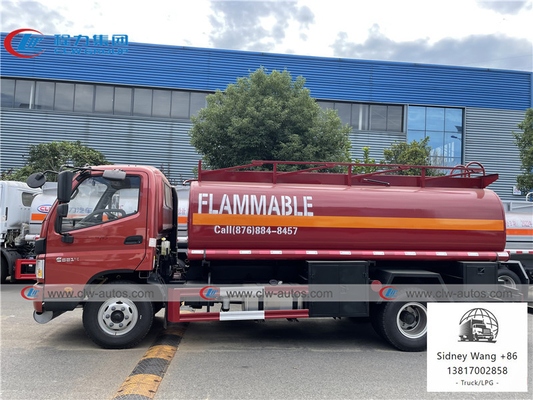

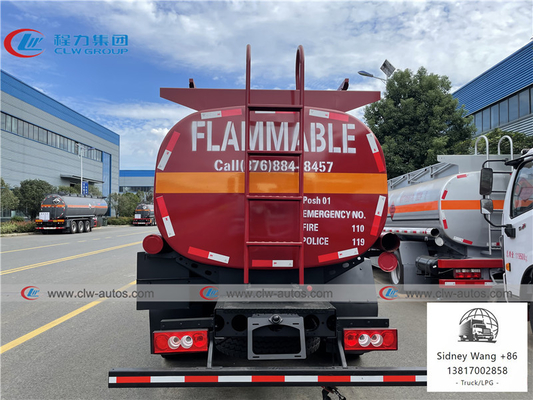

Reference Photos
Other Kinds of Fuel tank trucks
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Fuel Dispenser Tanker Truck I can order from your company?
A: We can supply different size Fuel Dispenser Tanker Truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Fuel Dispenser Tanker Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for Fuel Dispenser Tanker Truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
