Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel Q235B | Material Thickness: | 4mm To 6mm |
|---|---|---|---|
| Tank Capacity: | 15000-20000Liters, 5000Gallon | Loading Weight: | 12-18 Metric Ton |
| Truck Brand: | Dongfeng | Tire: | 11R22.5, 12R22.5. 10 Pieces With 1 Spare Tire |
| Cabin: | Left Hand Driving | Engine: | Dongfeng Cummins 210hp |
| Gearbox: | 6 Forward & 1 Reverse | Fueling System: | With Flow Meter |
| High Light: | 6x4 Gasoline Transport Truck,Dongfeng Kingland Gasoline Transport Truck,Dongfeng Kingland Diesel Transport Truck |
||
Dongfeng Kingland 15,000liters 18000Liters 6x4 Diesel Gasoline Transportation fuel Tanker Truck
Description:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators (Baffle) to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Specification
| Chassis | ||||||
| Chassis brand: | Dongfeng, DFS1251GLJ5 | |||||
| Drive type: | Manual, left hand drive,optional right hand drive | |||||
| Drive wheel: | 6*4 | |||||
| Tyre: | 10.00-20, 10+1pieces | |||||
| Control system: | Electrical hydraulic system | |||||
| Transmission: |
Six speed levers, 6 speed forward with 1 reverse |
|||||
| Chassis dimension: | 9550*2462*2950mm | |||||
| Braking system: | Air braking | |||||
| Clutch: | Uniwafer, dry clutch, hydraulic remote control | |||||
| Wheel base: | 4300mm+1350mm | |||||
| Axis number: | 3 pieces | |||||
| Cab Passengers: | 3 passengers | |||||
| Engine | ||||||
| Engine: | Cummins,B210-33 | |||||
| Horse power: | 210HP | |||||
| Exhaust: | 5900CC | |||||
| electric system: | 24V | |||||
| Emission standard: | Euro 3 | |||||
| Max speed: | 80km/h | |||||
| Fuel: | Diesel,optional gasoline | |||||
| Main parameters technical specifications | ||||||
| Overall size: | 10300*2490*3350mm | |||||
| Overall G.W.: | 31000kg | |||||
| Curb weight: | 10795kg | |||||
| Tank volume: | 15000-18000liters | |||||
| Tank shape: | Oval | |||||
| Tank material: | Carbon steel,optional other materials | |||||
| Tank color: | Any color customer like | |||||
| Tank thickness: | 5mm | |||||
| Srpings: | 9/13 | |||||
| Approach/departure angle: | 30/15. | |||||
| Overhang F/R: | 1245/2905mm | |||||
| Axis load: | 7000/17900 | |||||
| Warrenty: | 1 year | |||||
| Certification: | CCC, ISO... | |||||
| Tank Parameter | ||||||
| Transfer of Media: | Gasoline/diesel , density: 785-840kg/cbm | |||||
| Functions: | The tank can be separated several compartments to load | |||||
| different oil or chemical varieties | ||||||
| Fuel dispenser: | Optional single counting, double counting, and tax control | |||||
| fuel dipenser | ||||||
| Oil Pump | According to the purpose of tankers, you can choose | |||||
| centrifugal pumps, gear pump, copper gear pumps. | ||||||

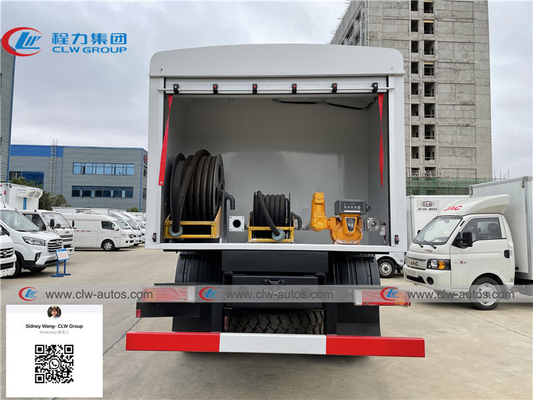

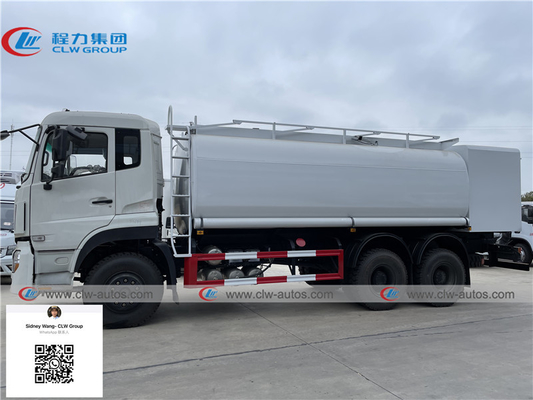

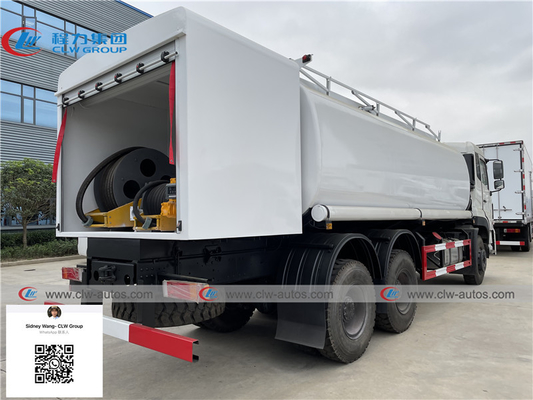

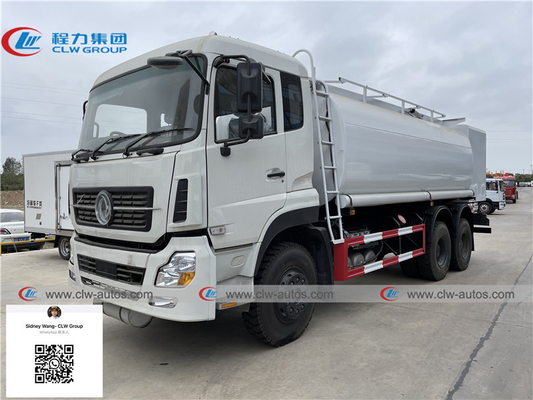

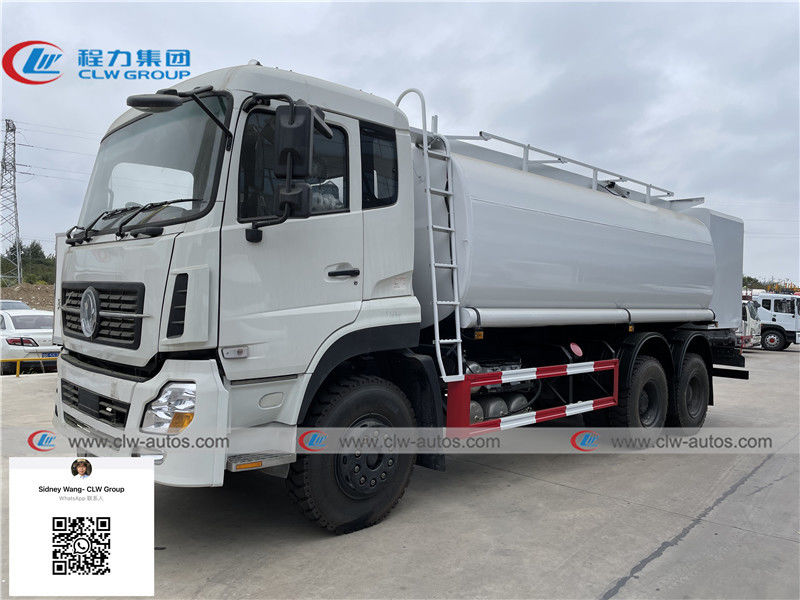

Reference photos

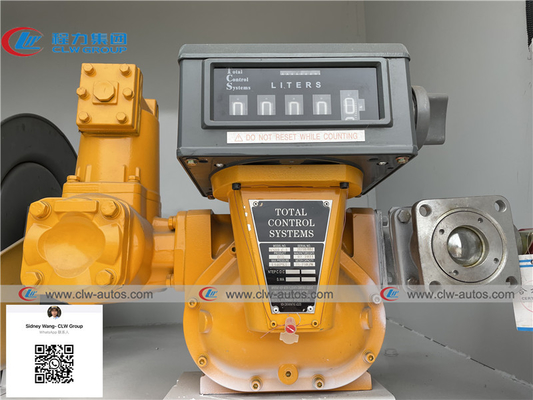

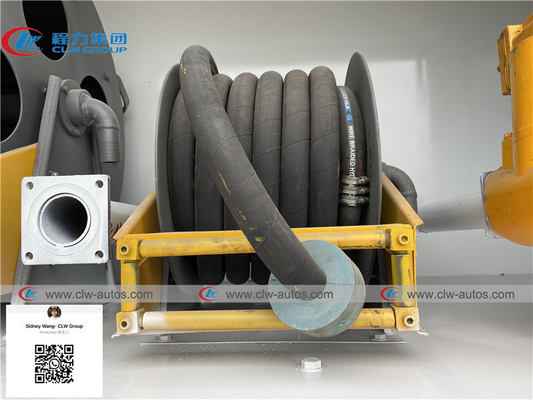

Parts photos
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
