Product Details:
Payment & Shipping Terms:
|
Truck Brand: | Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Fuel Truck | Drive Model: | 4x2, 6x4, 8x4, 6*4, 4*2,8*4 Fuel Truck |
---|---|---|---|
Tank Volume: | 25000liters,25000L,30000L,30000liters,35000Liters Fuel Truck | Fuel Type: | Diesel/gasoline/oil |
Condition: | Brand New | Transmission Type: | 9 Speed Forward And 2-reverse |
Horsepower: | 290hp, 336hp, 371hp | Tank Material: | Carbon Steel, Q235 Carbon Steel/ Stainless Steel, Carbon Steel/stainess Steel/aluminum Alloy, Aluminum Alloy, Aluminum 5083 |
Product Name: | Fuel Tanker Truck, Fuel Delivery Truck,Fuel Tank Truck,howo Fuel Truck | Emission Standard: | Euro2/3/4/5 |
Wheelbase: | 1800+4600+1350 | ||
High Light: | Foton Auman Gasoline Tanker Truck,8x4 Gasoline Tanker Truck,Foton Auman Diesel Tanker Trucks |
Specifications
Chassis | parameter | |
Chassis model | BJ5257 | |
Overall dimensions | 11250×2500×3400mm | |
GVW | 32000 kg | |
Wheel base | 1800+4300+1300mm | |
F/R track base | 1930/1860mm | |
Approach/departure angle | 15/15° | |
Exhaust/kw | 8820ml/199kw | |
Max speed | 85km/h | |
Tire specification | 12.00R20 | |
Traction system | 8x4 | |
Number of axles | 4 | |
Emission standard | Euro 3 | |
Operation control system | Electrically hydraulic control | |
Engine type | SC9DK270Q3B1 | |
transmission | 9-speed with over drive | |
Electric system | 24v | |
Equipment | Tank meterial: 6mm aluminum alloy steel. | |
Equipped with fire extinguisher, ladder, grounding wire |
Upper structure | ||
Oil Tank | External Dimension | 7800×2450×1600 (mm) |
Effective Volume | 25CBM/25000Liters | |
Transport Oil Type | Fuel and Chemical Liquid | |
Tank Material | Aluminum alloy | |
Tank Shape | Square Round | |
API European standard system | Oil Vapor Recovery System | |
Anti-overflow probe | ||
Electrostatic wire reel | ||
Cut-off valve | ||
Unloading valve | ||
Others | Lifting fence, ladder, etc. | |
Options |
1)Refueling System, flow meter, tanker aircraft, etc. 2)Tank can be divided into several seperated compartments. |

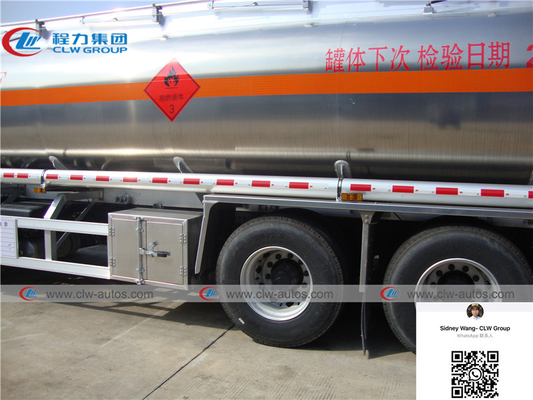

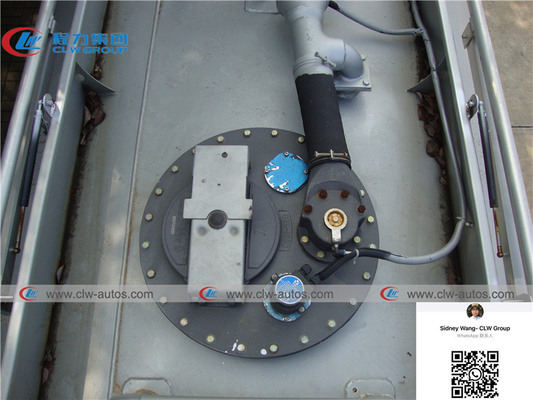

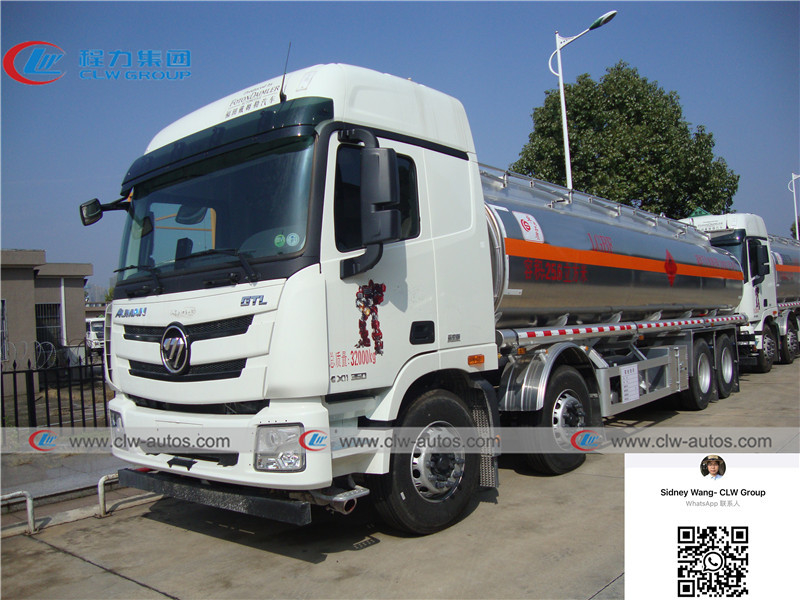

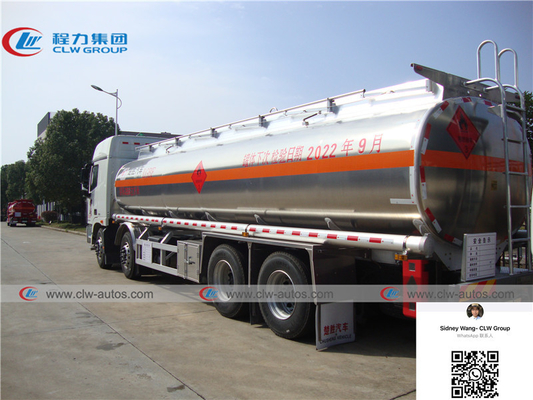

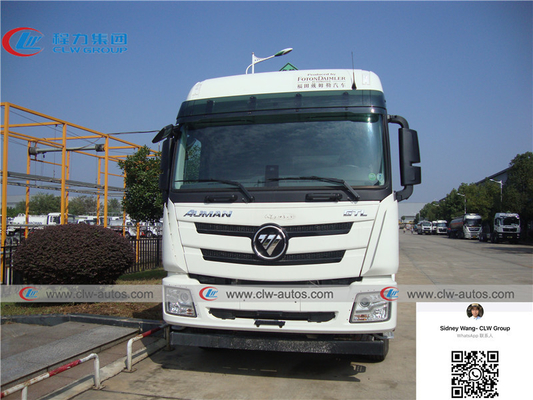

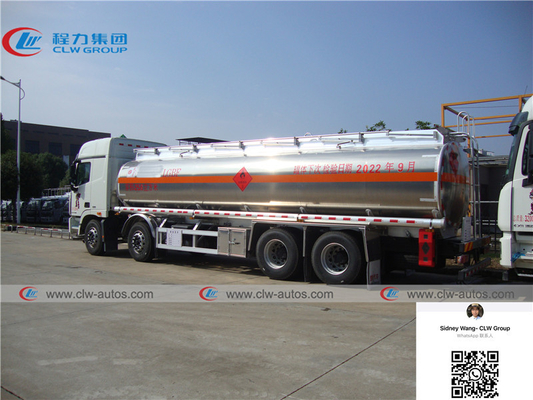

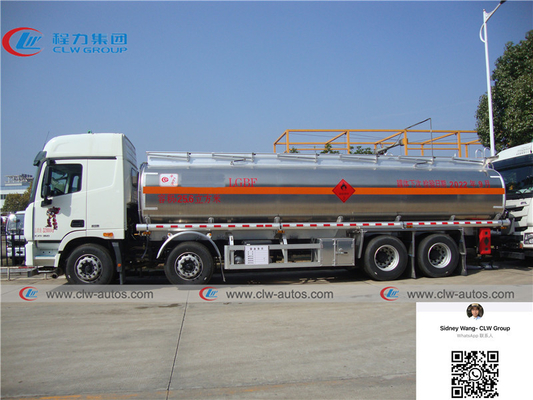

Reference pictures
