| Design Code: | Total Standard | Type Of Discharge Valve: | API Or French Style |
|---|---|---|---|
| No. Of Compartment: | 2 Or 3 Or 4 Or 5 Or 6 Or 7 Or 8 | Size Of Discharge Valve: | 3inch Or 4 Inch |
| No. Of Axle: | 2 Or 3 Or 4 | Axle Brand: | BPW Or Fuwa Or Hj |
| Tyre Brand: | Triangle Or Double Coin | Size Of Tire: | 12r22.5 Or 315/80r22.5 Or 385/60r22.5 |
| Air Operated Shut-off Valves: | Yes | Rear Ladder: | Yes |
| Top Safety Rail: | Yes | Level Gauge: | Optional |
| Anti-Theft Lock: | Optional | Additional Fuel Tanker: | 500liter Or 1000liter Are Optional |
| Spare Tire Rack: | Yes | ||
| High Light: | BPW Axle Tanker Semi Trailer,JOST Axle Tanker Semi Trailer,35CBM Diesel Delivery Truck |
||
2 Axle 35000liters 35CBM Aluminum alloy Fuel Tanker/Gasoline Diesel Transport tanker Truck JOST BPW axle Semi-trailer
Product Description
1- Oil Tanker Trailers ,also called oil tanker semitrailer,fuel tank semitrailer,oil tanker trailer,
oil semitrailer,semi tanker trailer,stainless steel tanker trailer,carbon steel fuel trailer is used to deliver/transport/haulage oil,eatable oil,palm oil,maripa oil,gasoline,diesel,kerosene and so on.
2- Oil Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL,vietnam,Tanzania and Zambia.
3- Oil Tanker Trailers is optional for air bag suspension,front axle lifting.
4- Nice shape and rational structure.
5- High class running system and tank material.
6- high-intensity kingpin and landing legs.
7- top gemany brand BPW axle or Chinese brand FUWA axles.
8- Durable and long term service life.
Product Specification
| Dimension | |
| Overall dimension | 11000x2500x2550mm |
| Tare weight | 6500kgs |
| Tank | |
| Shape | Oval shape |
| Total volume | 35000L |
| Tank body material | Aluminum alloy 5083 5mm |
| Tank end plate | Aluminum alloy 5083 7mm |
| Manhole cover | Aluminum manhole cover |

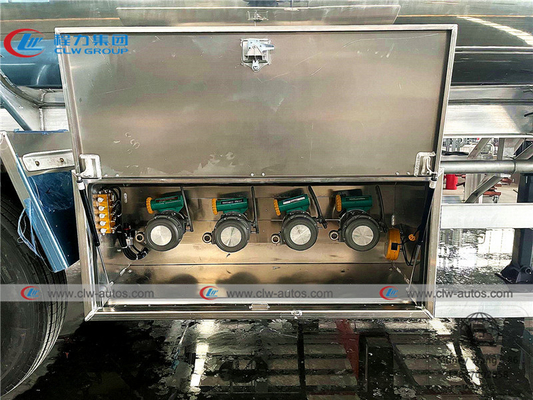

| Bottom valve | Pneumatic control bottom valve |
| Discharge valve | 4 inches European type discharge valve |
| Vapor recovery system | Without vapor recovery system |
| Trailer chassis | |
| Main beam | Heavy duty special design I beam Made by aluminum alloy 6061 |
| Axle | BPW axle |
| Landing gear | FUWA landing gear |
| Kingpin | FUWA kingpin 2 inches |
| Suspension | Mechanical suspension |
| Braking system | WABCO RE 6 replay valve, T30/30 air chamber |
| Tire | 12R22.5 |
| Wheel rim | 9.0 |
| Accessories | One tool box, 2pcs extinguisher |

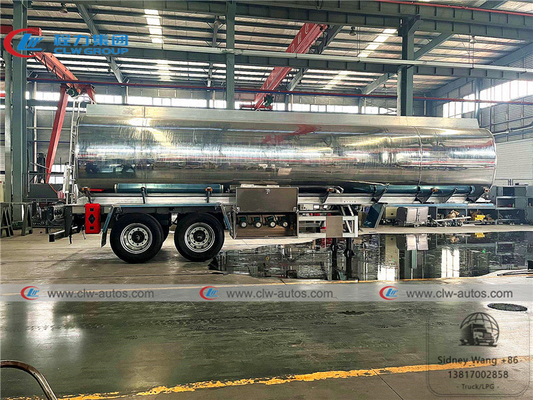

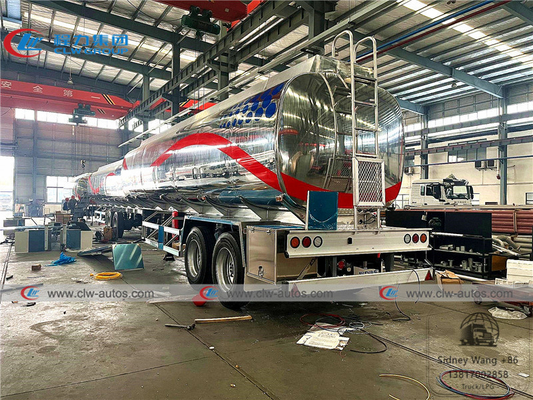

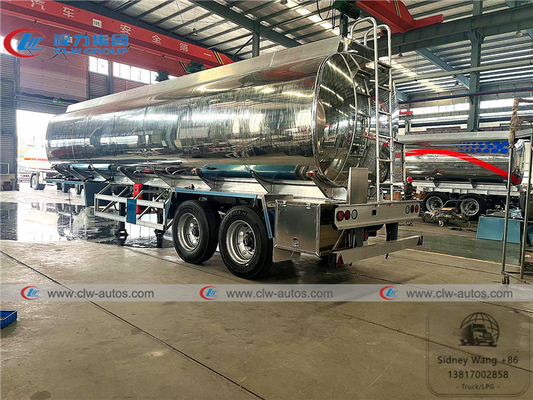

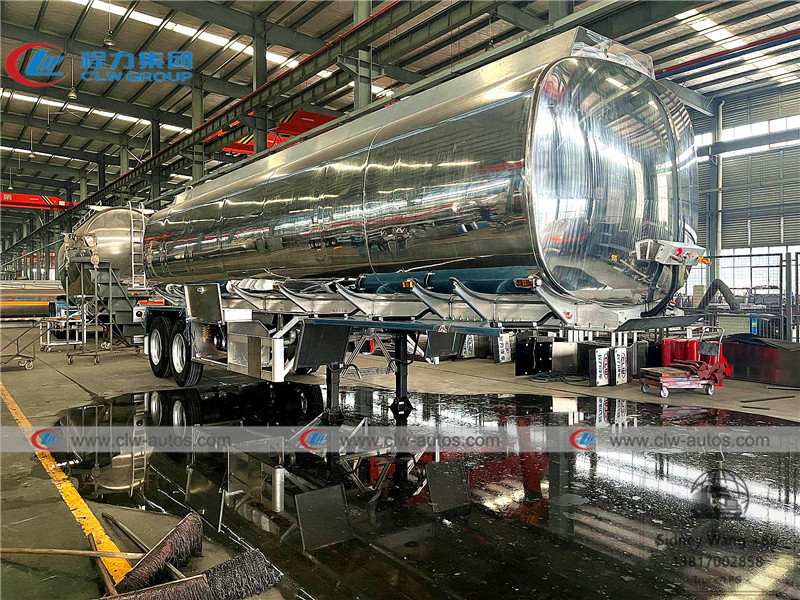

Reference Photos
Main Structure Diagram
Factory overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of fuel tank trailer I can order from your company?
A: We can supply various sizes of fuel tank trailer from30-50tons,etc.
Q2: What's the material of your fuel tanker?
A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.
Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
