Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel Q235B | Material Thickness: | 4mm To 6mm |
|---|---|---|---|
| Tank Capacity: | 20000Liters, 5300Gallon | Loading Weight: | 15-18 Metric Ton |
| Truck Brand: | Shacman | Tire: | 12.00R20 10 Pieces With 1 Spare Tire |
| Cabin: | Left Hand Driving | Engine: | WD615.97C 300hp |
| Gearbox: | 6 Forward & 1 Reverse | Fueling System: | With Flow Meter Or Dispenser |
| High Light: | 20000L Fuel Delivery Truck With Dispenser,Shacman 6x4 Fuel Delivery Truck,Shacman 6x4 Fuel Dispenser Truck |
||
Shacman 6x4 20000Liters Fuel Tanker Truck oil gasoline diesel transport tank truck fuel Bowser truck with oil dispenser
Description:
1. Tank material: Q235 (carbon steel) Q304 ( stainless steel) Q316 (stainless steel) 5454 Aluminum.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Specifications:
| Truck Type | Shacman 6*4 fuel Tank Truck | |
| Truck Brand | Shacman | |
| Driving Type | Left OR Right Hand Driving | |
| Dimension(Lx W x H)(mm) | 10184x2500x3050 | |
| Approaching angle/Departure angle(°) | 16/10 | |
| Overhang(front/rear) (mm) | 1500/3109 | |
| Tank capacity( m3 ) | 20 m³ 20000Liters | |
| Gear oil pump | Model | 76YCB-40(F) |
| flux m3/h | 40 | |
| In /out cabiber mm | 76 | |
| RPM r/min | 960 | |
| Remarks: oil pump model with F, represent relief valve, used for oil tanker truck with oil gun. | ||
| Wheel base (mm) | 5225+1350 | |
| Max speed(km/h) | 90 | |
| Curb weight(kg) | 11670 | |
| Total weight(kg) | 25000 | |
| Engine | Model |
WD615.97C,water-cooled,four strokes, 6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
| Fuel type | Diesel | |
| Horse Power | 300hp | |
| Emission | EURO 4 | |
| Fuel tanker capacity(L) | 300 | |
| Transmission | Model |
HW13710 10 forwards and 2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake |
spring energy, compressed air operating on rear wheels |
|
| Auxiliary brake | Engine exhaust brake | |
| Steering system | Model |
ZF8098,hydraulic steering with power Assistance Ratio:22.2-26.2 |
| Front axle |
HF7 disc brake, Steering with double T-cross section beam Loading capacity: 7000kg |
|
| Rear axle |
HW1279, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 12000kg |
|
| Color | Optional | |
| Chassis |
Frame: U-profile parallel ladder frame with section of 300*80*8mm and reinforced sub frame all cold riveted cross member Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi -elliptic leaf spring and bogie springs |
|
| Tire size | 12.00R20 | |
| Tire quantity | 10+1 spare tire | |
| Electrical system | Battery: 2X12V/165Ah | |
| Alternator: 28V-1500kw | ||
| Starter: 7.5Kw/24V | ||
| Cab |
with one sleeper and air-conditioner, all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|

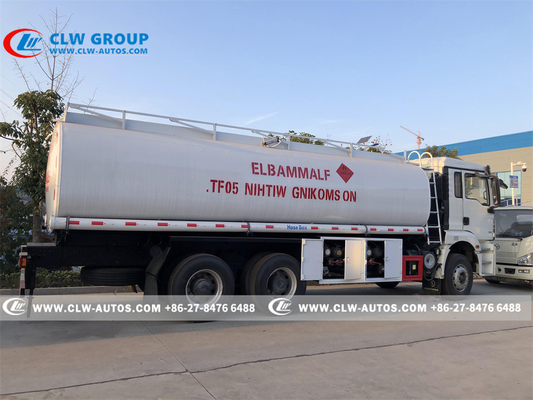

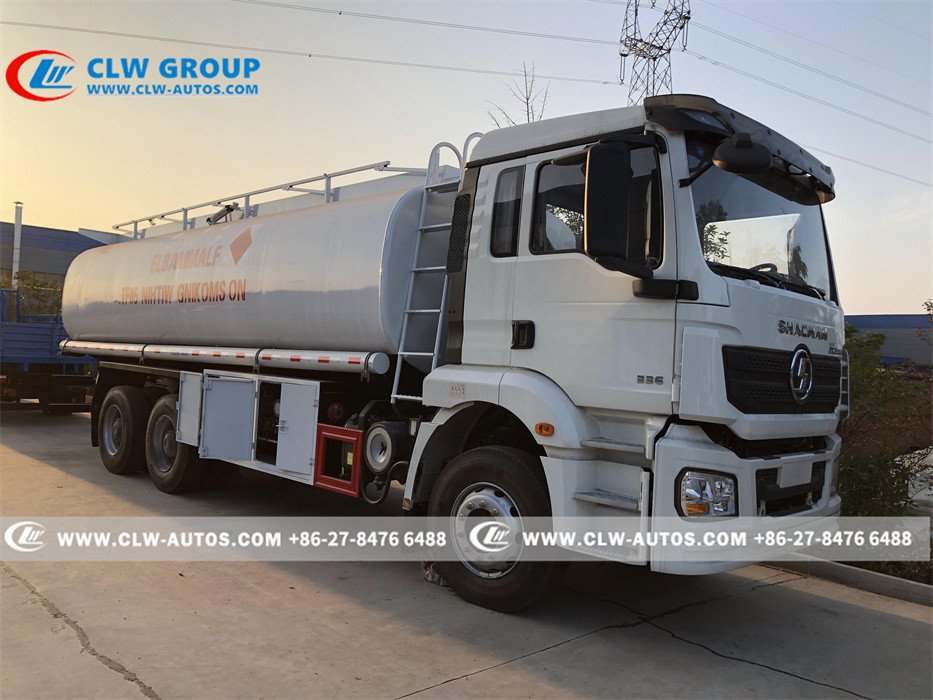

Reference photos
Parts photos
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
