Shacman 8x4 370HP 33cbm 35cbm 37cbm Fuel Tanker Truck For Gasoline Delivery

Large Image : Shacman 8x4 370HP 33cbm 35cbm 37cbm Fuel Tanker Truck For Gasoline Delivery

Product Details:

Place of Origin:	Suizhou,China
Brand Name:	CLW
Certification:	ISO, CCC, DOT, CE
Model Number:	clw5722

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	42250-58620USD/UNIT
Packaging Details:	Naked package shipped by bulk ship
Delivery Time:	30 days after received advance payments
Payment Terms:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	300units/month

Contact Now

Detailed Product Description

Truck Brand:	Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Fuel Truck	Drive Model:	4x2, 6x4, 8x4, 64, 42,8*4 Fuel Truck
Tank Volume:	33000liters,35000Liters, 37,000liters	Fuel Type:	Diesel/gasoline/oil
Condition:	Brand New	Transmission Type:	9 Speed Forward And 2-reverse
Horsepower:	290hp, 336hp, 371hp	Tank Material:	Carbon Steel, Q235 Carbon Steel/ Stainless Steel, Carbon Steel/stainess Steel/aluminum Alloy, Aluminum Alloy, Aluminum 5083
Product Name:	Fuel Tanker Truck, Fuel Delivery Truck,Fuel Tank Truck,howo Fuel Truck	Emission Standard:	Euro2/3/4/5
Wheelbase:	1800+4600+1350
High Light:	37cbm Fuel Tanker Truck , 35cbm Fuel Tanker Truck , Shacman 8x4 Gasoline Delivery Truck

Shacman 33000liters 35000liters 8X4 Oil Fuel Tanker Truck fuel delivery truck diesel gasoline transport tanker truck

Description:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum alloy tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

Specifications

Chassis	parameter
Chassis model	Shacman
Overall dimensions	11250×2500×3400mm
GVW	32000 kg
Wheel base	1800+4300+1300mm
F/R track base	1930/1860mm
Approach/departure angle	15/15°
Exhaust/hp	10L/370
Max speed	85km/h
Tire specification	12.00R20
Traction system	8x4
Number of axles	4
Emission standard	Euro 3
Operation control system	Electrically hydraulic control
Engine type	SC9DK270Q3B1
transmission	9-speed with over drive
Electric system	24v
Equipment	Tank meterial: 6mm aluminum alloy steel.
	Equipped with fire extinguisher, ladder, grounding wire

Upper structure
Oil Tank	External Dimension	7800×2450×1600 (mm)
	Effective Volume	35CBM/35000Liters
	Transport Oil Type	Fuel and Chemical Liquid
	Tank Material	Carbon steel
	Tank Shape	Square Round
API European standard system	Oil Vapor Recovery System
	Anti-overflow probe
	Electrostatic wire reel
	Cut-off valve
	Unloading valve
Others	Lifting fence, ladder, etc.
Options	1)Refueling System, flow meter, tanker aircraft, etc. 2)Tank can be divided into several seperated compartments.

Reference pictures

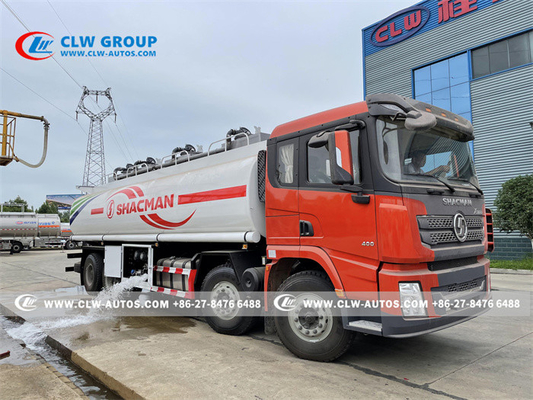

Shacman 8x4 370HP 33cbm 35cbm 37cbm Fuel Tanker Truck For Gasoline Delivery 0

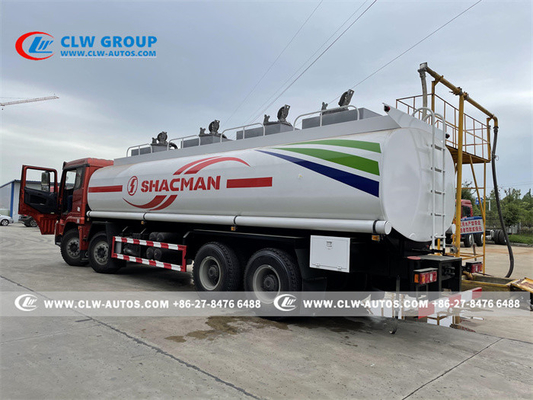

Shacman 8x4 370HP 33cbm 35cbm 37cbm Fuel Tanker Truck For Gasoline Delivery 1

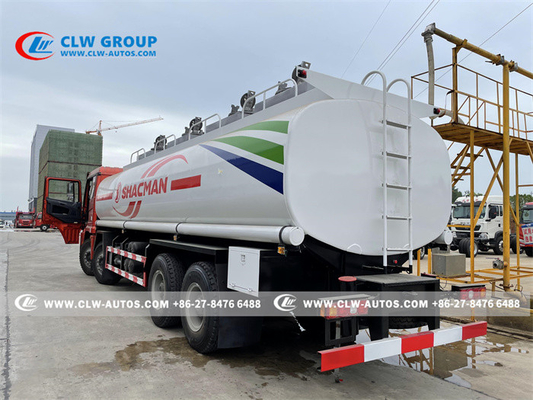

Shacman 8x4 370HP 33cbm 35cbm 37cbm Fuel Tanker Truck For Gasoline Delivery 2

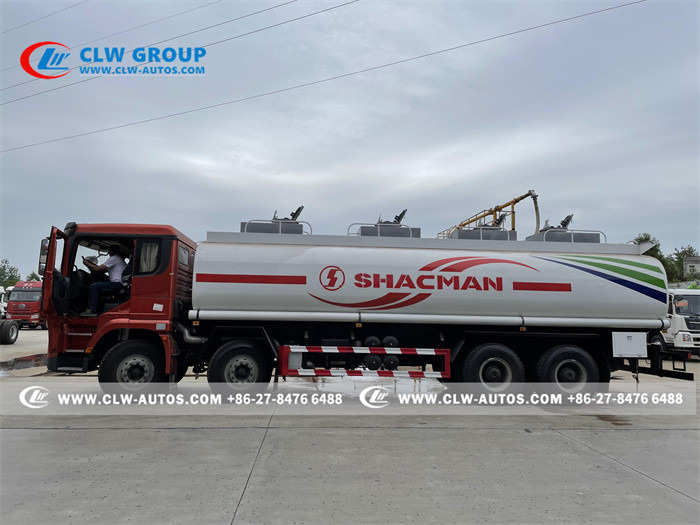

Shacman 8x4 370HP 33cbm 35cbm 37cbm Fuel Tanker Truck For Gasoline Delivery 3

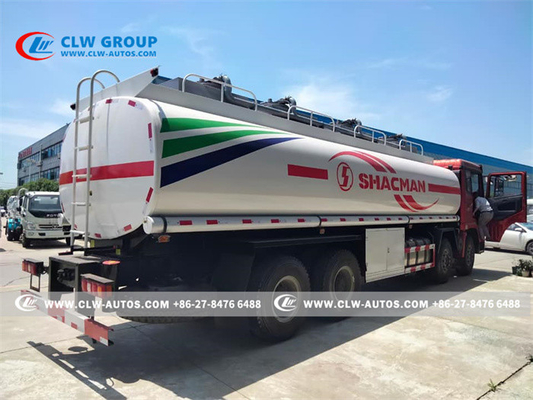

Shacman 8x4 370HP 33cbm 35cbm 37cbm Fuel Tanker Truck For Gasoline Delivery 4

Customer visiting

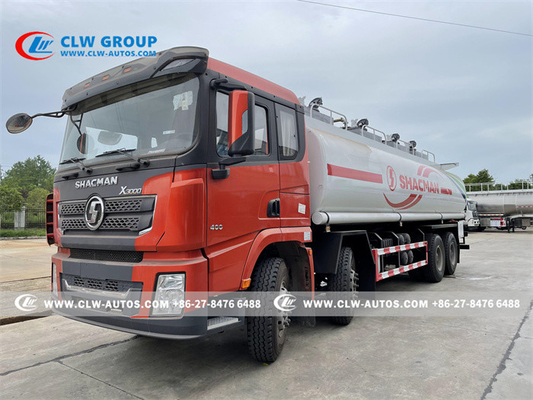

Shacman 8x4 370HP 33cbm 35cbm 37cbm Fuel Tanker Truck For Gasoline Delivery 5

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship

After Sales Service

Email & Phone call tracking for each truck on timely manners.
