Product Details:
Payment & Shipping Terms:
|
| Truck Brand: | ISUZU,HOWO,DONGFENG,FAW,SHACMAN Bulk Feed Truck | Material: | Carbon Steel/aluminum Alloy Bulk Feed Trailer |
|---|---|---|---|
| Loading Medium: | Bulk Feed,grain,powder And So On | Volume: | 55cbm,58m3,60cbm,63m3, 66m3 |
| Thickness: | 4mm | Compartment: | 1,2,3 Optional |
| Color: | Customized | Logo: | As Per Your Request |
| High Light: | 50T Truck Semi Trailer,40T Truck Semi Trailer,66cbm Bulk Feed Delivery Truck |
||
3 axle 66cbm 66000Liters 40tons 50tons Bulk feed transportation truck semi-trailers for feed mill
Product description:
Bulk feed trucks/semi-trailers are mainly used to transport feedstuff finished products or feed raw materials like soy bean meal from feed mills to livesstock farms, poultry farms and feed processing users, and at the same time it is also available to transport some of the non-corrosive powder and granular materials, such as liquor-making raw materials, pharmaceutical raw material powders as well as grain.
Product specifications:
|
Product name
|
66000Liters Bulk feed transportation truck semi-trailers for feed mill or farm | ||
|
Capacity
|
66cbm/66000Liters
|
||
|
Dimensions
|
13750x2550x4000mm
|
||
|
Wheel Base(mm)
|
7080+1310+1310
|
||
|
G.V.W.(kgs)
|
40000-50000
|
||
|
Rated load Weight(kgs)
|
27290
|
||
|
Curb Weight(kgs)
|
12710
|
||
|
Tyre
|
Tyre Quantity
|
12pcs+1 spare tire | |
|
Tyre Specification
|
11R22.5 16PR | ||
|
Axle
|
13 Ton Fuwa Axle, 16 Ton brake pad.
|
||
|
Suspension
|
Mechanical suspension
|
||
|
Lifting leg
|
28T JOST Lifting leg
|
||
|
Tractor
|
50# JOST traction pin
|
||
|
Tool box
|
2pcs
|
||
|
Equipment & Performance
|
1. The tank body is made of 4mm high-quality titanium steel plate.
2. The tank body is divided into six compartments to storage different kinds of feed.
3. Transmission distance: maximum horizontal distance: 6.1m, Vartical distance: 8m
4. Average discharge rate(kg/m): 400~500
5. Discharge system rotation angle:±180 degree, system elevation angle: 60 degree
6. Discharge type: electric screw, hydraulic screw is optional
|
||

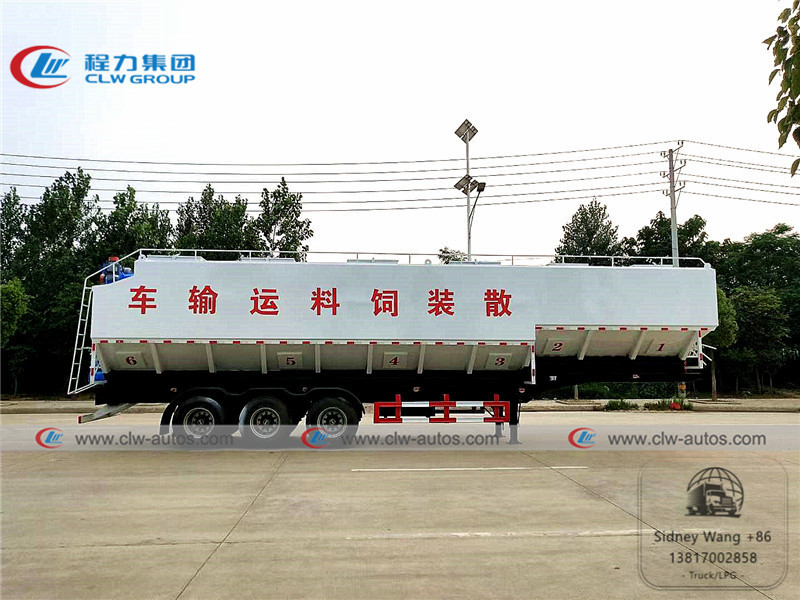

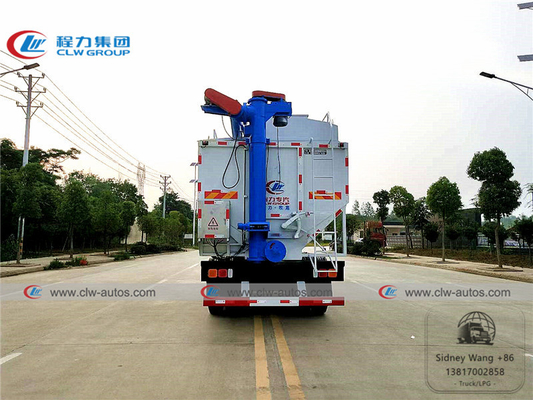

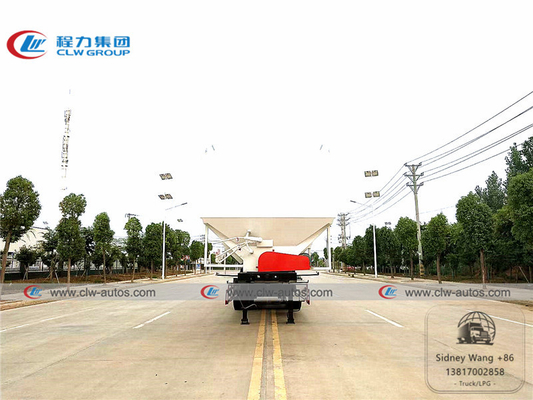

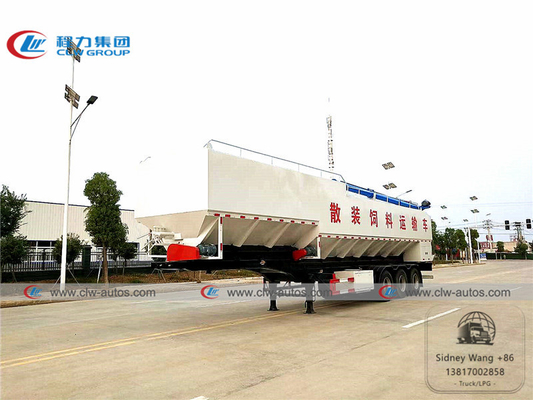

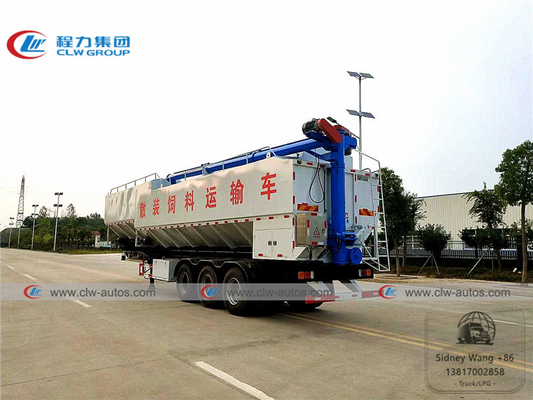

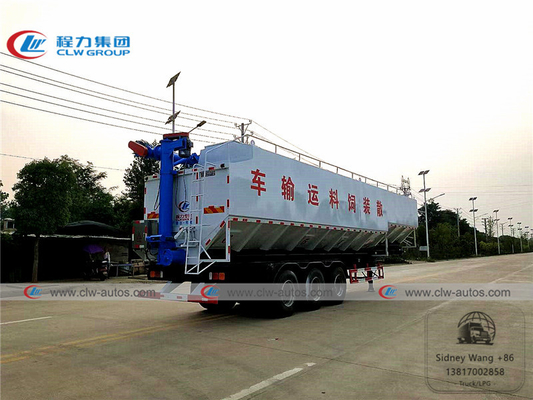

Reference photos
Factory overview
Located in Suizhou city,hubei province, central China, the Hubei Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special purpose trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck,Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck,Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food Truck/Vender Truck and all kinds of special Trailer applied in sanitation,construction, transportation, chemical, oil and gas, emergency rescue and so on.
With leapfrog development in 16 years since 2004, now Hubei Chengli Special Automobile Co., Ltd has owned more than 70 professional workshops for different vehicles and 2 technical centers, more than 12,600 staffs, in which more than 800 are R&D persons and more than 5000 are technical workers..
CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
