Product Details:
Payment & Shipping Terms:
|
| Dimension: | 40ft, Or 45ft | Axle: | FUWA, BPW, L1, HJ Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Nos. Of Alxe: | 3 Axle, 4 Axle, 5 Axle |
| Suspension: | Mechanical Suspension Or Air Suspension | Length: | 13 Meters |
| Landing Gear: | JOST Brand | Loading Capacity: | 60tons, 50tons, 60 Tons, 50 Tons. 60MT, 50MT |
| Deck Thickness: | 3mm, 5mm. | Product Name: | Wall Side Trailer, FENCE Trailer, Drop Side Trailer. |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST,Jost 2.00 Or 3.5 Inch Bolt Type Or Welding Type | Brake System: | Dual Line Braking System |
| High Light: | 60T Fence Semi Trailer,50T Fence Semi Trailer,45T Cargo Semi Trailer |
||

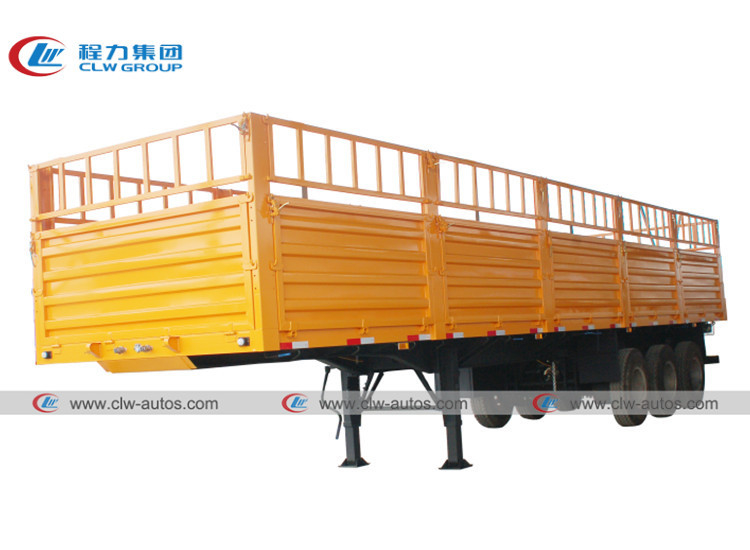

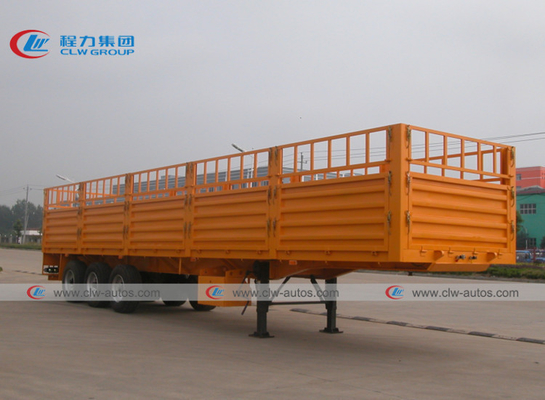

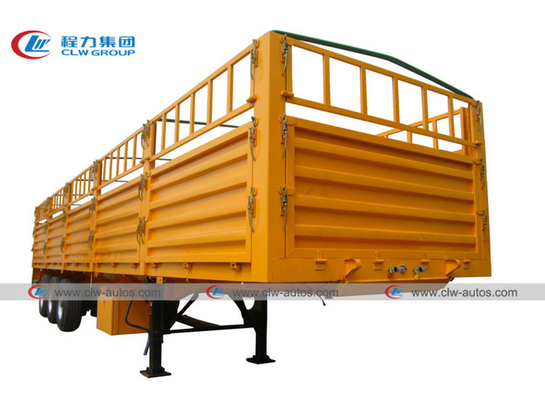

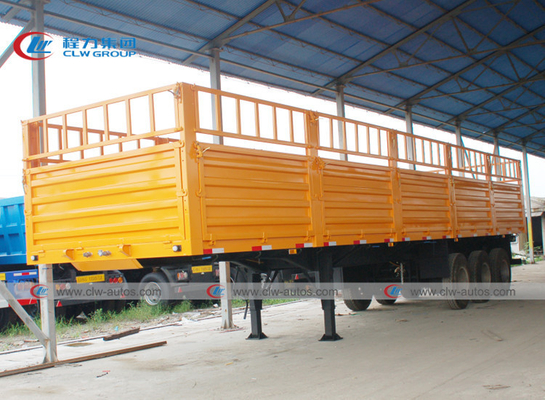

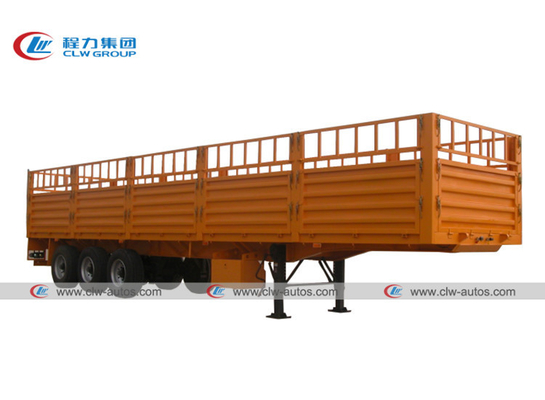

40ft 3 axle 45Tons 50Tons 60Tons Warehouse Cargo Fence Semi Trailer
Chengli Special Automobiel Co., Ltd. as the professional semi trailers supplier, mainly offer the heavy haul lowbed trailers. front detachable goose neck lowboy trailers, container side lifter trailers and customized extendable low bed trailers, fuel cement tanker or acid tanker trailer, end and side tipper trailers and flatbed trailers. Also we can customize the trailers for you, like the drawbar trailers, interlink flatbed or chassis trailers, terminal port skeleton trailer, log trailer and heavy duty multi axle low loader trailers.
Chengli Special Autombile Co., Ltd, CLW's semi trailers has successfully entered into over 50 countries around the world, such as Ethiopia, Malawi, Uganda, Mali,Zimbabwe, Zambia, Nigeria, Algeria, Sudan, Kenya, Djibouti, India, Pakistan, Argentina, Chile, Mexico, and so on.
| 3 axle fence trailer | |||||
| No | ITEM | Unit | Quantity | MODEL | |
| 1 | Axle | Piece | 3 | 13T FUWA, 220mm width braking pad With 4S/2M ABS, made in China |
|
| 2 | Tyre | Piece | 13 | 11.00R20, with a spare tire | |
| 3 | Rim | Piece | 13 | 8.0-20 | |
| 4 | Suspension | Set | 3 | Standard mechanical reinforced type | |
| 5 | Leaf spring | Set | 6 | 10pcs, 90mm width, 13mm thickness | |
| 6 | Kingpin | Piece | 1 | 3.5" bolted type.JOST KZ1412 | |
| 7 | Emergency relay valve | Piece | 1 | WABCO | |
| 8 | Landing gear | Set | 1 | 28T two sides operation | |
| 9 | Cross beam | W type, interval space 450mm | |||
| 10 | Chamber | 6 | T30/30 4 pcs | ||
| 30 2 pcs | |||||
| 11 | Electrical system | Set | 1 | Plug 7 lines, 24 volt, LED lights. | |
| Main Specification of Trailer | |||||
| NO | Specification | Numerical value | |||
| 1 | Overall dimension(L*W*H) | 13000*2550mm Side wall:600mm closed, open downward 600+600 mm mesh, open backward 100mm interval space Intal side wall height 2000mm Each side 6 nos ratchets Front welded small ramp and canvas bracket, tarpaulin rod Detail refer to the confirmed drawing |
|||
| 4 | Floor | 2 mm flat | |||
| With 6 pcs 6.3# channel pad steel | |||||
| 5 | Spare wheel carrier | 2 pcs, normal | |||
| 6 | Upper and lower wing-plate thickness | 10/10mm, width 146mm | |||
| 7 | Side beam | 140mm bending plate, thickness 2.5mm | |||
| 8 | Height of the beam | 500mm, web plate thickness:5mm | |||
| 9 | Water tank | 1500mm length, ∮550 location designed by the engineer | |||
| 10 | Paint | High quality paint, whole trailer waxed | |||
| 11 | Color | According to your required color code | |||
Heavy Duty landing gears:
As per the capacity, there are 5ton 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.
As per the gearbox, there are both Gearbox inside and Gearbox outside type.
As per the operation, there are both Single-Side Operation and Double-Side Operation type.
As per the Sand Shoe, there are T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.
90# 3.5'' trailer welding king pin
We can provide several model with different specifications.
certification:ISO9001-2000
90# 3.5'' trailer bolt connecting king pin
1. specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. high quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. high performance premiun non-asbestos brake linings, extend service life
4. easy for ABS installation
5. camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. new tight fit hub cap have O rings, high property for sealing
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs. Computer-operated vents on the air springs, suspension sensors, and an on board air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
