Product Details:
Payment & Shipping Terms:
|
| Dimension: | 40ft, Or 45ft With Twist Lock | Axle: | FUWA, BPW, L1, HJ Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Nos. Of Alxe: | 3 Axle, 4 Axle, 5 Axle |
| Suspension: | Mechanical Suspension Or Air Suspension | Length: | 13 Meters |
| Landing Gear: | JOST Brand | Loading Capacity: | 60tons, 50tons, 60 Tons, 50 Tons. 60MT, 50MT |
| Deck Thickness: | 3mm, 5mm. | Product Name: | Wall Side Trailer, FENCE Trailer, Drop Side Trailer. |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST,Jost 2.00 Or 3.5 Inch Bolt Type Or Welding Type | Brake System: | Dual Line Braking System |
| Type: | Side Wall Removable， Detachable | ||
| High Light: | 60 Ton Stake Fence Semi Trailer,40ft Stake Fence Semi Trailer,40ft Tri Axle Fence Semi Trailer |
||

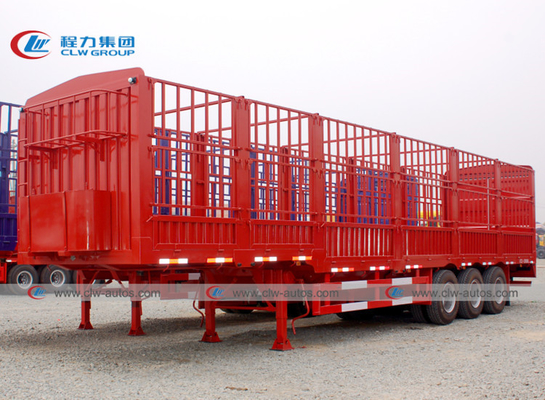

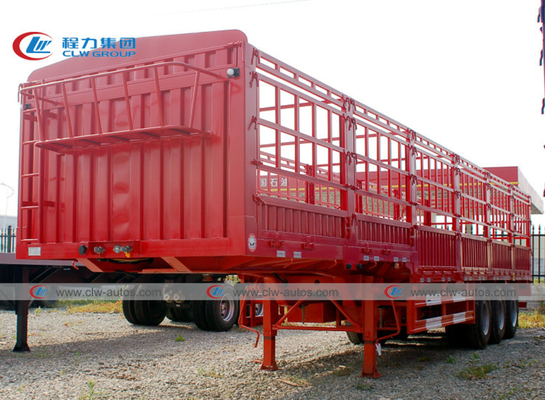

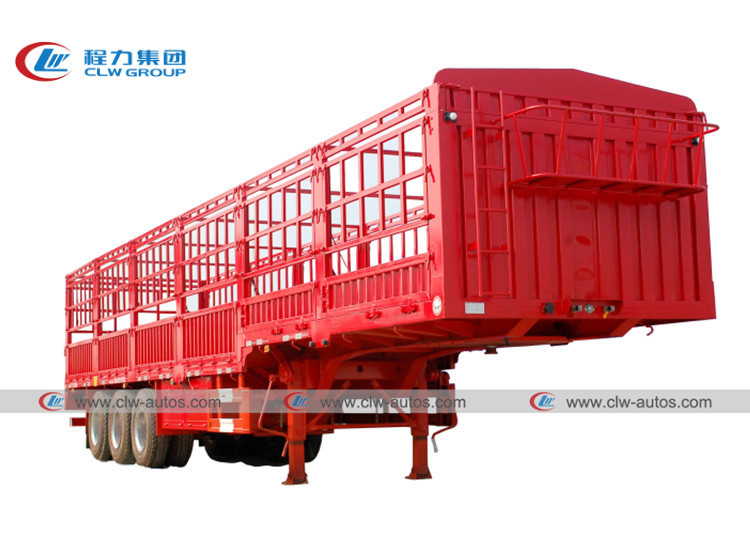

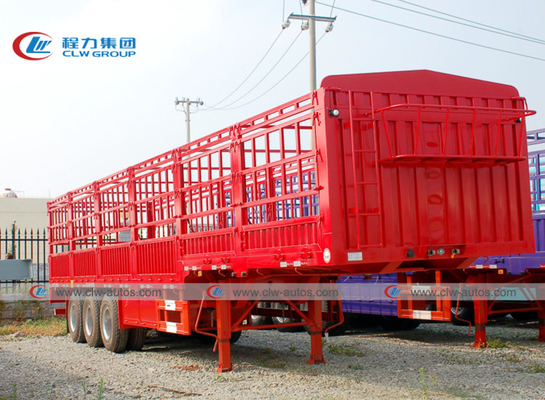

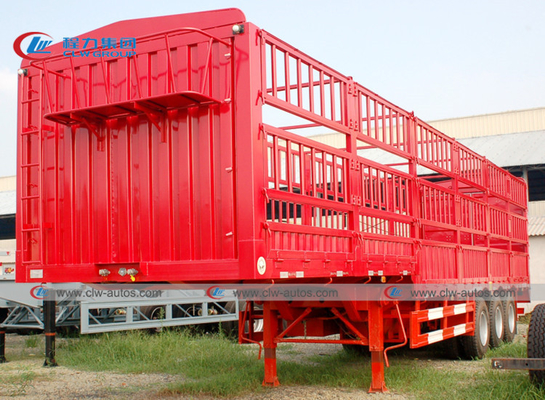

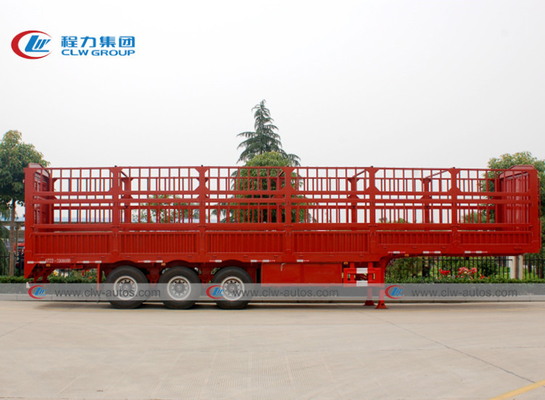

40ft Tri-axle 60Tons Side Wall Warehouse Stake Fence Semi Trailer
Chengli Special Automobiel Co., Ltd. as the professional semi trailers supplier, mainly offer the heavy haul lowbed trailers. front detachable goose neck lowboy trailers, container side lifter trailers and customized extendable low bed trailers, fuel cement tanker or acid tanker trailer, end and side tipper trailers and flatbed trailers. Also we can customize the trailers for you, like the drawbar trailers, interlink flatbed or chassis trailers, terminal port skeleton trailer, log trailer and heavy duty multi axle low loader trailers.
Chengli Special Autombile Co., Ltd, CLW's semi trailers has successfully entered into over 50 countries
around the world, such as Ethiopia, Malawi, Uganda, Mali,Zimbabwe, Zambia, Nigeria, Algeria, Sudan,
Kenya, Djibouti, India, Pakistan, Argentina, Chile, Mexico, and so on.
| Overall dimension | 12560*2500*2650mm |
| Max payload | 45 Ton |
| Axle | 13 Ton capacity |
| Tires | 12 pcs |
| Rim | 8.0-20 |
| Wheelbase | 7100+1310+1310mm |
| The height of beam | 500mm |
| Upper plate | 14mm |
| Down plate | 16mm |
| Middle plate | 8mm |
| Platform plate | 3mm diamond plate |
| Leaf spring | 10 pcs |
| Ladding gear | 28000kg |
| Trailer Model | 40ft/2*20ft container warehouse semi Trailer/ trailers |
|
Overall Dimension (Lx W x H)(mm) |
12600*2500*1490 |
| Function | 1x40ft container or 2x20ft container. Or carry other stuff. |
| Tare Weight(KG) | 6350 |
| Loading Weight( KG) | 40000 |
| Total Weight(KG) | 50000 |
| Axle Brand | FUWA Brand 13TON Axle, Optional BPW |
| Axle Number | Three |
| Wheelbase(mm) | 6260+1310+1310 |
| Suspension system | Mechanical suspension |
| Steel Spring | 10/10/10leaf spring suspension |
| The material of Main beam | The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 10mm. |
| Platform plate | 3mmDiamond plate |
| Container Twist Locker | 12 pieces |
| Tire Type and quantity | 12R22.5 12units |
| Traction Pin | 90mm/50mm |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 2 Standard |
| Landing Gear | Chinese brand 28ton |
| Brake system | Dual Line braking system , optional ABS. |
| Brake air chamber | Two double and two single chamber, optional WABCO |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core standard Cable. | |
| Side Guard | According to customer's requirement |
| Painting | Color by customer's requirement |
| Packing | Polish with wax before shipping |
| Delivery way | Transfer to Tianjin/Shanghai/Qingdao |
Heavy Duty landing gears:
As per the capacity, there are 5ton 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.
As per the gearbox, there are both Gearbox inside and Gearbox outside type.
As per the operation, there are both Single-Side Operation and Double-Side Operation type.
As per the Sand Shoe, there are T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.
90# 3.5'' trailer welding king pin
We can provide several model with different specifications.
certification:ISO9001-2000
90# 3.5'' trailer bolt connecting king pin
1. specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load
ability and lower self weight.
2. high quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. high performance premiun non-asbestos brake linings, extend service life
4. easy for ABS installation
5. camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. new tight fit hub cap have O rings, high property for sealing
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs.
Computer-operated vents on the air springs, suspension sensors, and an on board air compressor allow the system
to maintain ride height and vary the suspension's ride characteristics.
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
