HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsTanks Trucks And Trailers

4 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

4 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport

4 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport
4 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport 4 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport 4 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport 4 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport 4 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport 4 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport

Large Image :  4 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport

Product Details:

Place of Origin: SUIZHOU, HUBEI, CHINA
Brand Name: CLW
Certification: ISO9001, CCC, BV, SGS
Model Number: CLW20220103

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiated
Packaging Details: Naked or waxed before shipment
Delivery Time: 30-35 days after receiving the deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Dimension: 13000*3000*1250mm Axle: FUWA, BPW, L1, Brand
Axle Loading: 13tons, Or 16tons. 20Tons Nos. Of Alxe: 3 Axle, 4 Axle, 5 Axle
Suspension: Front: Air Bag, Rear: Mechenical Suspension. Length: 13 Meters, Extendable To 16 Meters
Landing Gear: JOST Brand Loading Capacity: 60tons, 80tons, 60 Tons, 80 Tons.
Function: Construction Machinery, Timber Log Transport Product Name: Lowbed, Low Bed , Low Loader, Lowboy Trailer
Load: 50 60 80 100 Tons
High Light:

60 Tons Lowbed Semi Trailer

,

50 Tons Lowbed Semi Trailer

,

4 Axle Low Bed Semi Trailer

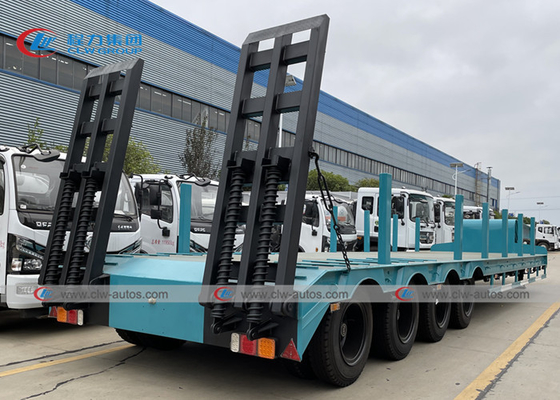

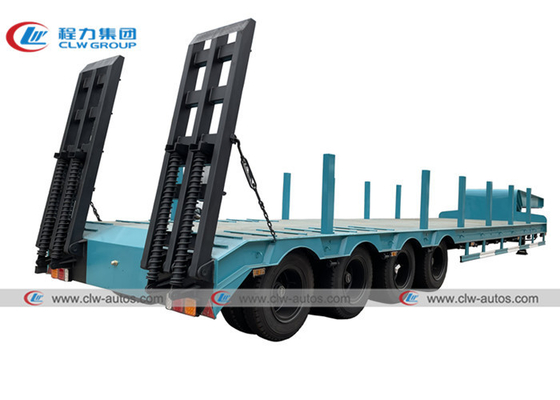

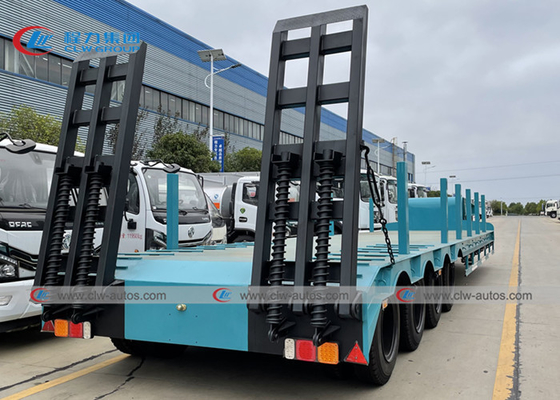

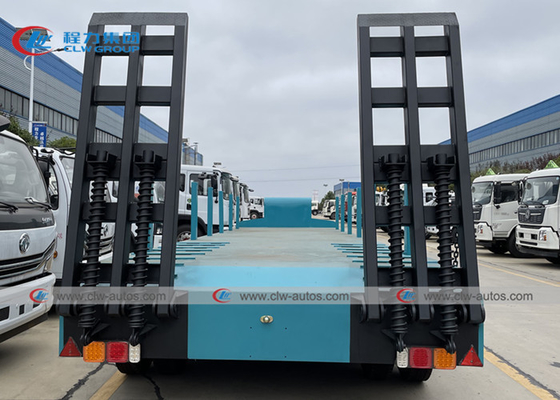

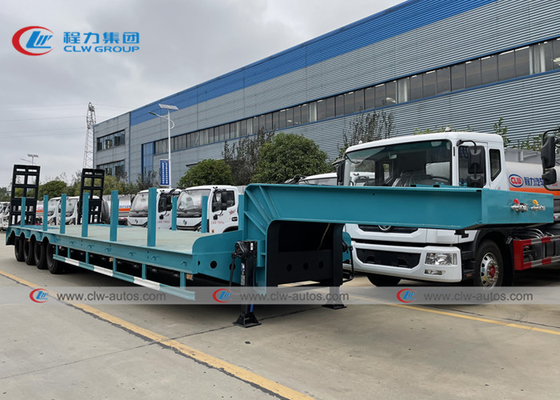

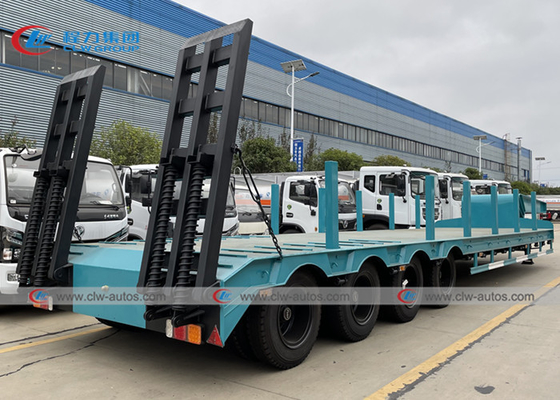

4 Axle 50Tons 60Tons Low Bed Loader Lowbed Semi Trailer For Lumber Transport




Description:
Low bed semi trailers are widely used for heavy duty goods transportation as its low working platform. There's enough upper loading space. Its low gravity makes the vehicle running safety. We CLW GROUP can design low bed trailer model according to your special goods transportation demands.

All the Low bed semi-trailer adopts famous brand as:
1. Axle: Famous brand axle support trailer durable and high attendance rate. FUWA brand, BPW brand optional
2. Chassis: select the best material support stronger beam and trailer chassis.
3. China best carton steel material Q234, Q345B, T700.
4.Tire: Famous brand tire and good quality support trailer running safety and smoothly for a variety of road conditions.
5. Tire Tubeless tire12R22.5 / Steel radial tire11.00R20 or 315/80r22.5 optional
6. King pin: Detachable type support fast and easy replace, JOST brand optional.
7. Suspension: Mechanical suspension / Air suspension optional
8. Emergency valve: Fast response, low failure support safety and protect tire durable. WABCO brand.

- Main beam material: Q345b
Good mechanical properties, high mild, good ductility and weldability, is mainly used as the low-pressure containers, tanks, vehicles, cranes, mining machinery, power plants, bridges, etc. under dynamic load configuration

-Assembly
The entire frame is positioned in a dedicated carriage assembly, welded, reasonable structure, high strength, beautiful appearance


Parameters for 4 axle Tri-axle 50Tons 60Tons low bed Loader Lowbed Semi Trailer for lumber transport:

3 Axle 50T-60T Low Bed Semi Trailer
Function Big machine and cargo transport
Overall dimension 13000*3000*1650mm
Working plate size 9000*3000mm*1650mm
Curb weight 9000kg
Loading weight 50000kg-60000kg
Main beam Carbon steel Q345B.The height 500 mm, upper plate 16mm,down plate 18mm,middle plate 10mm.
Side beam 16mm channel steel
Traction pin 2" (50mm) or 3.5''(90mm) optional
Land gear Standard 28ton
Axle 13ton * 3 axle Fuwa brand
suspension Mechanical suspension / Air suspension customized
Spring leaf 90mm*13mm*10pcs 10/10/10 leaf spring suspension
Tire Tubeless tire12R22.5 / Steel radial tire11.00R20 or 315/80r22.5
Tire quantity 12 units
Rim 9.00-22.5 12pcs
platform thickness 5mm Diamond plate
valve WABCO RE 6 relay valve
Brake Chamber T30/30+T30 6 brake chamber,one piece of 45L air tanks
Tool box 1 unit 1m*0.5m*0.5m
Spare wheel carrier 2 units
Marker lamp LED type
Voltage 24V
Receptacle 7ways (7 wire harness)
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
4 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport 04 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport 14 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport 24 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport 34 Axle 50 Tons 60 Tons Lowbed Semi Trailer For Lumber Transport 4

Landing Gear

Heavy Duty landing gears:
As per the capacity, there are 5ton 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.
As per the gearbox, there are both Gearbox inside and Gearbox outside type.
As per the operation, there are both Single-Side Operation and Double-Side Operation type.
As per the Sand Shoe, there are T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.

King Pin Plate

90# 3.5'' trailer welding king pin
We can provide several model with different specifications.
certification:ISO9001-2000
90# 3.5'' trailer bolt connecting king pin

Axle

1. specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. high quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. high performance premiun non-asbestos brake linings, extend service life
4. easy for ABS installation
5. camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. new tight fit hub cap have O rings, high property for sealing

Air Suspension

Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs. Computer-operated vents on the air springs, suspension sensors, and an on board air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.




Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment


FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
