Dimension: | 40ft, Or 45ft, 12.4 Meters Length | Axle: | FUWA, BPW, L1, HJ Brand |
---|---|---|---|
Axle Loading: | 13tons, Or 16tons, Or 20Tons | Nos. Of Alxe: | 3 Axle, 4 Axle, 5 Axle |
Suspension: | Mechanical Suspension Or Air Suspension | Length: | 12.4 Meters; 12.5 Meters |
Landing Gear: | JOST Brand | Loading Capacity: | 60tons, 50tons, 60 Tons, 50 Tons. 60MT, 50MT |
Deck Thickness: | 3mm, 5mm. Thickness Checker Plate | Application: | 2 * 20GP Container; 1 * 40HQ Container Loading |
High Light: | Flatbed Skeleton Trailer,45T Skeleton Trailer,45FT Skeletal Trailer |

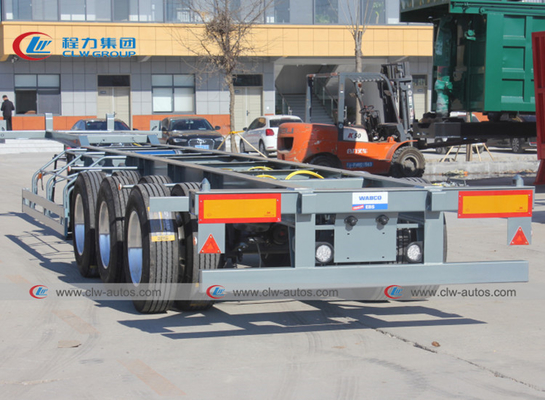

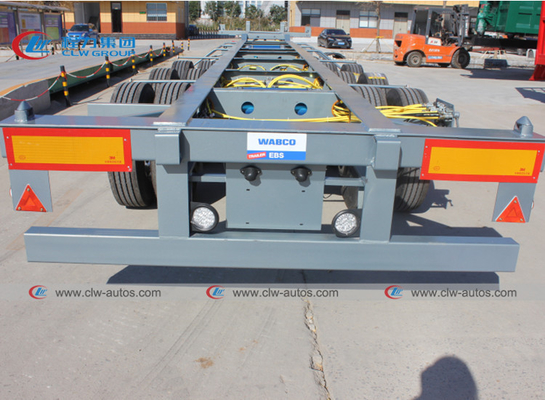

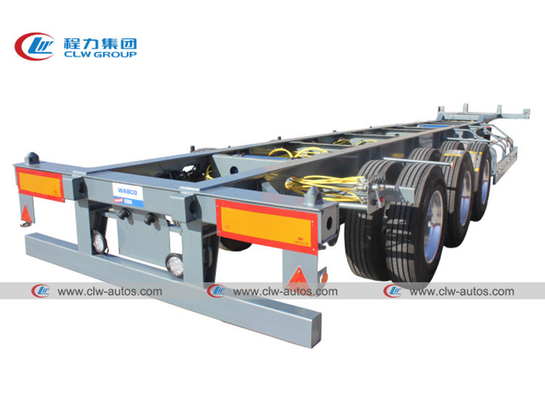

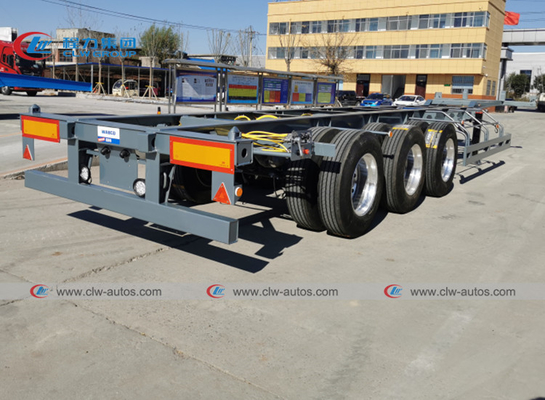

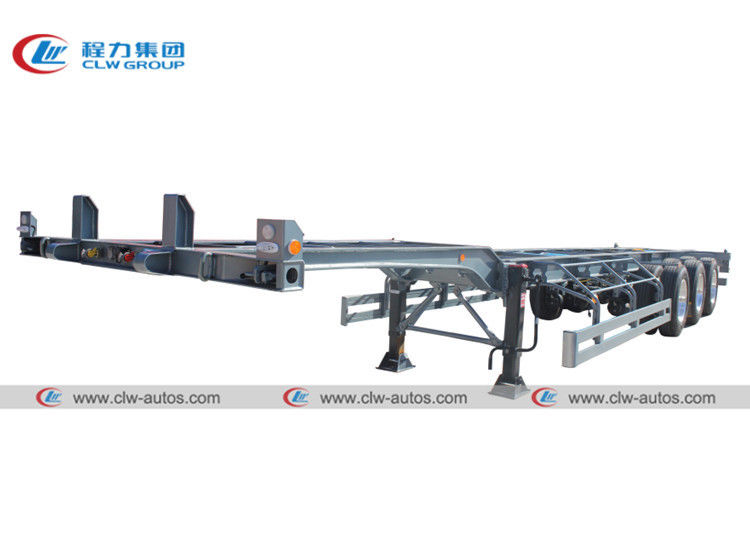

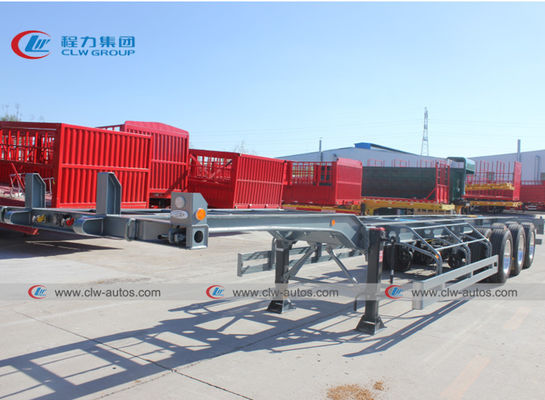

Japan Standard 40FT 45FT 3 Axle 45Tons Container loading Flatbed Skeletal Skeleton Trailer
Description:
Characteristics :
> Variety of Sizes - 20ft, 40ft, 45ft, 48ft, 53ft, etc, side wall height optional.
> Light Weight - Light tare weight with strong loading capacity.
> Perfect Welding - Automatic welding of main beam guarantee stability and durability.
> Modern Transportation Accessories - spare tire carriers, water tank, fuel tank, etc.
3 Axles 20/40FT Container Chassis Skeleton/Skeletal Semi Truck Trailer for sale Made in China from Chinese professional manufacturer
Light Tare Weight: Under the premise of the same weight of the box, it can load more goods, to achieve greater economic benefits for you.
Low Chasis: Adaptable to varieties of roads. But also the more important aspect .
safety! The carring surface is lowed, the center of gravity of the goods is reduced, and the vehicle runs more smoothly, especially in the case of high-speed turning or emergency, the risk can be effectively avoided.
Multifunction: This trailer has three ways to place the container.
1. Place a 20-foot container in the middle.
2. Place two 20-foot containers from front to back.
3. Place a 40-foot container from front to back. Meet your a variety of containers, transport more goods requirements.
Specification parameters for 40FT 45T Container Flatbed Skeleton Trailer:
Terms: | 3 Axles 20/40FT Container Chassis Skeleton/Skeletal Semi Truck Trailer |
Application: | Port/dock transportation |
Materila: | Q345/T700 |
Dump Style: | Non-self tipping |
Loading Capacity: | 40-60T |
Axles: | 3 Axles 13 T FUWA/BPW or 1/2/4Axles optional |
Length*Width*Height: | 12400X2550X1370.1400.1430.1450.1470.1500.1550.1600mm |
Main Beam: | Material: BS800 |
The height 450/500/550mm Upper plate 6/8/10/12mm Lower plate 10/12/14mm Middle plate 4/5/6mm | |
OEM/ODM: | Available |
Tire: | 11.00R20 12PR OR 12R22.5 12PR |
Suspension: | Mechanical/Air suspension |
Brake Valve: | 80 tons automatic brake valve |
Leaf Spring: | -4/4/4, or -10/10/10 |
Support Leg: | 28T Tongyi (double speed) |
King Pin: | JOST 2''(50#)/3.5''(90*) changeable |
Tool Box: | Steel/aluminum |
Above Information are Standard Spec. We could customize it according to your requirements. |
